PV roof hook for SPC-IK-13 selection of high quality SUS304 material, excellent hardness and toughness, quality assurance, rigorous workmanship,
smooth surface of the product without burr force uniform punching smooth, suitable for all types of asphalt shingle roof installation.
Flexible installation, bolt connection, fast and time-saving, can ensure the roof beauty.
PV roof hook for SPC-IK-13 using high-quality stainless steel 304 material seiko forging, in any harsh environment, can be used for a long time, the product is not easy to be limited by the environment;
Uniform force, good fastness, not easy to wear, can be used many times.

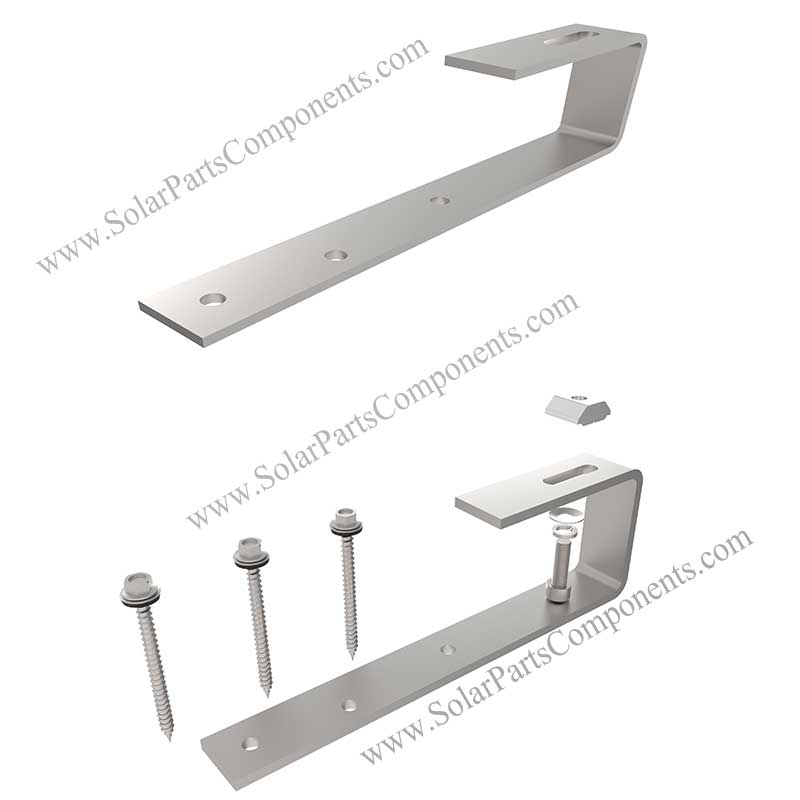

PV roof hook for SPC-IK-13 supplier have three round holes at the bottom, which are used for fixing the hook.
The upper handle and the middle handle of the hook adopt 80×80 specifications, and the upper handle has a 50mm adjustable range for the strip hole, which can be perfectly adapted to the H-type track.

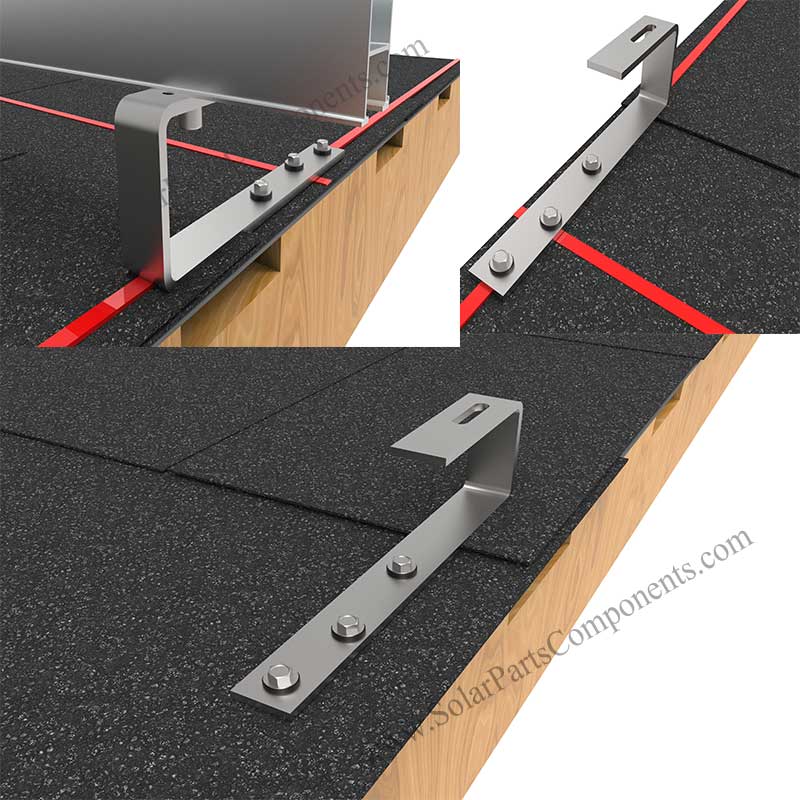

PV roof hook for SPC-IK-13 factory’s installation, only need to put the hook on the correct installation position above the asphalt shingle, fix the hook on the main beam with 3 ST6.3*80 wood screws, and apply sealant on the position of the wood screws to prevent rain leakage;
Then install the track on the No. 13 stainless steel hook with the M8*25 clamp bolt assembly.
Features:
- Thickening material;
- Durable and practical;
- One-stop procurement platform;
- Suitable for all asphalt tile roof installation.
SPC manufacturers have many years of solar module installation experience, strict selection of materials, to provide a variety of products for you to choose.
Specifications and models are complete in stock, can also be customized according to demand, fast delivery, large quantity, factory price, direct sales, normal delivery on the same day.
Our integrity, strength and product quality are widely recognized by the industry. Welcome friends from all walks of life to visit, guidance and business negotiations.
