Ground mount solar is like what it called solar panels are mounting on ground with different structures – standard type (IV type, W type, N type, etc.) and pole mounted type. Compared with solar roof mounting system, ground mount can install anywhere without limit. Having more free to choose an appropriate design, and DIY.

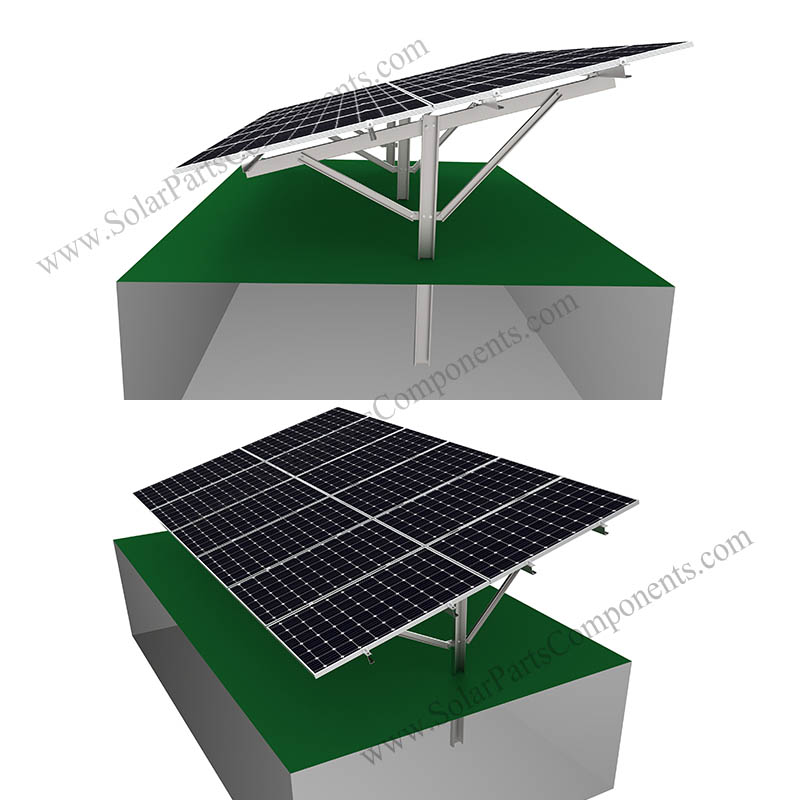

Solar Pole Ground Mount
This type of ground mount structure applies one pole to support a group solar panels, it is minimum space using but maximum efficiency. It is not only suitable for mini system in residential yard, can also be expanded for larger commercial project or public utilities.
Features Highlight
– Fast assembly, one pole based only, easier to install;
– Reliability, all C steel structure has stronger strength than other material;
– Cost saving, carbon steel is lower in cost but stable as well;
– Anti-rust, hot dip galvanized treatment on surface to ensure corrosion resistance;
– Space saving, one pole foundation requires less space.
| Pole Mounted Solar Panels | |
| Installation Site | Open field ground mount |
| Foundation | Ground screw |
| Mount tilt angle | 0-60 degree |
| Wind Speed | Up to 60m/s |
| Snow Load | Up to 1.4KN/㎡ |
| Treatment | Hot dip galvanized on surface over 80um |
| Accessories | Stainless steel fastening & anodized aluminum clamps |
| Warranty | 10 years |
| Duration | More than 25 years |

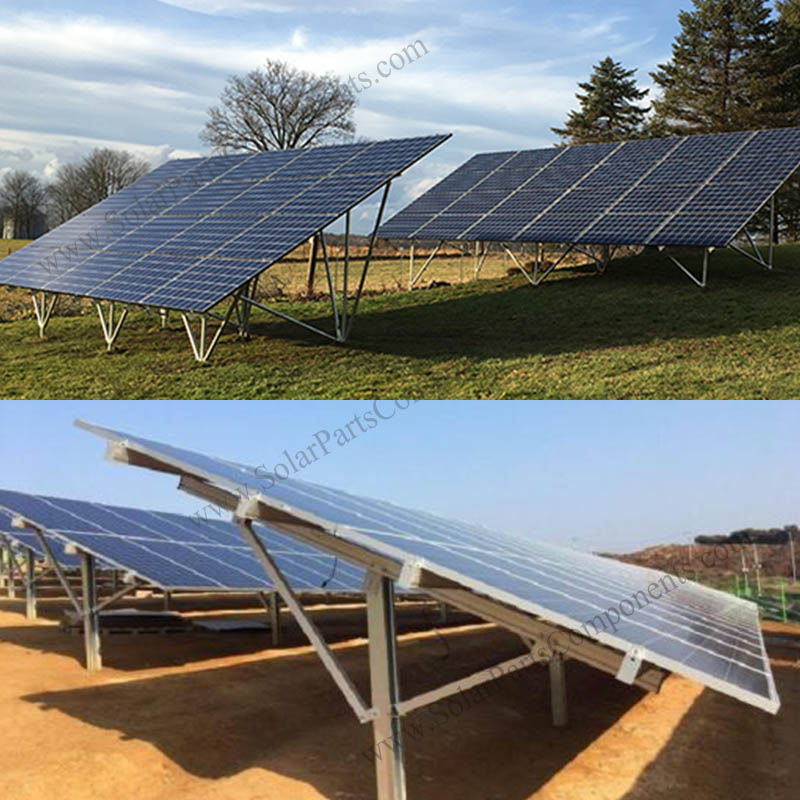

Ground Mount Vs Pole Mounted Solar
Standard ground mount solar including many types of structure, but they all have a same feature – 2 ground screws base + a complex shape of supporting bracket. That means you should dig several holes on the ground first while pole mounted solar requires one hole only. Even if it is concrete or ballasted base, same space will be asked for.
Generally, pole mounted solar is easier and faster to install than standard ground mount. It has much simple structure on the top to hold solar panels. This design extremely saves time and labor cost at construction site.
SPC provides pole mounted solar with C steel structure for your choice, more details please refer to https://www.solarpartscomponents.com/solar-ground-mount-racking-carbon-steel-q235
All solutions can be customized for your specific project, contact us to get it now!
