Tile Roof Hook for Solar Panels Features

Why choose this solar roof hook from SPC?

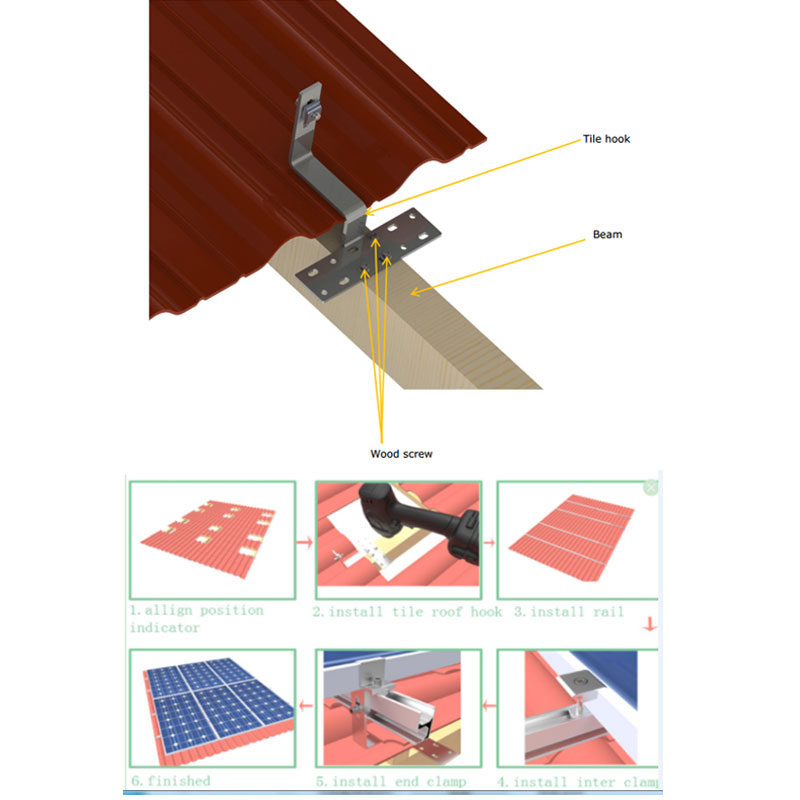

Solar mounting hook for panels save installation time, which will lower your labor cost directly. It only takes you 6 steps to install on your roof:

1. Align position indicator, Mark positions of all tile hooks;
2. Install tile roof hook, make sure all hooks are fixed on the beams;
3. Install rail horizontally / vertically;
4. Install inter clamp between two PV modules;
5. Install end clamp for each rows of solar panels;
6. Check all solar mounting components are firmly installed and finished;

Our factory manufactures solar roof hook directly,95% of the products is made by

automatic machine, and 5% (the weld part, details check the following photograph of point 3) is made artificially. The point is all the whole process of manufacture is in massive production. So, the product cost could be most effective.

According to the standard of certificate AS/NZS 1170, our engineer design solar mounting hook for panels professionally. Firstly, all the size is accurate confirmed by software, then module is opened accurately (and all the module will be carefully amended if any defect found). Once mold is confirmed, solar roof hook for panels will be arranged in massive production.

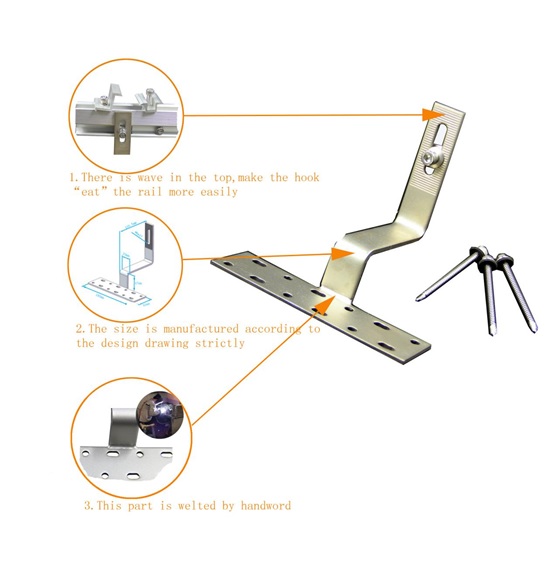

Feature of this Tile roof mounting system are as follows:

1. There is wave in the top, make the hook “eat” the rail more easily;
2. The size is manufactured according to the design drawing strictly;
3. This part is welted by handwork.

Lastly, we supply the whole set of solar roof hook for panel. Roof hook component list include:

1. aluminum hook 6005-T5
2. Aluminum adapter&M8X50mm SUS 304 bolt
3. M8x20 SUS 304 bolt washer

More details, pls check the website for tile roof mounting system: www.SolarPartsComponents.com.
