Solar Roof Mounting Systems
- Product Type: PV Mounting Systems for Rooftop
- Product Model:SPC-RF-CK08-F-W680
- Material: Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Portait or Landscape
- Application: Roofing
Product Description:
L foot bracket is very universal clamp which can be used to mount most of type of metal roofing.
The L-feet brackets connect rails to steel roofs, EPDM washer can prevent rain ingress and protect rooftop from rust.
Features of this L feet bracket PV Module racking system:
1. Easy / fast installation steps;
2. Clean and aesthetics looking after installation;
3. Tapping screw for L-foot for quick mounting;
4. SGS, TUV, ISO standard;
5. Anodized surface treatment, high quality and long lifespan;
6. Application: corrugated / trapezoidal / tin / asbestos roofs…
7. Silicone rubber pads for waterproof and tightness between L bracket and metal roof ridges;
Parts and Components for solar panel roof mounts with L foot brackets:
– high quality aluminum rails;
– L-Foot brackets;
– Splice which join two rails together;
– M6.3×8.0mm timber screws;
– Mid / End clamps;
– Rubber pads;
Installation steps for this solar roof mounting system:
(1) fasten wood screws on roof rafter with L bracket,
(2) fix alum rail and L foot bracket with bolt & nut;
(3) fix pv module with mid / end clamps;
L feet kit with different measurement, length, slot size, width can be customized.
SPC is professional for both residential and commercial solar panel mounting systems.
| Brief Descriptions: | |
| Solar Roof Mounting Systems – L Feet Bracket + Timber Screws | |
| Item type: | Solar Rooftop Mounts |
| Type: | SPC-RF-CK08-F-W680 |
| Installation Site: | Metal Roofing 0 °~60 ° |
| Profile Material: | Aluminum Alloy |
| Fasten Parts: | Stainless Steel / Aluminum T Sliding Nut |
| Color: | Anodized Silvery |
| Wind Load: | 60 m / s |
| Snow Load: | 1.4 KN / M2 |
| PV Modules: | Framed, Frameless |
| Module Orientation: | Portrait and Landscape |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag+inner box+Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
L Feet Bracket Systems
Metal roof mounting system (L foot)

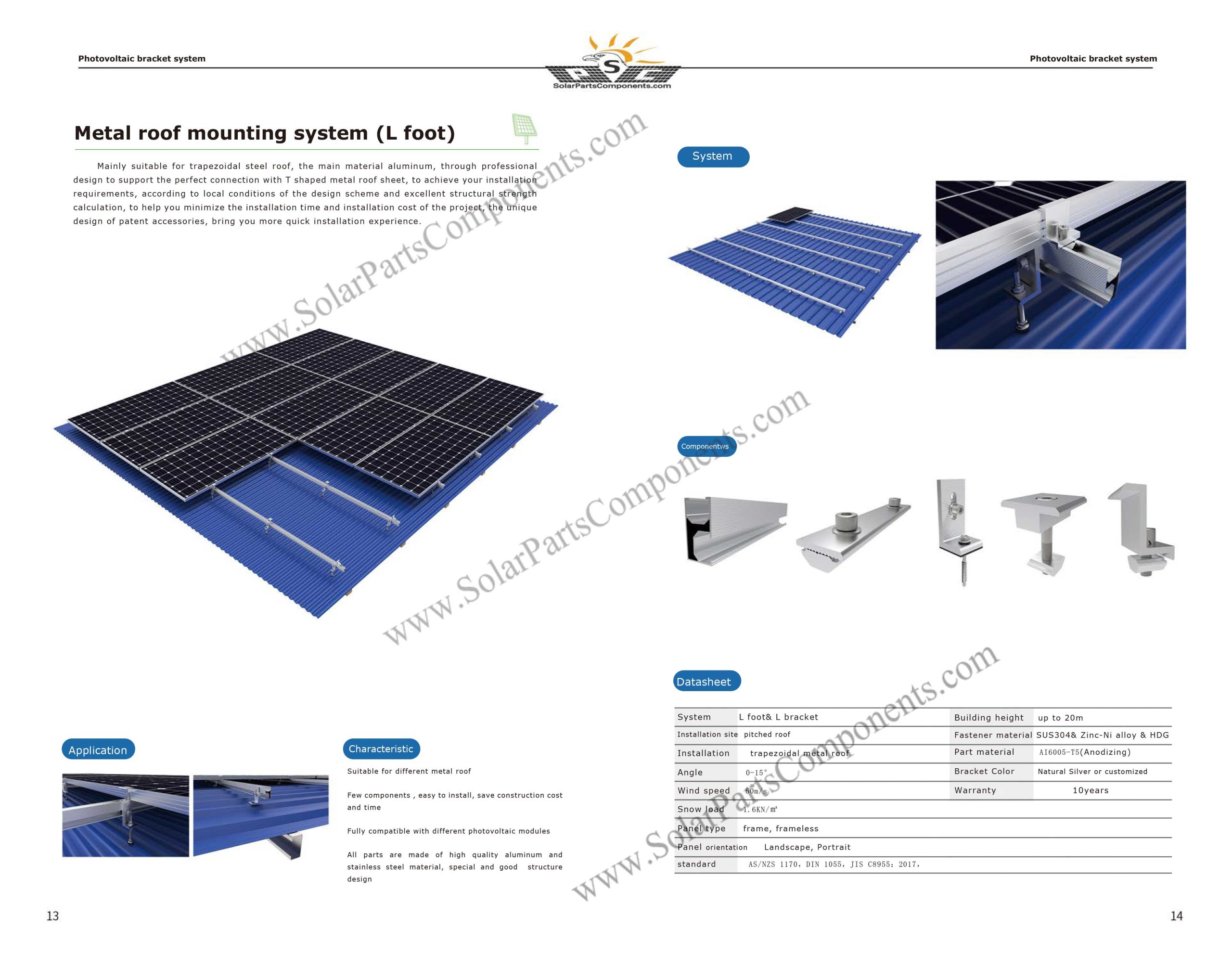

Mainly suitable for trapezoidal steel roof,the main material aluminum,through professional
Design to support the perfect connection with T shaped metal roof sheet, to achieve your installation requirements, according to local conditions of the design scheme and excellent structural strength calculation, to help you minimize the installation time and installation cost of the project, the unique design of patent accessories, bring you more quick installation experience.
Characteristic
Suitable for different metal roof.
Few components, easy to install, save construction cost and time.
Fully compatible with different photovoltaic modules.
All parts are made of high quality aluminum and stainless steel material, special and good structure design.
Metal roof mounting system (L foot)
L feet bracket for solar metal roof mounting system
The use of L feet is suitable for trapezoidal and corrugated metal roofs, which can be installed efficiently and quickly, saving time.
.More details kindly check >>>
