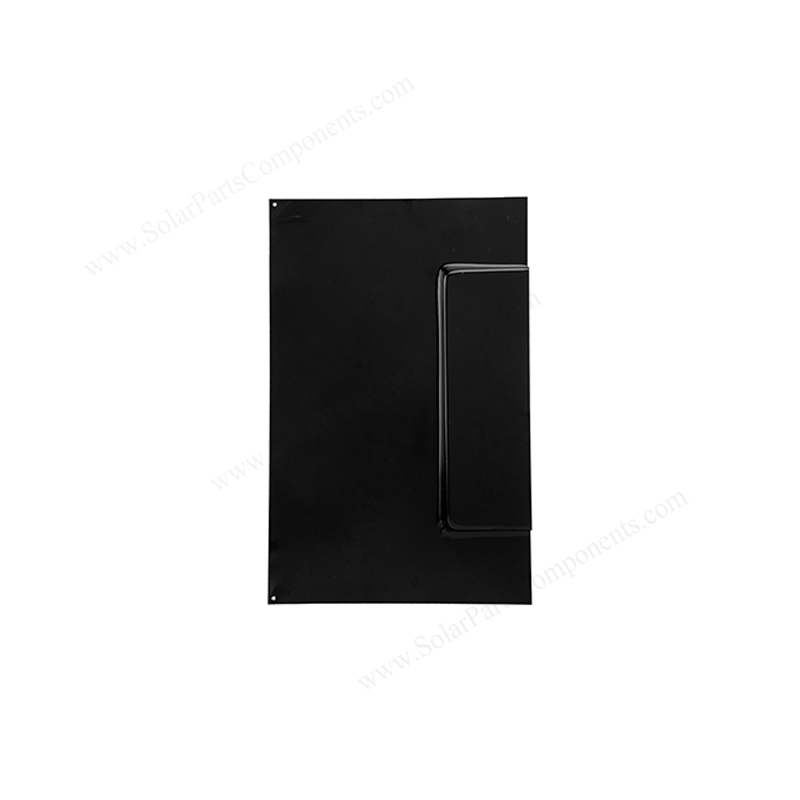

Solar roof mounting flashing for curved tiles
- Product Type:Solar roof mounting flashing for curved tiles
- Product Model:Solar-roof-flashing-for-curved-tiles
- Material: Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Portait or Landscape
- Application: Roof
Product Description :

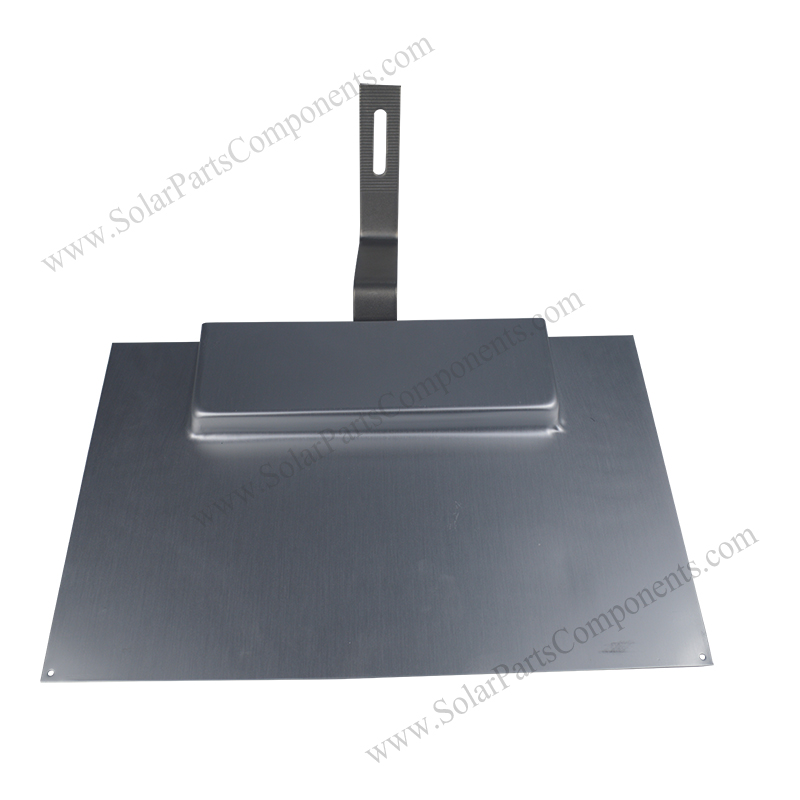

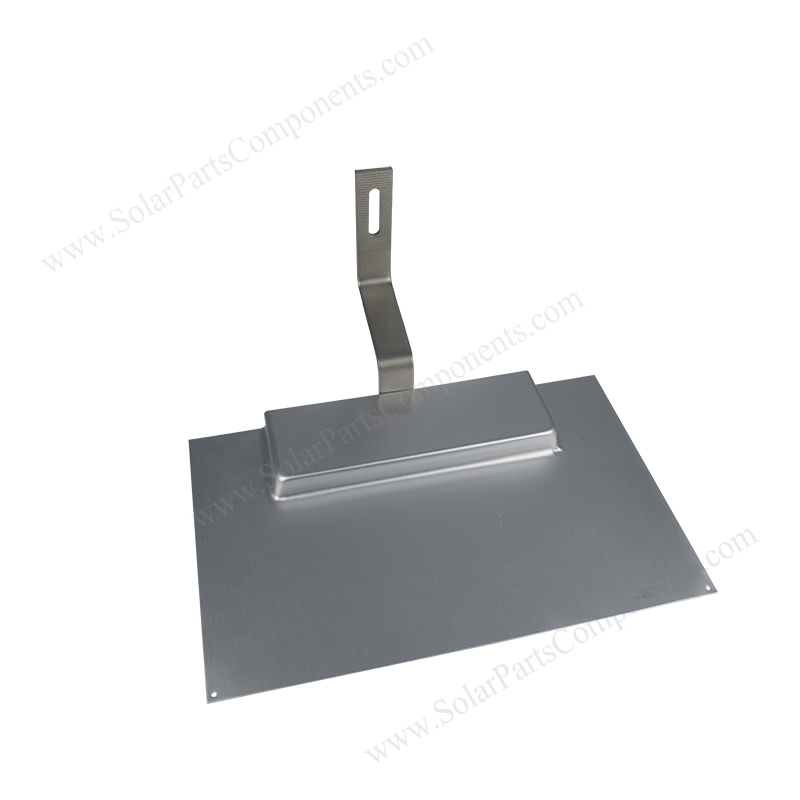

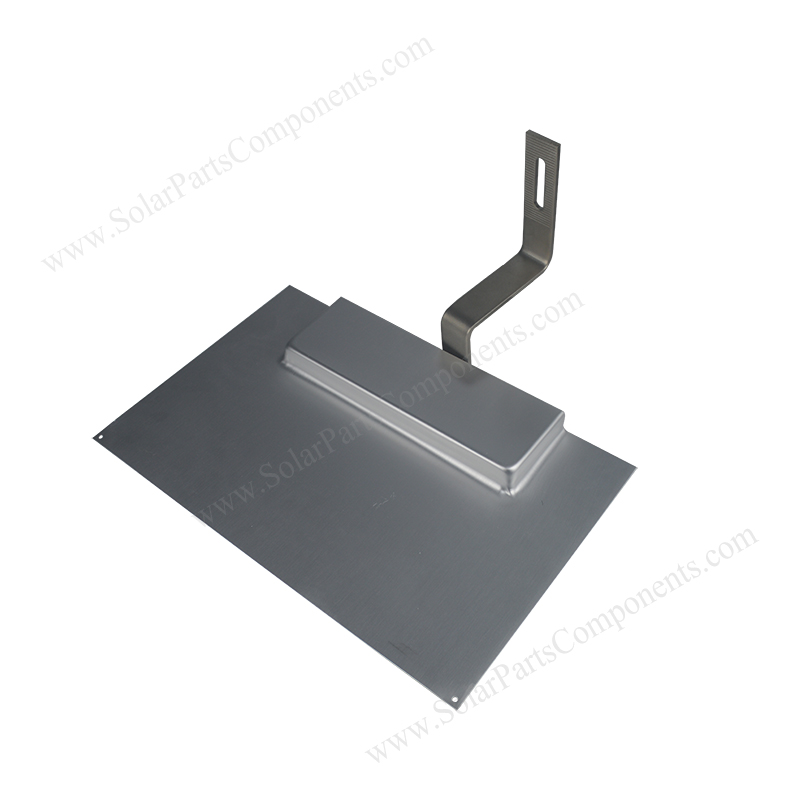

Solar roof flashing for curved tiles is designed for waterproofing and is used in conjunction with the roof hook.
It is an ideal kit for roof installation systems.
The whole process does not need other parts, just align the water baffle with the hook base and fix it with stainless steel fasteners.
Fewer steps, quick installation and good waterproof effect.
The solar photovoltaic panel roof flashing produced by SPC has good anti-corrosion performance and good anti-seepage performance.
Advantages of this solar roof mounted flashing:
1. Simple and lightweight
2. Excellent waterproof performance
3. Good corrosion performance
4. Good anti-seepage performance
Installation Instruction for solar roof flashing for curved tiles:
1. Remove the tiles from the area in which you will be installing.
2. Locate and mark the rafters.
3. Place the Hook and pre-drilled two holes with the 3/16”Drill Bit.
4. Remove the Hook, clear the debris, and fill the pre-drilled holes with
5. Place and mount the Hook using the Solar Screws.
6.Align the flashing with the hook base and fix it with stainless steel fasteners
We are a professional manufacturer of solar roof mounted flashing, we carry more different type of solar mounting flashing to meet different roof types, welcome to contact us for more details of solar flashing or other solar roof mounting accessories, such as: roof hooks, L foot, clamps… Factory price, good quality and service. Welcome to inquire or visit our website: www.SolarPartsComponents.com
|Item type:||Solar tile roof flashing plate #06|
|Installation Site:||Tile roof|
|Profile Material:||Anodized aluminum6005-T5|
|Fasten Parts:||Stainless Steel A2-70|
|Color:||Silvery or according to customer requirements|
|PV Modules:||Framed, Frameless|
|Module Orientation:||Portrait and Landscape|
|Designed Lifespan||25 years|
|Unit size:||355.6×228.6x22mm[2 3/4”x2 1/4”x 4”]|
|Unit weight:||235 (g)/0.52 [lb] /pcs|
How to choose solar flashing plate?

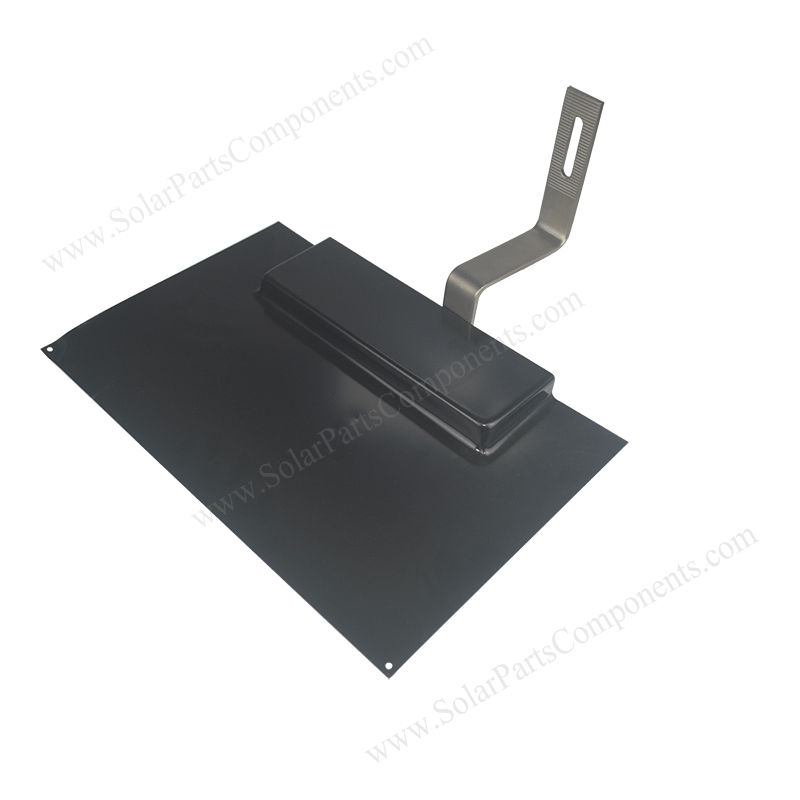

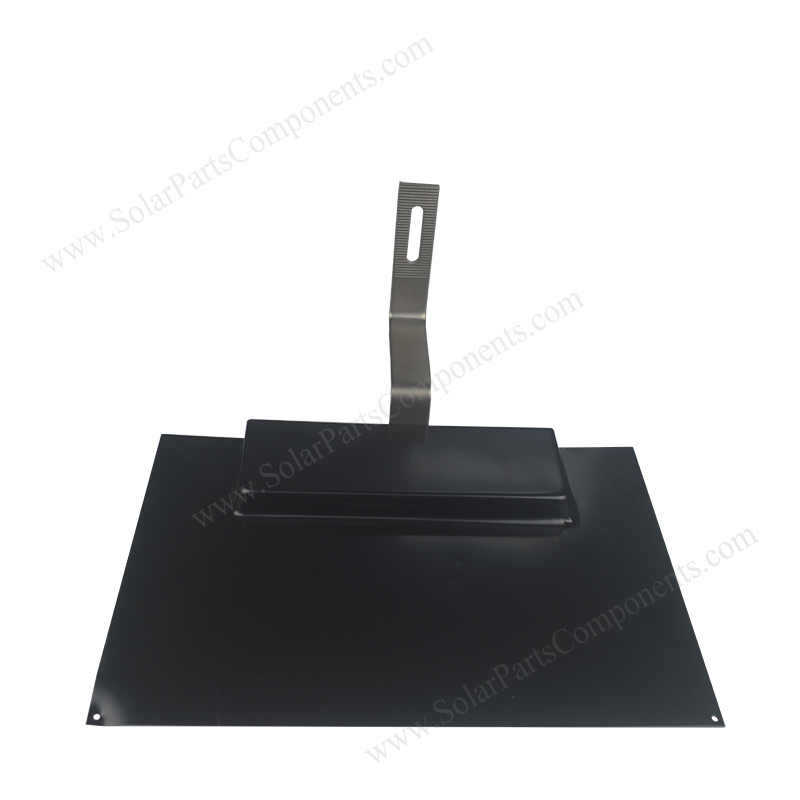

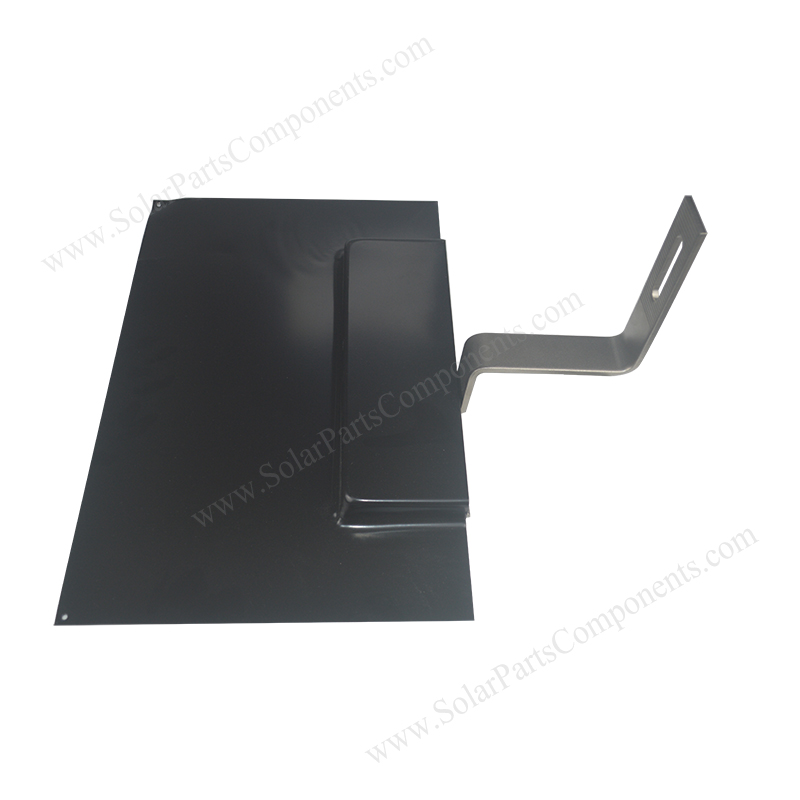

SPC has a variety styles of solar flashing plates, 2 colors for choice,

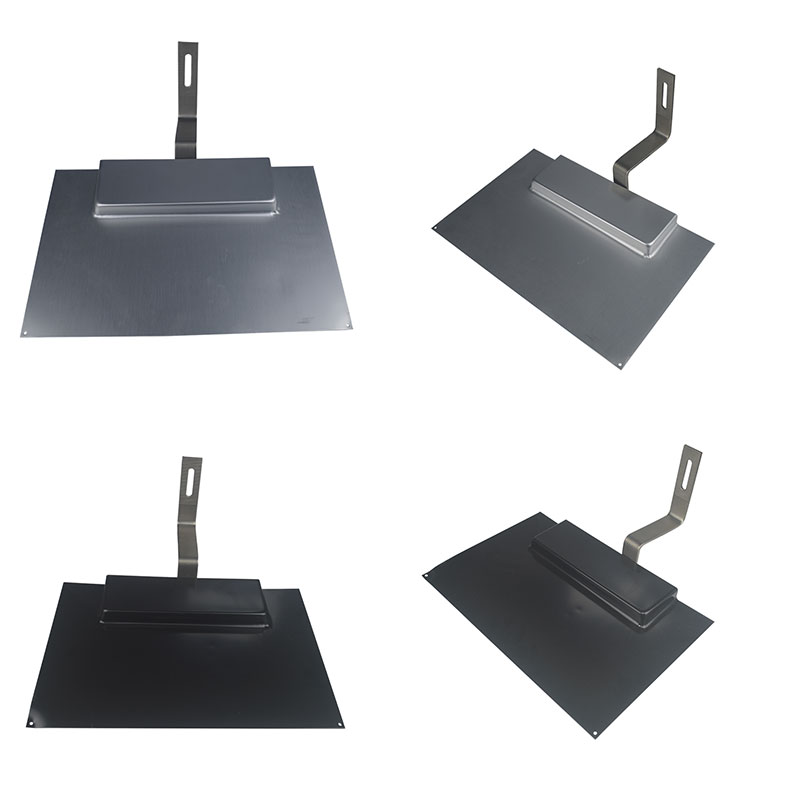

solar roof racking flashing for curved tiles
solar roof mounting flashing for curved tiles is designed to be used in conjunction with the roof hook. Provides a quick, simple and versatile method to install waterproof panels on the roof. No trouble, time-consuming tile grinding or cutting, just align the water baffle with the hook seat and fix it with stainless steel fasteners. It is an ideal kit for roof installation systems.
- No time-consuming, no sanding or cutting tiles
- Suitable for curved, Roman tile profiles
- The best practice of roof hook standard equipped with waterproof board;
- In line with national standards
- 25 year warranty
solar roof mounting flashing for curved tiles
solar roof mounting flashing for curved tiles are an efficient、waterproof and lightweight accessory, saves installation time.
Good choice for solar roof flashing waterproof

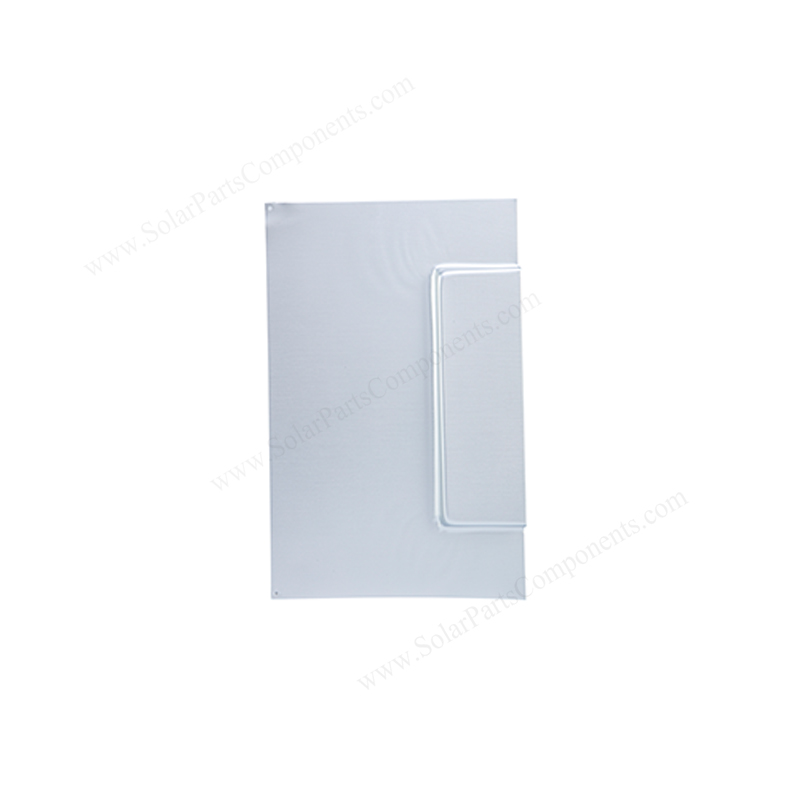

Solar roof flashing is an aluminum kind of plate for waterproof after PV module installation on rooftops .
