High-Strength Solar Panel Rail: H-Type Mounting Solution for Stable PV Installations

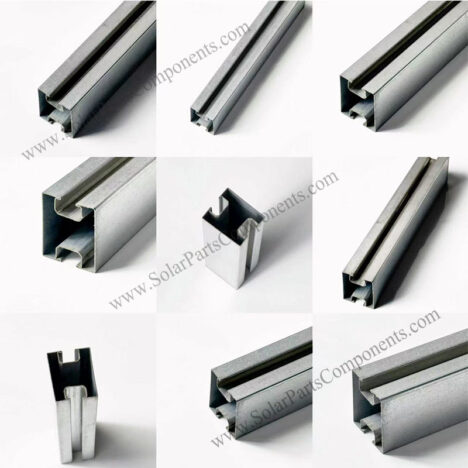

What Is an H-Type Solar Panel Rail?

A solar panel rail (also known as a PV panel mounting rail) is a linear structural component designed to support and fasten solar panels to rooftops, ground-mounted frames, or carport structures. Our H-type solar panel rail derives its name from its cross-sectional shape, which resembles the letter “H”—a design engineered for maximum strength-to-weight ratio. Crafted from high-grade aluminum alloy (6063-T5, the industry-preferred material), this solar mounting rail system balances lightweight portability with heavy-duty load-bearing capacity, making it suitable for diverse installation scenarios.

Unlike generic mounting rails, our H-type solar panel rail is precision-manufactured .It integrates seamlessly with clamps, end caps, mid-clamps, and other solar mounting accessories, creating a cohesive system that simplifies installation and minimizes maintenance needs over the 25+ year lifespan of a typical PV system.

Key Advantages

When selecting a solar panel rail, performance, compatibility, and cost-efficiency are non-negotiable.Our H-type design addresses these critical needs with the following standout benefits:

1.Superior Structural Strength & Load Capacity

The H-shaped cross-section of our solar panel rail is optimized for torsional rigidity and weight distribution.

2.Universal Compatibility

Our solar panel rail is designed to work with all standard solar panel sizes  and thicknesses.It is compatible with both framed and frameless panels, as well as various mounting configurations (roof-mounted, ground-mounted, ballasted, or penetrative).This versatility eliminates the need for custom rails for different projects, reducing inventory costs for installers and ensuring a seamless fit for any PV system design.

 3.Easy Installation & Time Savings

Time is money in solar installation—and our H-type solar panel rail is engineered for efficiency.The rail features pre-drilled holes and a slot design that allows for quick adjustment of panel spacing and alignment.Installers can easily attach clamps and fasteners without specialized tools, cutting down on labor time by up to 30% compared to traditional mounting rails.Additionally, the lightweight aluminum design reduces on-site handling effort, minimizing the risk of injury and speeding up project completion.

4.Weather Resistance & Longevity

Solar panel rails are exposed to the elements 24/7—so durability is non-negotiable.

5.Cost-Effective & Sustainable

While our H-type solar panel rail delivers premium performance, it remains cost-competitive thanks to efficient manufacturing processes and material optimization.

Applications

Our solar panel rail is versatile enough to meet the needs of any solar installation project, including:

Residential Rooftops: Perfect for sloped or flat roofs (asphalt shingles, metal, tile, or concrete), the rail’s lightweight design minimizes roof load while providing secure panel mounting.

Commercial & Industrial Projects: Ideal for large-scale rooftop solar farms, ground-mounted PV plants, and solar carports.The heavy-duty load capacity supports high-density panel layouts, maximizing energy output per square meter.

Utility-Scale Solar Installations: Engineered to handle the demands of utility-scale projects, the rail’s durability and compatibility make it a reliable choice for long-term energy production.

Coastal & Harsh Environments: The corrosion-resistant anodized finish ensures the rail performs reliably in saltwater, high-humidity, or extreme temperature conditions.

Conclusion

The solar panel rail is the foundation of a reliable, high-performance solar system—and our H-type mounting rail sets the benchmark for strength, compatibility, and efficiency.       Whether you’re installing a small residential PV system or a large-scale commercial solar farm, our solar panel rail delivers the stability, durability, and ease of use that modern solar projects demand.

Invest in a solar mounting rail system that stands the test of time.Contact [Your Company Name] today to learn more about our H-type solar panel rail, request a quote, or speak with our technical team about your project needs.Let’s build a more sustainable future—one reliable solar installation at a time.
