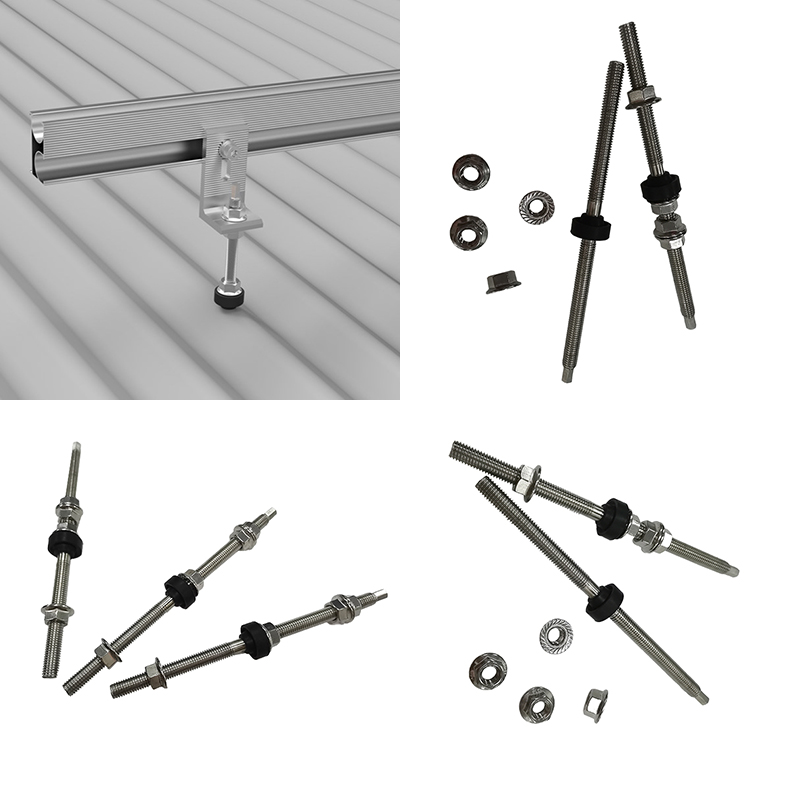

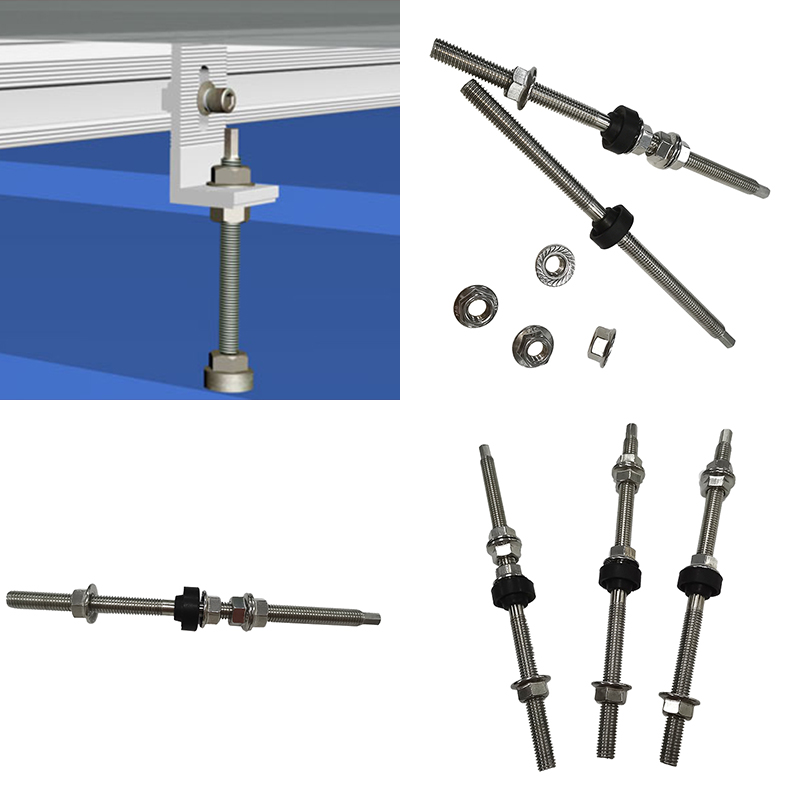

Solar hanger bolts for mounting system is an efficient new roof solution, suitable for installation of trapezoidal/zinc/corrugated/sandwich metal roof profiles Although light in weight, it is made of high-quality stainless steel and can withstand wind and snow loads. Provide multiple options to suit different spans and materials of roof spans and structures.
| Item No： | SPC-FA-HP020 |
| Item type: | Solar Panel Roof Hanger Bolts |
| Installation Site : | Home / Indurstrial / Commercial |
| Installation Angle : | 0° ~ 75° |
| Profile Material : | SUS 304 Stainless Steel + EPDM |
| Fasten Parts : | A2 Stainless Steel Bolts , L foot |
| Color: | Silvery or according to customer requirements |
| PV Modules: | Framed, Frameless |
| Module Orientation: | Portait and Landscape |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
We provide lengths of 200, 250, 300 and sizes of M8, M10, M12 for your choice. The size of the hanger bolt is selected according to the required strength, in order to match the mounting system.
The material of SPC solar panel hanger bolt is stainless steel SUS 304, our hanger bolt can be pre-assembled into the listed parts, these parts include: 1 hook bolt, 4lock nuts with shallow light, 1 washer, 1 SUS 304 Long slot board, EPDM node…
Advantages:
1. High quality and high material;
2. Competitive price;
3. Factory cooperation, prompt delivery;
4. Technical support;
5. Provide material and strength test reports;
6.OEM, ODM accepted
It is important that each roof has its own specific requirements, and our stainless steel solar hanger bolt can be used on most metal roofs. The fastener is specially designed for easy and quick installation. Form your own internal threads to provide a connection without tolerances in the substructure. Install and fix the adapter plate or L-shaped foot used to fix the rail or rack system through lock nuts and washers.
Our installation steps are simple and fast, reliable and firm.
The installation steps are as follows.
(1) Pre-drilled holes in C-shaped steel beams;
(2) Screw on the lug bolts, the EPDM seal should press the roof surface slightly;
(3) Adjust the adapter plate to a suitable height, and then tighten the flange nut;
(4) Install aluminum rails and rail joints;
(5) Install the middle/end clamp;
Solar hanger bolt is the perfect match for our photovoltaic mounting system kit s. For a solar attachment solution that is both economical and easy to use, choose from www.solarpartscomponents.com.
