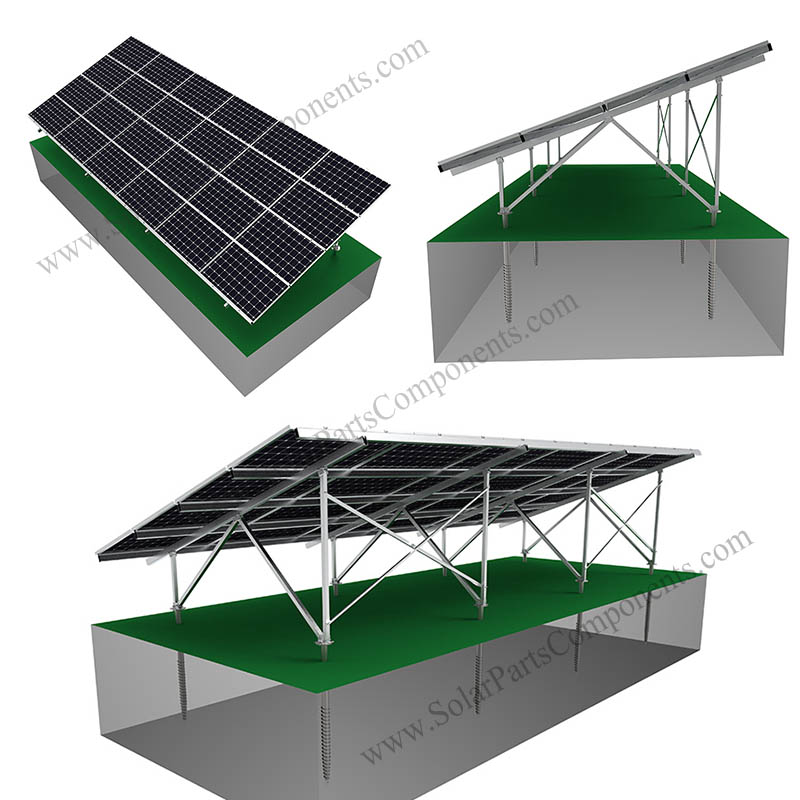

Solar Panel Ground Array – W type(SPC-GA-4H-W) is composed of all aluminum profiles. Ground screw foundation and W bracket combine to a most stable structure to support solar panels. It can be applied for large scale power station or public facilities. Aluminum structure is commonly the first option of many European and American countries, W type is among them.
Features Highlight
– Strong reliable, ground screw base + W shape bracket is the guarantee design of stability;
– Suitable for most topographies, especially heavy snow area;
– Anti-corrosive, made from anodized aluminum;
– Fast installation, maximum pre-assembly before delivery, no cutting required again;
– High compatibility, angle and foundation can adjust according to local conditions;
– All aluminum material structure, beautiful and simple appearance.
Solar Ground Array Mounting |
|
Item No. | SPC-GA-4H-W |
Material | Aluminum |
Treatment | Anodized 10μm on surface |
Installation Site | Open field, or a slop |
Fasteners | A2 stainless steel bolts, aluminum clamps and nuts |
Color | Silver or customized |
Solar Module | Framed or frameless |
Module Orientation | Portrait or landscape |
Wind Speed | 60m/s |
Snow Load | 1.4KN/㎡ |
Warranty | 10 years |
Service Life | More than 25 years |

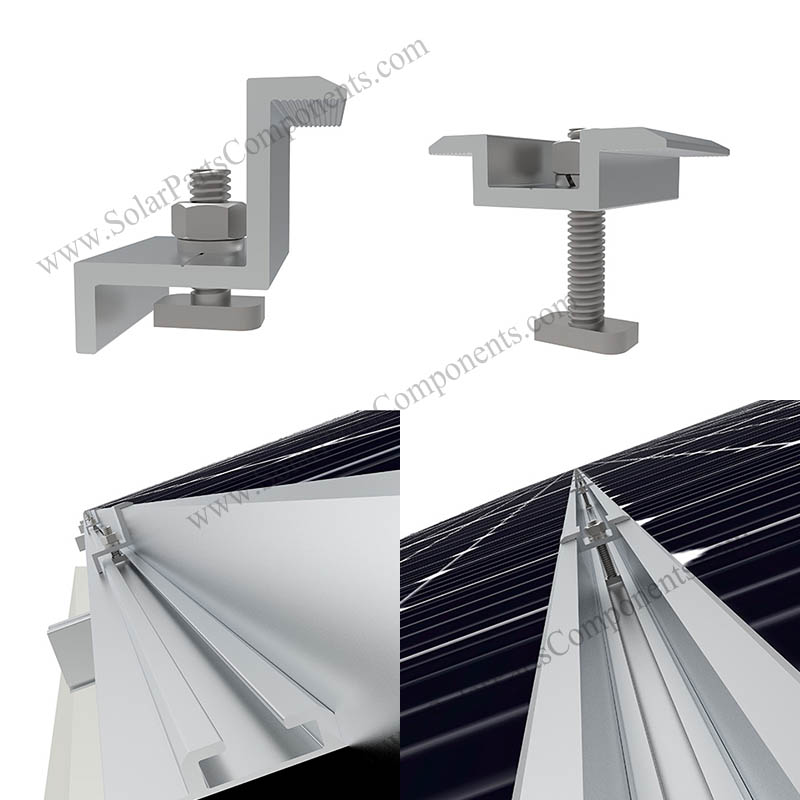

Solar Ground Mounting Aluminum Rail is made of high quality AL6005-T5, which has been anodized 10μm thick treatment on surface. So are aluminum mid clamps and end clamps. Each details and components were accurately designed to ensure longer durability. With strong weather resistance, no worried about the solar array being corroded under bad conditions.
Otherwise, solar panel ground array W type can customize tilt angle from 0-60 degrees according to geographical environment. Ground screw foundation can also be changed to concrete base if lands required.
