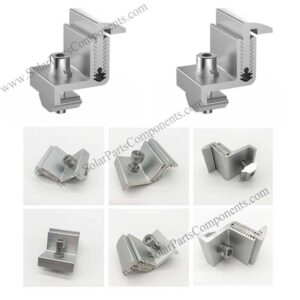

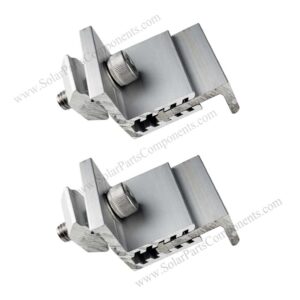

What Are Solar panel end clamps?
Solar panel end clamps are essential components in photovoltaic (PV) mounting systems, designed to securely fasten solar panels at the edges of the mounting rails. They ensure panels remain firmly in place under various weather conditions—wind, snow, and thermal expansion—while maintaining optimal alignment.
Typically made from high-strength anodized aluminum and stainless steel bolts, end clamps offer long-lasting corrosion resistance and mechanical stability. They are compatible with framed solar modules of various thicknesses, usually adjustable from 30 mm to 50 mm.
Why End Clamps Are Critical for Solar Panel Systems
- Structural Safety – Prevent panels from shifting or detaching during storms or strong winds.
- Electrical Performance – Maintain correct panel alignment, minimizing microcracks that reduce output.
- Easy Installation – Quick to install and remove for maintenance or panel replacement.
- Cost Efficiency – Reusable and durable, lowering long-term operation and maintenance costs.
By securing the panels on both ends, end clamps work together with solar panel mid clamps to create a stable and reliable PV array structure.
How to Choose the Right Solar Panel End Clamps
When selecting end clamps, consider the following factors:
- Module Frame Thickness
- Measure the exact thickness of your panel frames and choose clamps with compatible adjustment ranges.
- Material Quality
- Opt for anodized aluminum (AL6005-T5) or stainless steel (SUS304) for superior strength and anti-corrosion performance.
- Mounting Rail Compatibility
- Ensure the clamp profile matches your mounting rails to avoid mechanical stress.
- Certification & Standards
- Look for products compliant with International Electrotechnical Commission (lEC) and Underwriters Laboratories (UL) standards to ensure safety and durability.
- Ease of Installation
- Pre-assembled sets with bolts and nuts can significantly reduce on-site installation time.
Installation Tips
- Position clamps at the very edges of each panel to evenly distribute mechanical load.
- Tighten to the recommended torque (usually 8–12 Nm) to avoid frame damage or loosening.
- Use anti-seize lubricant on stainless steel bolts to prevent galling during tightening.
- Check torque regularly during maintenance visits to ensure long-term stability.
FAQ
Q1: What is the difference between solar panel end clamps and mid clamps?
A: End clamps secure panels at the outer edges, while mid clamps sit between two panels to hold them together on the same rail.
Q2: Can end clamps be reused?
A: Yes, quality end clamps are reusable and can be removed and reinstalled without damage.
Q3: Are end clamps universal for all panel sizes?
A: No, they must match the panel frame thickness. Many end clamps are adjustable to fit common sizes like 30 mm, 35 mm, 40 mm, and 50 mm.
Q4: Do I need special tools to install end clamps?
A: Only standard wrenches or torque tools are required, making installation fast and simple.
Conclusion
Solar panel end clamps may be small, but they play a crucial role in ensuring the safety, performance, and longevity of any PV system. By selecting high-quality materials, ensuring proper sizing, and following correct installation practices, you can build a solar array that withstands harsh environments while delivering clean energy for decades.
If you are sourcing solar panel mounting accessories, always choose reliable manufacturers that offer certified, durable, and easy-to-install end clamp solutions—this small decision can make a big difference in your system’s success.
