Solar Mounting Components – Solar Grounding Clips A
- Product Type: Solar Panel Mounting Systems Hardware
- Product Model:Solar-Grounding-Clips-PV-Ground-Plates-A
- Material: Aluminium, Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Solar Earthing Grounded
Product Description :

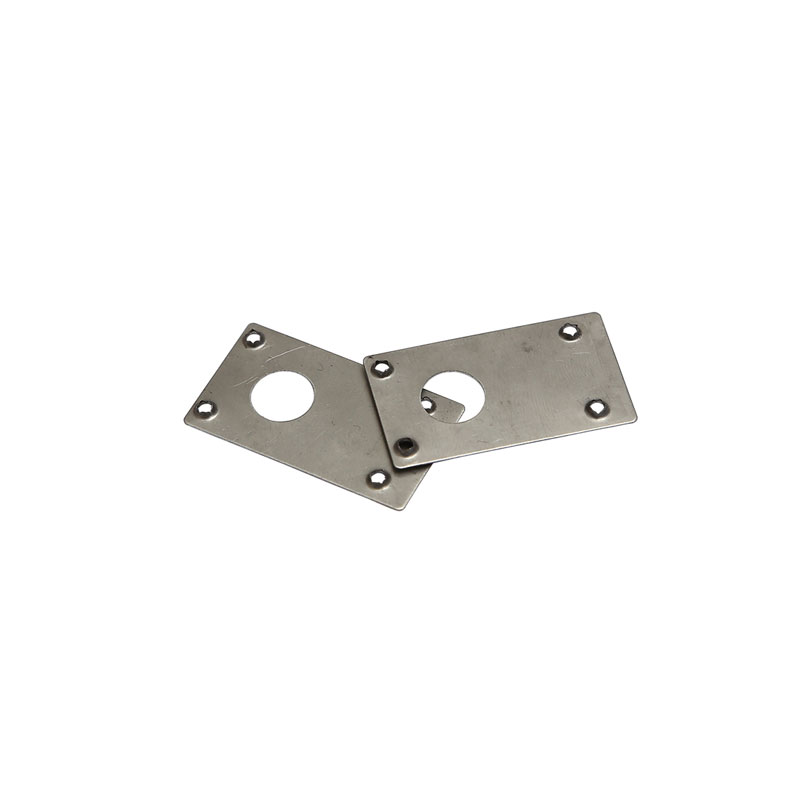

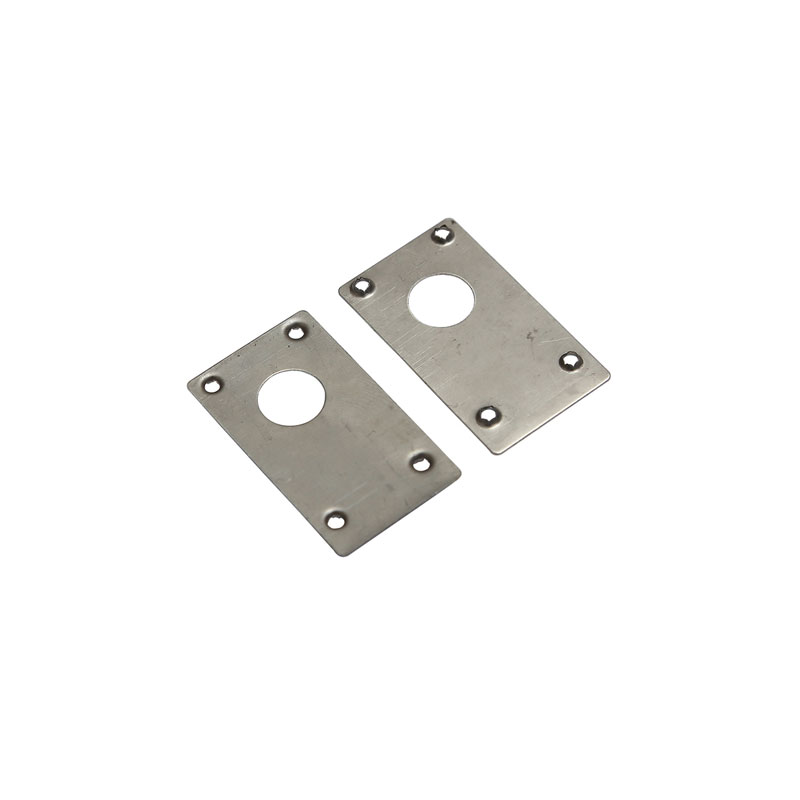

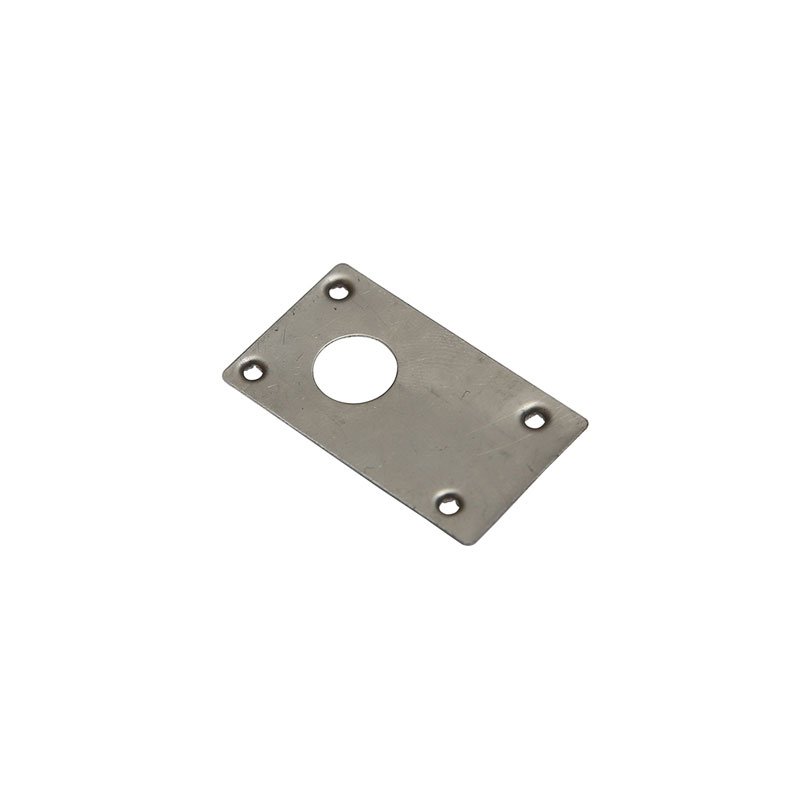

This solar grounding clips model A is used to connect solar module, aluminum rail to the earth.
Guarantee whole solar system is grounded and safe .
The grounding systems include : PV grounding clips , grounding lug and copper wires.
Our serrated solar panel grounding clips can penetrate galvanized / anodized alum rails, low resistance for conducting electric well.
Well bonded PV panels modules to mounting systems .
Stainless steel teeth of solar ground washer pierce into alum rails tightly, don't need to scratch off aluminum coating and using star washers.
Advantages
- Good electric conduction for PV panel earthing plate ;
- Anti-corrosive with 304 stainless steel matrial ;
- Strong and well-bonded solar grounding washer after installation ;
- No running grouding wire needed, save time ;
- Reliable and safe with UL467 requirements for our solar earthing plates;
Material of Solar PV grounding plates : stainless steel SUS 304 .
| Brief Descriptions : | |
| Solar Grounding Clips Model A for solar earthing kits | |
| Item type: | Solar Mounting Components |
| Technical Parameters : | |
| Installation Site : | solar panel mounting |
| Profile Material : | SUS 304 Steel |
| Color : | zinc coating |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN/M2 |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed LifeSpan | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
Drawing sizes for solar mounting grounding clips 4A ?
Size & drawing for grounding clips model 4A

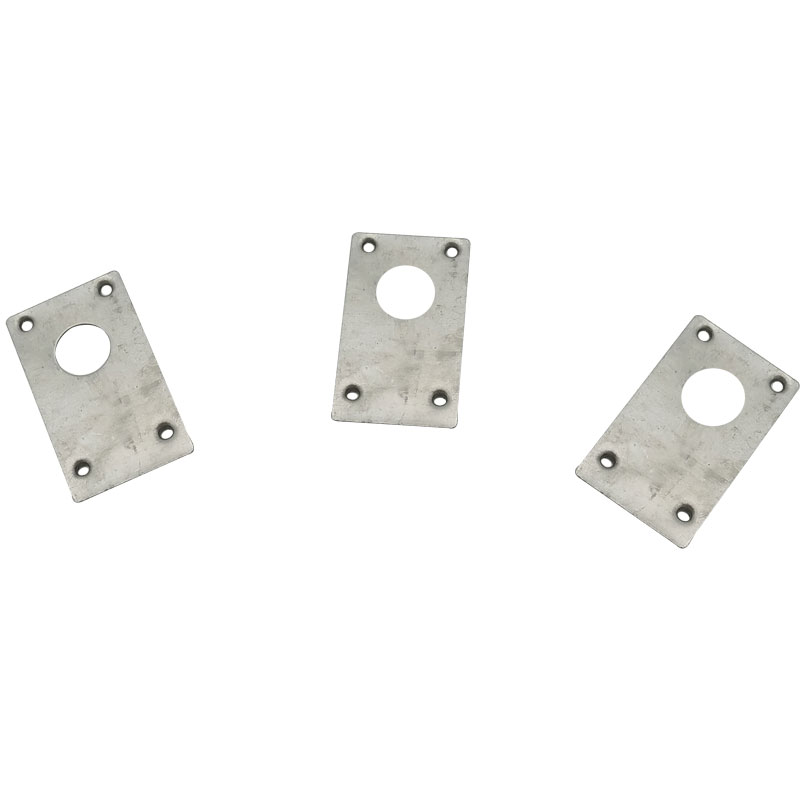

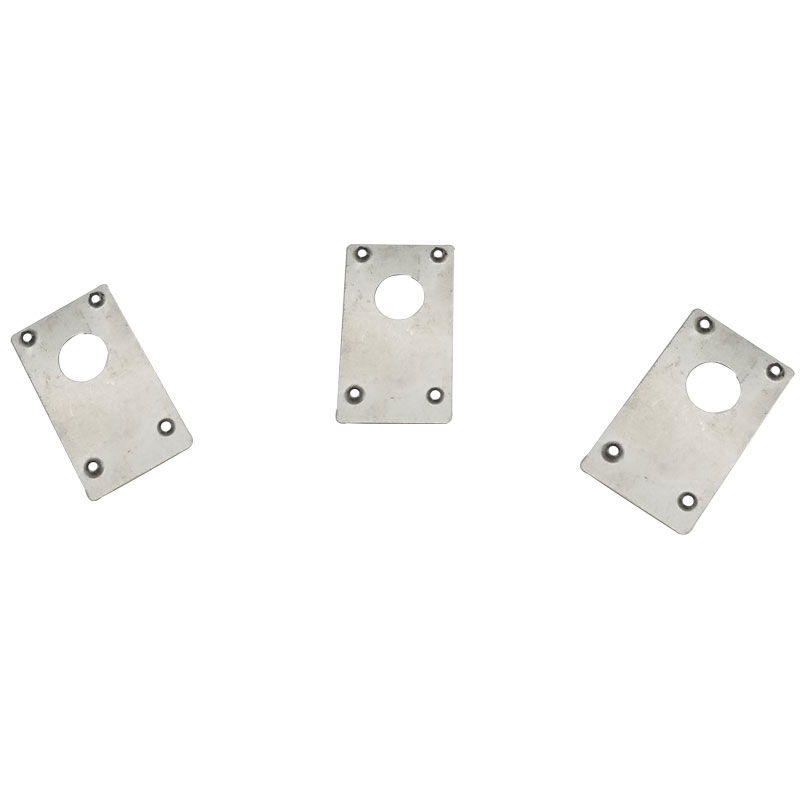

This solar mounting grounding clips model : 4A is very easy for using , just clip into aluminum rail slot , torque PV module with clips . The nibs of grounding plates will generate electric path between anodized rail and
solar panels .
solar mounting grounding clips 4A

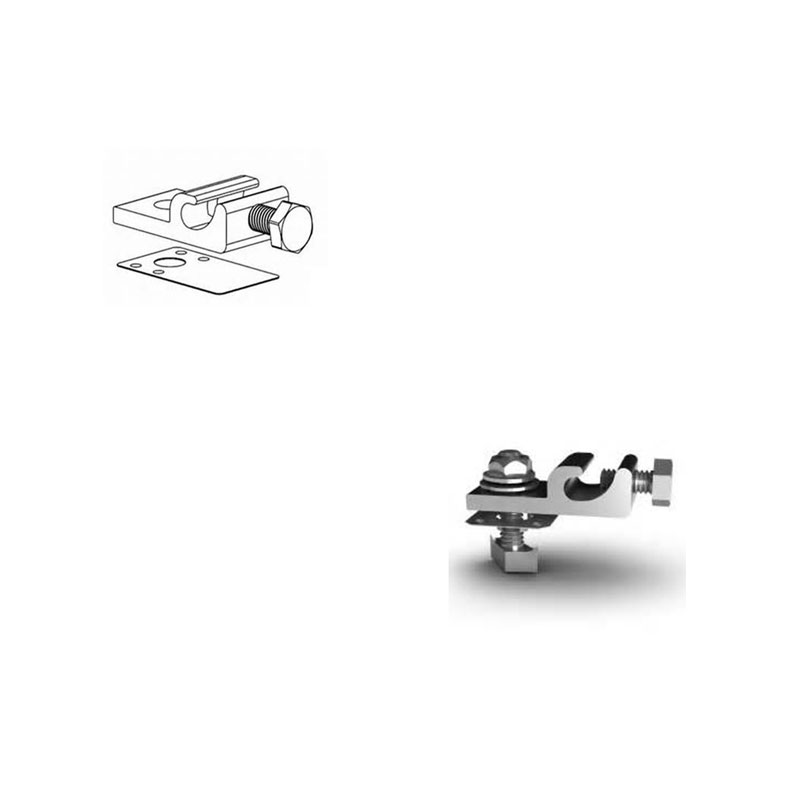

Our PV module mounting grounding clips – 4A can also work as flat washer . This plate can guarantee copper / aluminum lugs with mounting rails . Ensuring good electrical way for whole ground system .
Factory direct solar mounting grounding clips 4A wholesale with size and drawing details
Generally grounding clips , lugs, bonding joints , splices… are all grounding components for solar panel installation .
