Solar ground mount systems are becoming an increasingly popular choice for homeowners, farmers, and businesses seeking a powerful and flexible way to generate renewable energy. Unlike rooftop systems—which are limited by roof space, angle, and weight capacity—ground-mounted solar arrays are installed on open land, giving you complete control over orientation, tilt, and spacing.
This flexibility allows ground mounts to achieve higher energy yields, easier maintenance access, and future scalability. Whether you want to power a single-family home or a large commercial facility, ground mounts offer a durable, efficient, and cost-effective pathway to clean energy in 2025.

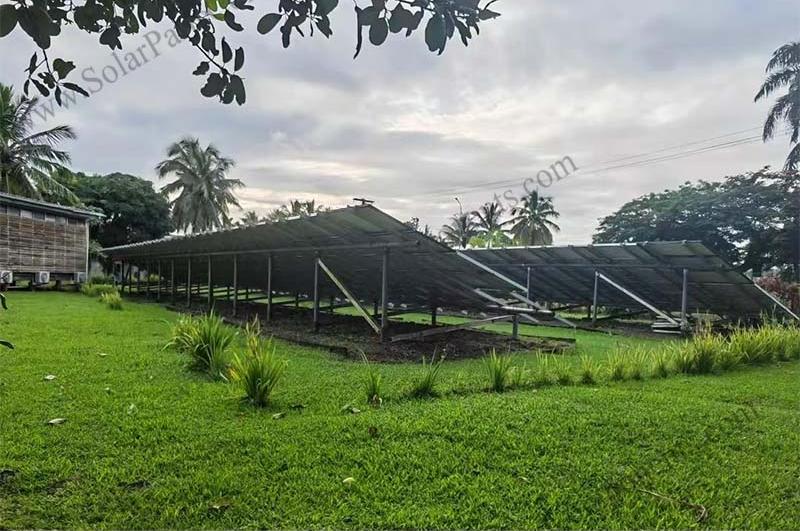

What Is a Solar Ground Mount?
A solar ground mount is a structural system that secures solar panels directly to the ground instead of a rooftop. These systems are built with steel or aluminum frames anchored to foundations, and they can be customized to fit different terrains, climates, and project sizes.
Main types of ground mount systems:
- Fixed-tilt mounts: Panels are set at a fixed angle. They are cost-effective, simple to install, and have minimal maintenance requirements.
- Adjustable-tilt mounts: Angle can be manually changed seasonally to maximize sun exposure.
- Single-axis or dual-axis trackers: Motorized systems that follow the sun’s path during the day for maximum energy generation (higher cost, higher output).
- Ballasted ground mounts: Use weight (concrete blocks) instead of deep foundations, ideal for sites where ground penetration is restricted.
Pros and Cons of Ground-Mounted Solar Panels
Advantages
- Optimal orientation and tilt for higher energy production
- No space constraints from roof shape or shading
- Easier maintenance and cleaning access
- Expandable system size for future energy needs
- Long service life (25+ years)
Disadvantages
- Higher upfront installation costs than rooftop systems
- Require more land area
- Longer permitting and inspection process
- Potential site grading or trenching costs
Solar Ground Mount Costs in 2025
The average cost of installing a solar ground mount system in 2025 is about $1.10 to $1.80 per watt (before incentives). For a typical 10 kW residential system, that equals $11,000–$18,000.(source:[industry data/NREL/SEIA])
Cost breakdown:
- Mounting structure: 10–15% of total cost
- Solar panels + inverters: 60–70%
- Labor and permitting: 15–25%
- Site preparation (grading, trenching): varies by site
Ways to lower costs:
- Buy a complete solar ground mount kit
- Choose DIY installation (if skilled and local codes allow)
- Bulk purchase materials from suppliers
- Hire local contractors to cut logistics expenses
ROI: While upfront costs are higher than rooftop systems, ground mounts often deliver better performance and lower maintenance costs over time, resulting in a faster payback period.
How to Design & Install a Solar Ground Mount
- Site Assessment
- Choose an open, unshaded location with solid soil conditions.
- Perform a geotechnical survey if needed.
- System Design
- Determine ideal tilt (based on latitude) and azimuth (south-facing in the northern hemisphere).
- Plan string sizing, inverter matching, and wire layout.
- Material Selection
- Structural frame (steel/aluminum)
- Foundation type (driven piles, concrete footings, or ballasted)
- Rails, clamps, bolts, grounding hardware
- Installation Steps
- Prepare and level the site
- Install foundation posts or ballast blocks
- Mount rails and support frames
- Install panels, connect wiring, and grounding
- Connect to inverter and grid (or battery system)
- Safety & Compliance
- Follow local electrical codes and permitting requirements
- Schedule inspections for interconnection approval
Best Solar Ground Mount Systems & Kits in 2025
Here are some of the most reliable and cost-effective systems currently on the market:
- lronRidge XR Ground Mount: Robust aluminum rails with integrated grounding, ideal for residential and small commercial projects.
- Signature Solar Ground Racking Kits: DIY-friendly kits with pre-drilled parts and clear instructions.
- RPS Solar Pumps Ground Mount Frames: Heavy-duty steel structures designed for agricultural and off-grid use.
- Corigy Solar Ground Mounting System: Highly customizable, corrosion-resistant aluminum design for large-scale solar farms.
When choosing a system, compare:
- Load ratings and wind/snow resistance
- Material corrosion protection
- Installation time and complexity
- Warranty coverage
- Compatibility with your chosen panels
Solar Ground Mount Projects & Case Studies
Residential: A 12 kW system powering a rural home, producing 17,000 kWh annually, with an estimated payback period of 6.5 years.
Agricultural: A 50 kW array installed on farmland, powering irrigation pumps and farm equipment, offsetting over \$12,000 in annual electricity costs.
Commercial: A 500 kW system for a warehouse, saving over \$80,000 per year and cutting CO₂ emissions by 600 tons annually.
Conclusion
Solar ground mount systems offer a powerful, flexible, and future-proof way to generate clean energy in 2025. They provide optimal panel positioning, scalable capacity, and long-term performance that can outperform rooftop systems over time.
If you have available land and want to maximize your solar investment, a ground-mounted system could be the smartest energy decision you make this year.
