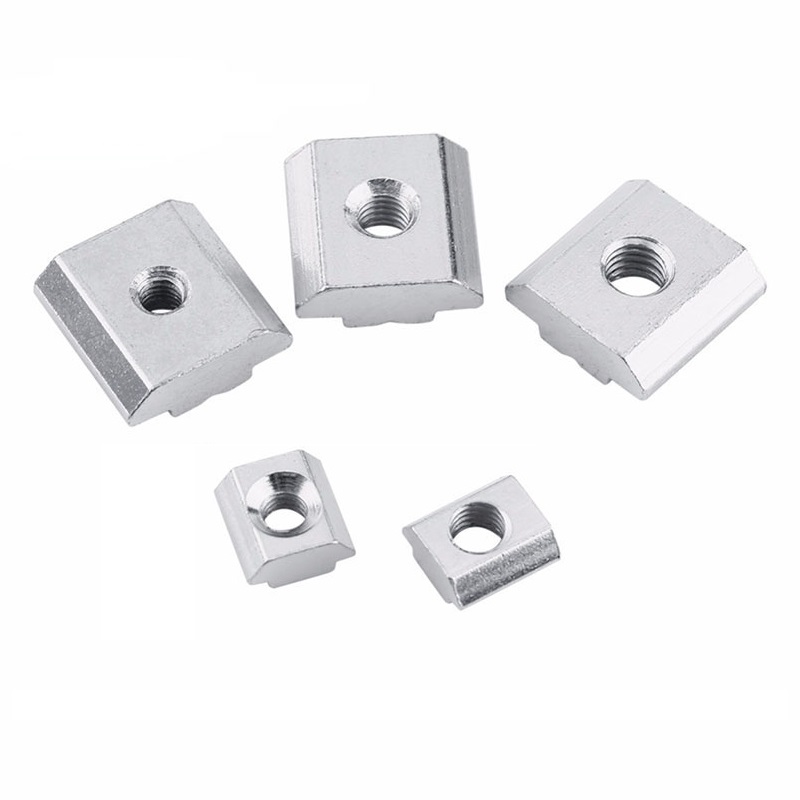

2020 / 3030 / 4040 / 4545 aluminum profile T Slide Nuts Series
Sliding nuts is a very important components in solar panel mounting system .
It’s used as a connecting nuts with allen hex cap bolts , mid clamp , end clamps , grounding clips .
The inner screw size can be M depends on external screw thread dimension like : M3 / M4 / M5 / M6 / M8 …
Please refer to different metric hexagon socket bolt size chart as below :
| Hexagon Socket Bolt Chart | |||||||||||
| Screw Size | Decimal | Hex Key | Screw Head | Counterbore | Countersink | Clearance Drills | |||||
| Equiv. | Diam. (mm) | Height (mm) | Diam. (mm) | Depth (mm) | Diam, 60° (mm) | Norm. Fit | Close Fit | ||||
| M3 | 0.118 | 2.5 | 5.5 | 3 | 6.5 | 3 | 3.6 | 3.7 | 3.4 | ||
| M4 | 0.157 | 3 | 7 | 4 | 8.25 | 4 | 4.7 | 4.8 | 4.4 | ||
| M5 | 0.196 | 4 | 8.5 | 5 | 9.75 | 5 | 5.7 | 5.8 | 5.4 | ||
| M6 | 0.236 | 5 | 10 | 6 | 11.2 | 6 | 6.8 | 6.8 | 6.4 | ||
| M8 | 0.315 | 6 | 13 | 8 | 14.5 | 8 | 9.2 | 8.8 | 8.4 | ||
| M10 | 0.393 | 8 | 16 | 10 | 17.5 | 10 | 11.2 | 10.8 | 10.5 | ||
Our T sliding nuts can fit with aluminum extrusion profile like 2020, 3030, 4040, 4545 series .

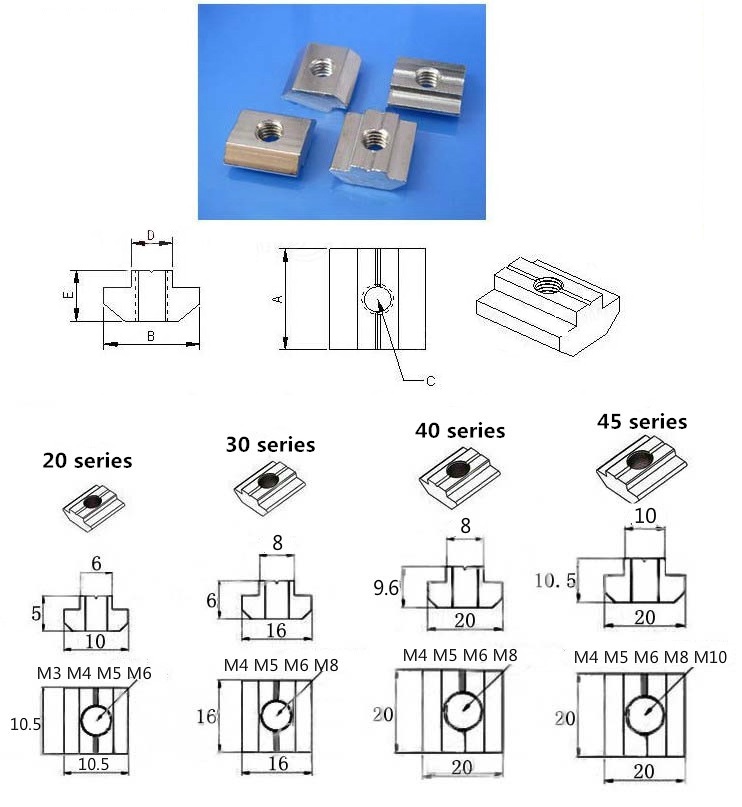

(1) 2020 aluminum profilt T slide nuts, available Hexagon socket bolts size can be : M3, M4, M5, M6 ;
20 Series:
– A & B : 10.5 square mm ,
– C : Hole thread size can be 3 / 4 / 5 / 6 / 8 mm for optional ,
– D : 6 mm ,
– E : 5 mm .
(1) 2020 aluminum profilt T slide nuts, available Hexagon socket bolts size can be : M3, M4, M5, M6 ;
20 Series:
– A & B : 10.5 square mm ,
– C : Hole thread size can be 3 / 4 / 5 / 6 / 8 mm for optional ,
– D : 6 mm ,
– E : 5 mm .
(2) 3030 aluminum profilt T slide nuts, available Hexagon socket bolts size can be : M4, M5, M6, M8 ;
30 Series:
– A & B : 16 square mm ,
– C : Hole thread size can be 4 / 5 / 6 / 8 mm for optional ,
– D : 8 mm ,
– E : 6 mm .
(3) 4040 aluminum profilt T slide nuts, available Hexagon socket bolts size can be : M4, M5, M6, M8 ;
40 Series:
– A & B : 20 square mm ,
– C : Hole thread size can be 4 / 5 / 6 / 8 mm for optional ,
– D : 8 mm ,
– E : 9.6 mm .
(4) 4545 aluminum profilt T slide nuts, available Hexagon socket bolts size can be : M4, M5, M6, M8, M10 ;
45 Series:
– A & B : 20 square mm ,
– C : Hole thread size can be 4 / 5 / 6 / 8 /10 mm for optional ,
– D : 10 mm ,
– E : 10.5 mm .
T slide nuts video :
T slide nuts can also be customized according to aluminum groove profiles given .
