Installing photovoltaic (PV) systems on metal roofs, such as corrugated steel or trapezoidal sheets, presents two major challenges: ensuring structural integrity while fundamentally addressing roof waterproofing and wind uplift resistance. Traditional drilling methods easily damage roof coatings, leading to long-term leaks, while ordinary clamps struggle to withstand extreme wind and snow loads in high-altitude or coastal regions. In response to this market demand, a product called the SPC-CK-03B Bottom-Mounted Metal Roof Clamp is redefining industry standards for metal rooftop PV installation with its military-grade materials and innovative bottom-load design.
1. Bottom-Load Design: Relieves Roof Stress and Protects the Waterproof Layer
Unlike traditional side-clamping or penetrating methods, this clamp adopts an innovative bottom-mounted horizontal installation structure, transferring the weight of the PV modules directly to the primary roof structure rather than relying on the clamp itself to “grip” fragile roof corrugations.
-

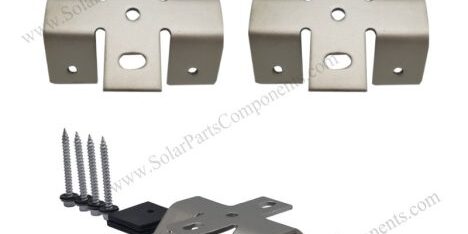

Non-Destructive Installation: The clamp is secured to the underside of the rails using self-tapping screws, avoiding direct penetration of the roof corrugations. Paired with four pre-installed butyl rubber pads, it evenly distributes pressure during fastening, ensuring the original galvanized layer remains undamaged, thereby eliminating the risk of leaks at the source.
-
Perfect Compatibility: Its dimensions are precisely calculated to perfectly conform to trapezoidal or corrugated roof ridges, providing robust mechanical engagement and ensuring the stability of the PV array over long-term operation.
-
Stress Relief: This design allows for some displacement during thermal expansion and contraction of the roof, reducing wear and tear between the clamp and the roof surface.
2. Resistance to Extreme Environments: Survival Threshold Under 60 m/s Winds and 1.4 KN Snow Load
In harsh outdoor conditions, the clamp’s material directly determines the lifespan of the PV system. This clamp demonstrates high engineering safety margins in both material selection and mechanical design.
-
Military-Grade Material: The main body is made of SUS304 stainless steel, offering exceptional corrosion resistance, remaining durable and rust-free even in high-salt coastal environments or industrially polluted areas.
-
Extreme Load Capacity: Rigorously tested, the clamp can withstand wind speeds of up to 60 m/s (equivalent to a Category 5 hurricane) and snow loads of up to 1.4 KN/m². This means the clamp remains securely locked, protecting the PV assets against both high winds and heavy snow.
-
Long-Lasting Sealing: The high-quality EPDM rubber gasket on the back of the clamp maintains its elasticity over time, ensuring the roof remains leak-proof after installation, providing peace of mind for owners.
3. Why Choose This Bottom-Mounted Metal Roof Clamp?
The SPC-CK-03B clamp is more than just a fastening accessory; it is a complete bottom-mounting solution that integrates waterproofing, wind resistance, ease of installation, and longevity.
-
Pre-Assembled Delivery: The product arrives pre-assembled, requiring only simple on-site installation, which significantly shortens project timelines and reduces labor costs, making it ideal for large-scale commercial and industrial distributed projects.
-
Broad Compatibility: It provides reliable support for both framed and frameless PV modules, across residential, commercial, and industrial applications.
-
International Certification Assurance: The product complies with multiple international building standards, including AS/NZS 1170, DIN 1055, GB50009-2012, IBC2009, TUV, and JIS, and comes with a 10-year warranty and a 25-year design lifespan.
