Can I get metal roof tilting racking 10-15 tilt ?
”
I’m interested in the metal roof tilting racking 10-15 tilt pricing.
Also how soon can I get to US
Here is the project and cut sheet of the panels. R panel metal roof. Price with shipping for the rails.
Also need 8 frameless end clamps 16 frameless midclamps.
If I order the clamps now could you have to USA by 28 this month.
Also whats the price on a 2 carport aluminum system.
Thanks Ken
Amherst St
Lubbock Tx 79416,USA
“
”
Dear Ken
Well noted.
For the metal roof tilting racking 10-15 tilt,
We recommend our model: SPC-AD15-FR1-S,
Adjustable Mounting Systems for Roofing
Both framed / frameless model are suitable.
SPC solar sales team
”
”
Yes sir.
that’s the one,

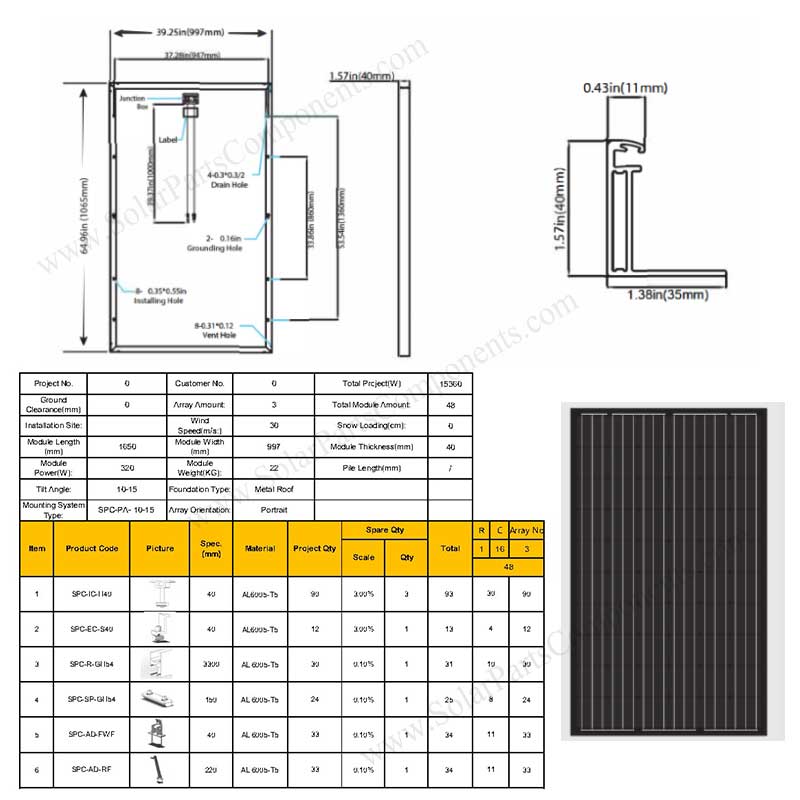

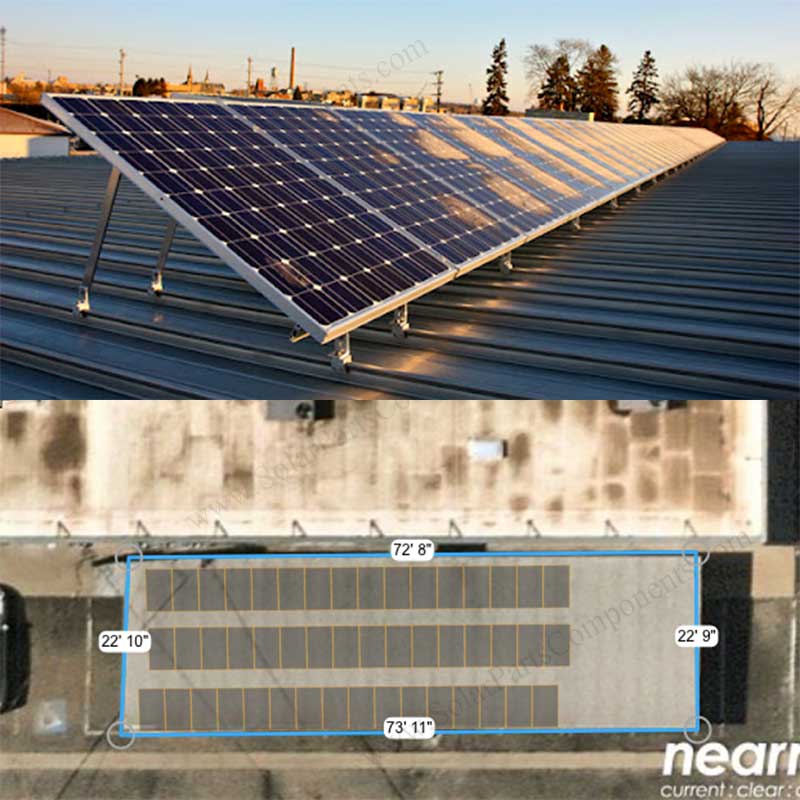

Following is basic information / google map / PV module sizes:
| Project No. | SPC-USA-Ken-002 | Customer No. | USA-Ken | Total Project(W) | 15360 | ||||||
| Ground Clearance(mm) | 0 | Array Amount: | 3 | Total Module Amount: | 48 | ||||||
| Installation Site: | Wind Speed(m/s:) | 30 | Snow Loading(cm): | 0 | |||||||
| Module Length (mm) | 1650 | Module Width (mm) | 997 | Module Thickness(mm) | 40 | ||||||
| Module Power(W): | 320 | Module Weight(KG): | 22 | Pile Length(mm) | / | ||||||
| Tilt Angle: | 10-15 | Foundation Type: | Metal Roof | ||||||||
| Mounting System Type: | SPC-PA-10-15 | Array Orientation: | Portrait | ||||||||
Please go on design and quote
Tks,
Ken
“
”
Hi Ken
Following is metal roof tilting installation kits information for you.

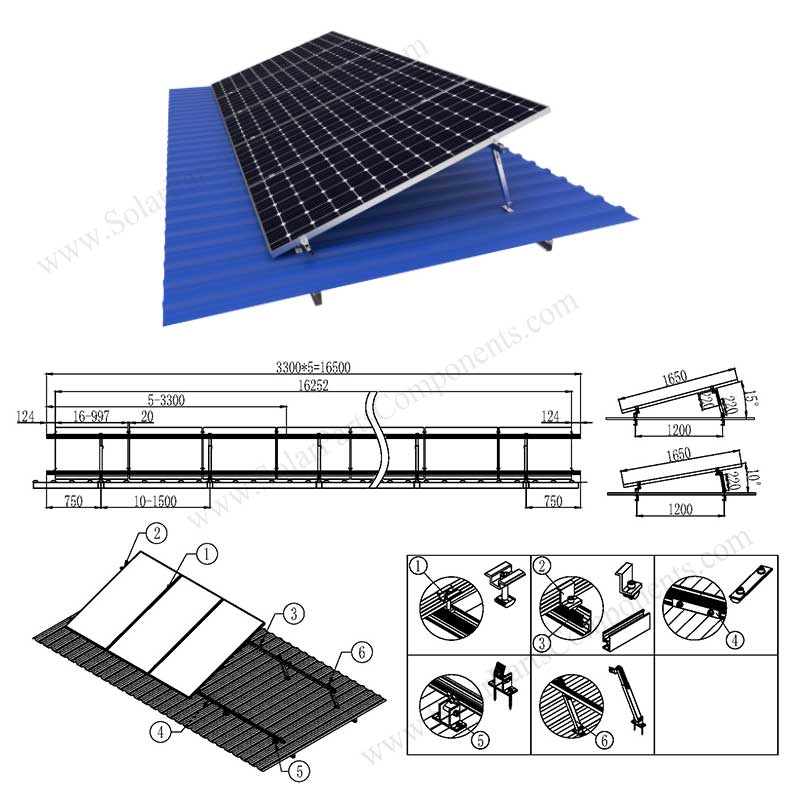

Design for this metal roof tilting mounting:
Checklist / BOM for this metal roof tilting racking 10-15 tilt project:
Our adjustable metal roof tilting racking system is low cost per watt, quick intallation with simple steps.
With our matched clamps for roof profile, our tilting mounting structure can be installed on most type of metal roof sheet.
– Easy to ship with low weight aluminum alloy made;
– Suitable for most of PV module size and thickness;
– No costly, faster, quicker installation;
– Pre-assembling and packing;
– Durability with high class materials;
Technical Information for metal roof tilting installation kits:
Install site: Pitched / flat metal Roofing;
Tilted Angle: 0~30 deg;
Building Height: 25 Meter max
Max Wind Speed: <60m/s
Snow Loading: <1.4KN/㎡
Standard: AS/NZS 1170 and other international Standard;
Materials: High Class Aluminum alloy / Stainless steel;
Color: Natural / silivery / black / Customized;
Warranty: 10 years warranty and 20 years service lifespan;
Welcome to engineer and get price offer about out metal roof tilting racking mounts for industrial / business / residential rooftops whatever large scale or small individual homes.
