Is a Pitched Metal Roof Solar Mounting System with Integrated Seam Clamps Really Code-Compliant Without Roof Penetration?

On pitched residential or light-commercial metal roofs (standing seam or corrugated profile), solar installers face a familiar dilemma: penetrate the roof to anchor the racking and risk voiding the roof warranty, or use an aftermarket clamp system that may not be structurally certified for local wind loads. The Solar Panel Roof Mounting Systems for Pitched Metal Roof with Aluminum Seam Clamps (SPC-RF-CK04-HR Type) — Non-Penetrating Standing Seam & Corrugated Metal Roof PV Racking, AL6005-T5 Rails + SUS304 Hardware is purpose-built to resolve this. It provides a complete, code-ready attachment solution: L-feet or direct-rail interface lock onto the roof’s standing seam via matched-profile aluminum clamps (no drilling), while the rail network and module clamps handle panel spacing, grounding continuity, and tilt optimization for the roof pitch. But what makes an integratedmetal roof mounting system safer and faster than mixing generic rails with third-party clamps—and what should you verify before specifying it for a project?

Core Principle: Grip the Seam, Not the Deck

Unlike comp shingle roofs that require lag bolts into rafters (with flashing), a metal roof mounting system for standing seam applications should never penetrate the roofing panel. Instead:

Seam-Matched Aluminum Clamps straddle or hook over the upright seam and tighten via SUS304 setscrews—creating a mechanical bite that resists both uplift and downward wind loads.
L-Foot / Rail Bracket bolts to the clamp’s tapped hole (typically 5/16″ UNC or M8), transferring load from the rail system to the roof structure via the seam itself.

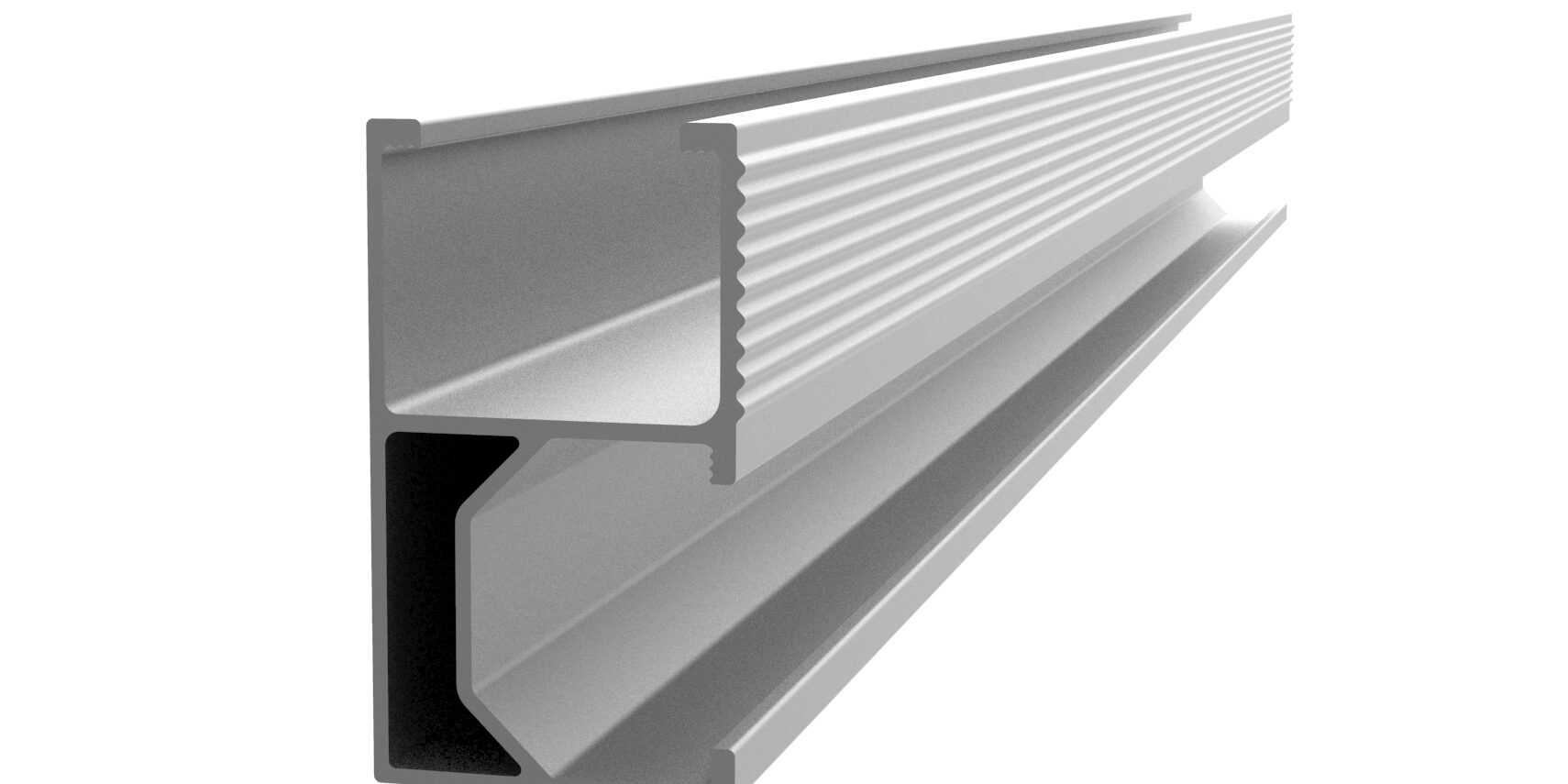

Rail Network (AL6005-T5) spans between attachment points, supporting mid and end clamps that hold the solar modules.

Because the clamps are seam-profile-specific (snap-lock, nail-strip, 1.5″/2″ widths etc.), the system maintains full surface contact with the seam—avoiding crushing or deforming it—while delivering the holding power required by ASCE 7 / IBCwind load calculations.

Why an Integrated System (Clamps + Rails + Hardware) Beats Mix-and-Match

Buying rails from one vendor and seam clamps from another can create compatibility and liability gaps:

Issue	Integrated System Advantage
Fit Compatibility	Rail slot depth, L-foot hole pattern, and clamp bolt spacing are engineered to match—no shimming or field drilling
Structural Certification	Whole-system pull-test / torque-test data (uplift per clamp, allowable rail span) covers bothclamp and rail—not just one component
Grounding Path Continuity	Many integrated kits include UL-listed bonding features (tin-plated interfaces, star washers) ensuring panel frame-to-rail-to-clamp-to-seam continuity without extra lugs
Faster Estimating & Procurement	One BOM line = clamps + rails + L-feet + module clamps + hardware—no mismatched MOQs or forgotten washer packs
Warranty Clarity	Single-point warranty on the complete mounting assembly

Key Materials & Why They Matter

Component	Material	Reason for Selection
Rails & L-Feet	AL6005-T5 (or AL6061-T6 for high-load zones)	High strength-to-weight, anodized for 1,000 hr salt-spray resistance (ASTM B117); extruded channel accepts standard slider nuts
Seam Clamps	AL6005-T5 Aluminum Alloy, clear or black anodized	Matches seam profile; lightweight but structurally rated; anodizing prevents white corrosion on coastal roofs
Setscrews / Bolts / Nuts	SUS304 Stainless Steel	Prevents galvanic corrosion against Al & Zn-coated seams; holds torque through thermal cycles
Module Mid / End Clamps	AL6005-T5 with anodized finish	Accommodates standard frame thicknesses (30 / 35 / 40 mm common); silver or black to match aesthetics

Typical Installation Sequence (Pitched Metal Roof)

Confirm Seam Profile & Spacing — Snap-lock? Nail-strip? Measure seam width and plan rail runs parallel to seamsor perpendicular bridging multiple seamsas per design.
Position First Clamp — Hook clamp over seam at designated attachment point → insert SUS304 setscrew → torque to manufacturer spec (usually 30–50 in-lb / 3.4–5.6 N·m — check datasheet).
Attach L-Foot / Rail Bracket — Bolt L-foot to clamp using supplied stainless hardware; orient rail direction per layout drawing.
Install Rail Sections — Join rails with splice plates; ensure rail is level and properly supported at each clamp location.
Mount Modules — Slide mid-clamps into rail channel → place module → secure with end clamps → check torque.
Grounding Verification — If system includes bonded clamps, verify < 0.1 Ω resistance panel-frame-to-seam-to-ground electrode per NEC690.41/690.47.

Wind Load & Fastening Considerations

Clamp Spacing: Typically one clamp every 1–1.5 m (3–5 ft) along the rail, with closer spacing at eaves, rakes, and ridge (edge zone uplift is higher per ASCE 7).
Uplift Rating: Reputable suppliers provide certified uplift capacity per clamp (e.g., 1.2–2.0 kN depending on seam type & torque). Use this + local wind speed / exposure category to calculate required clamp count.
Corrugated Metal Roof Variant: If the roof is corrugated (not standing seam), the system may use a strap-and-L-footor sheet-metal screw with EPDM washervariant—penetrating the crest of the corrugation only (flashed with EPDM washer). Confirm which version your roof requires before ordering.

Applications & Compatibility

Residential Standing Seam Metal Roofs: Most common — 1.5″ or 2″ snap-lock/nail-strip seams.
Light-Commercial Metal Roof (Retrofit): Warehouse / shop with sound structural substrate — preserves roof warranty.
Cabin / Off-Grid Metal Roof: Small arrays where speed and leak-avoidance matter.
Framed Modules Only (Typically): System is designed for standard aluminum-framed crystalline modules; frameless may require adapter clamps.

Sourcing Checklist for Buyers & Installers

When requesting a quote for Solar Panel Roof Mounting Systems for Pitched Metal Roof with Aluminum Seam Clamps (SPC-RF-CK04-HR Type):

✅ Provide seam profile name + width + roof panel gauge (photo helps).
✅ Specify module frame thickness (30 / 35 / 40 mm) and quantity per array size.
✅ Request structural calc pack / ICC-ES report if required by AHJ.
✅ Confirm anodizing thickness (Class II minimum 15 µm; Class III 20+ µm for coastal).
✅ Ask about mixed-kit discounts (rails + clamps + module clamps in one BOM).

Conclusion: One Roof, Zero Holes, Full Code Compliance

The Solar Panel Roof Mounting Systems for Pitched Metal Roof with Aluminum Seam Clamps (SPC-RF-CK04-HR Type) — Non-Penetrating Standing Seam & Corrugated Metal Roof PV Racking gives installers a complete, warranty-safe path to solar on metal roofs. By matching seam-profile clamps to a certified AL6005-T5 rail system—and torquing stainless setscrews to spec—you achieve code-compliant uplift resistance without drilling the roof panel. For homeowners, that means no leak anxiety; for contractors, it means faster installs and defensible structural documentation. When the roof is metal, this is the mounting system of choice.
