Hex Nuts for M12 Screws and Bolts, Stainless Steel A2-70

Product Description:

M12 hexagonal hex nut is a kind of heavy duty, strong and durability fastener in PV racking industry.

SUS 304 stainless steel with M12 gauge size hex nuts conform with DIN936 and RoHS standard.

M12 size hex nut is a six-sided with internal threads nut which match with bolt or screw.

Hexagonal nuts in stainless steel M12 are general purpose used for automotive, construction, workshop, machinery…

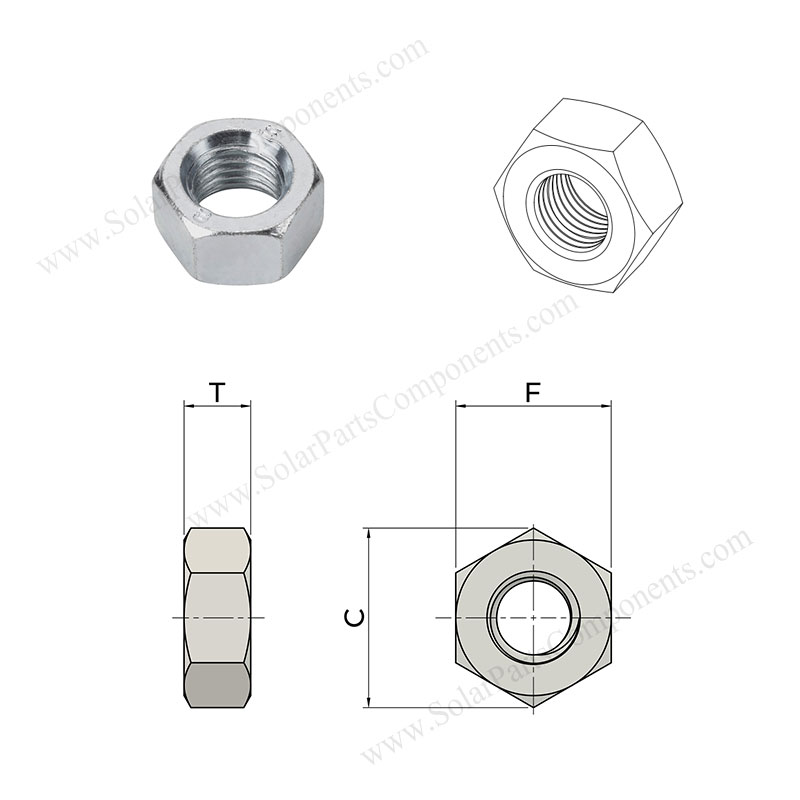

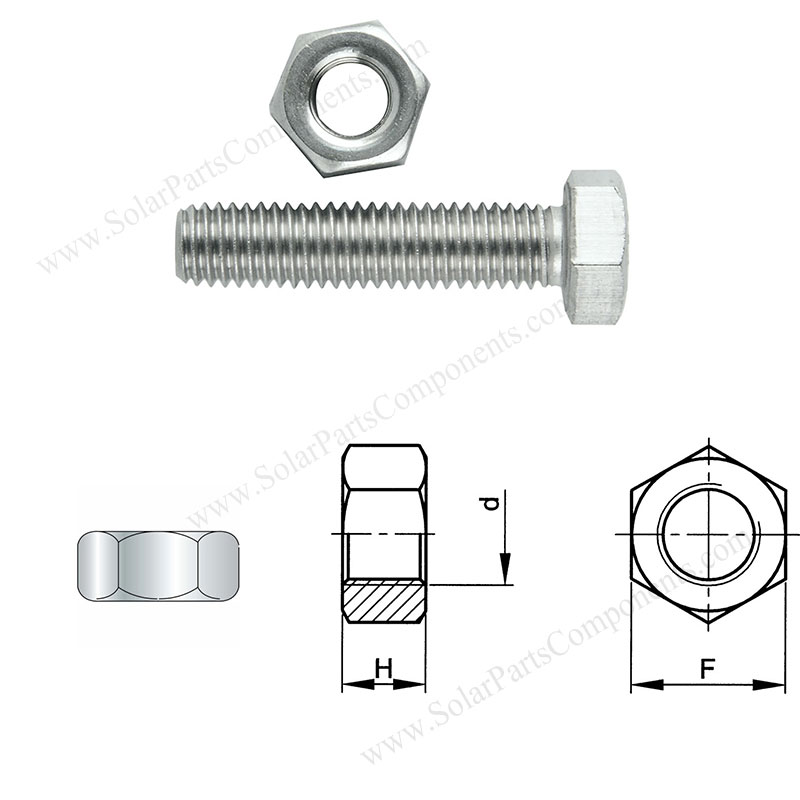

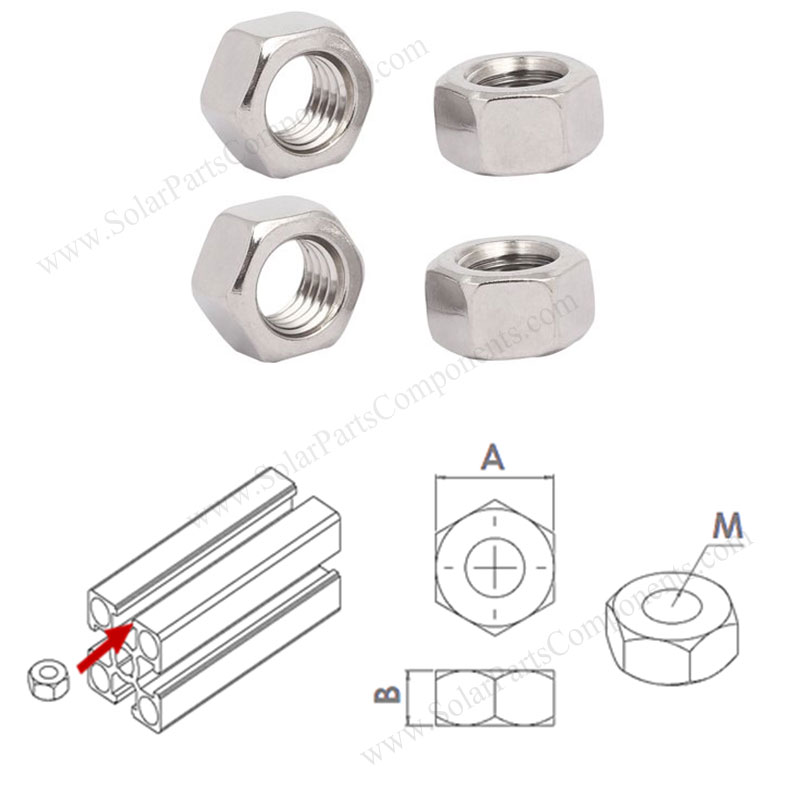

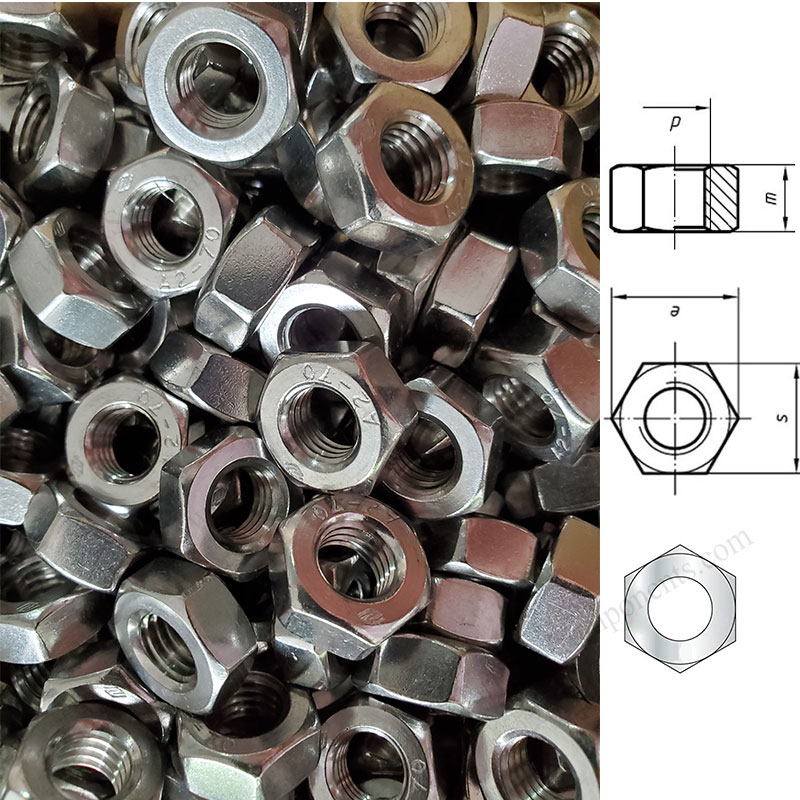

The M12 hex nut dimensions in millimeters are:

(1) Inner Diameter: Φ12mm [Φ0.47″];
(2) Thread pitch: 1.75mm [Coarse];
(3) Width across flats: 18mm [0.71″];
(4) Width across corners: 20.8mm [0.82″];
(5) Thickness / Height of hex nuts h:10mm [0.39″];

Features of this #12 hexagonal nuts:

1. Standard comply with ANSI/ASME /B18.2.4.1M B18.2.4.2M;
2. 50 / 100 pack;
3. A2/70 stainless-steel full thread nuts, prevent corrosion / rust;
4. Spanner / wrench model: 19mm;
5. 360° angle, easy and versatile for use;

Feel free contact metric hex nuts chart from M3, M4, M5…M36, special order / sizes can be made from SPC factory direct.

Please do choose correct and right thread pitch, usually there are coarse or fine thread different for nuts.
