Flexible PV Module Mid clamps for Thin film panels

Q:

Dear SolarPartsCompenents,

Do you have the specific dimension ( Lenght,wide,high) and pricing/costing for the following component:

Frameless Solar Panel Mid Clamps

A:

Good day！

Arppreciated for your inquiry of our Frameless Solar Panel Mid Clamps.

Please share the thickness of your solar panels and we will recommend the appropriate range of solar clamps for you.

How many quantities do you need?

Do you only need mid clamp? Is end clamp necessary?

You can refer to Specification-Frameless Solar Panel Clamps.pdf as file attached for more of this products.

Look forward to your quick reply!

Q:

Thank you for the quick reply.

Please give me a rough quotation on the costing base on:

– Thickness of the panels are est. 7mm

– estimated, mid clamp (124 pcs) and end clamp (80 pcs)

Can I check what is the size of the center screw (M8 or M8.5) ?

A:

Good day！

According to your 7mm thickness of the panels we recommend the following two products.

Please refer to see if the drawings meet your requirements.

The hole diameter of the drawing is 8.5mm. The size of the center screw is M8.

Only the middle and side presses are required, right?

If the drawing is OK, I will provide you with an invoice in the next email.

Looking forward to your timely reply.

Q:

Thank you for the fast response and for sending the datasheets. Your recommendations are suitable.

However, I need to check on the costing and report to my supervisors before any proceeding. Do send me a costing for me to clear with my supervisors.

With the rapid development of renewable energy, solar energy, as the preferred energy source for green and environmental protection, has become an important part of the global energy transformation.

In solar systems, clamps play an important role as connecting components, which directly affects the stability and longevity of the system.

Especially in the installation of thin-film solar panels, PV film clamps play a vital role.

Improve the efficiency of solar system–choose PV film clamps

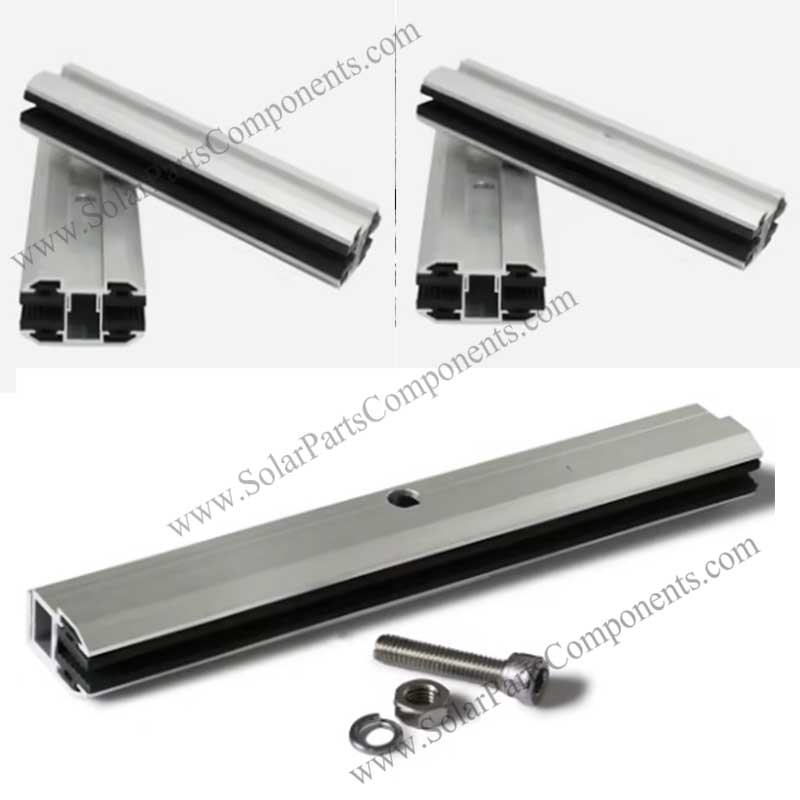

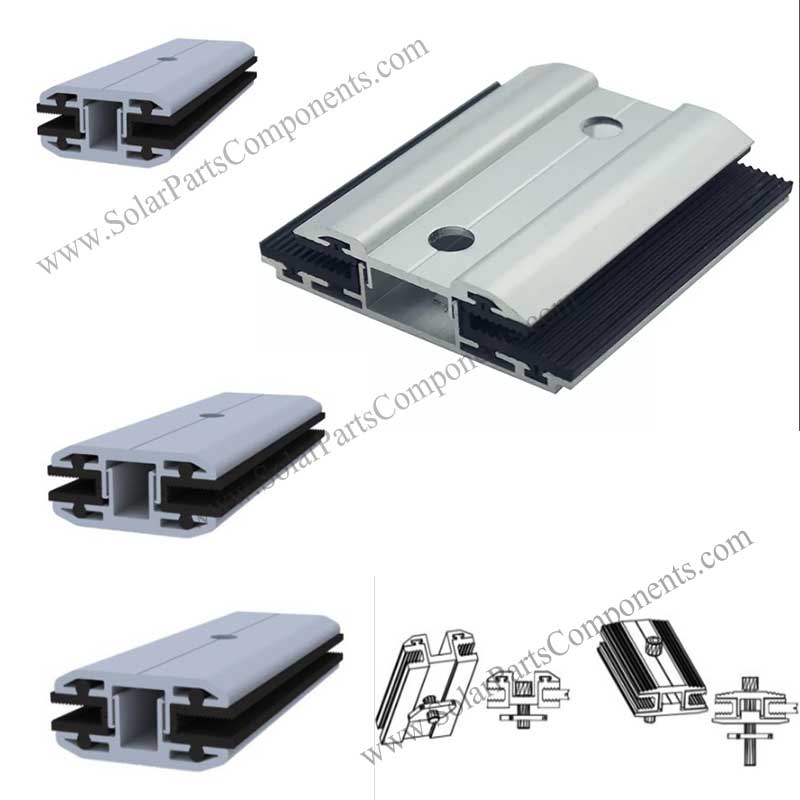

The Flexible PV Module Clamps is suitable for frameless solar flexible panels.

The clamp is equipped with a rubber pad to protect the solar panel and prevent it from being squeezed and damaged.

The following is a related inquiry:

Q:

Dear Sir,

I need to purchase fixing clamps for 110x glass/glass panels (so I would need 110×4=440 clamps)

Panels are amorphous, frameless and the clamp could cover the panel by 1 cm.

The idea is to fix the panels in a wooden pole, all I need is a clamp to maintain it. The clamp needs to have some rubber on it to prevent the glass glass panels to crack when I will tighten it.

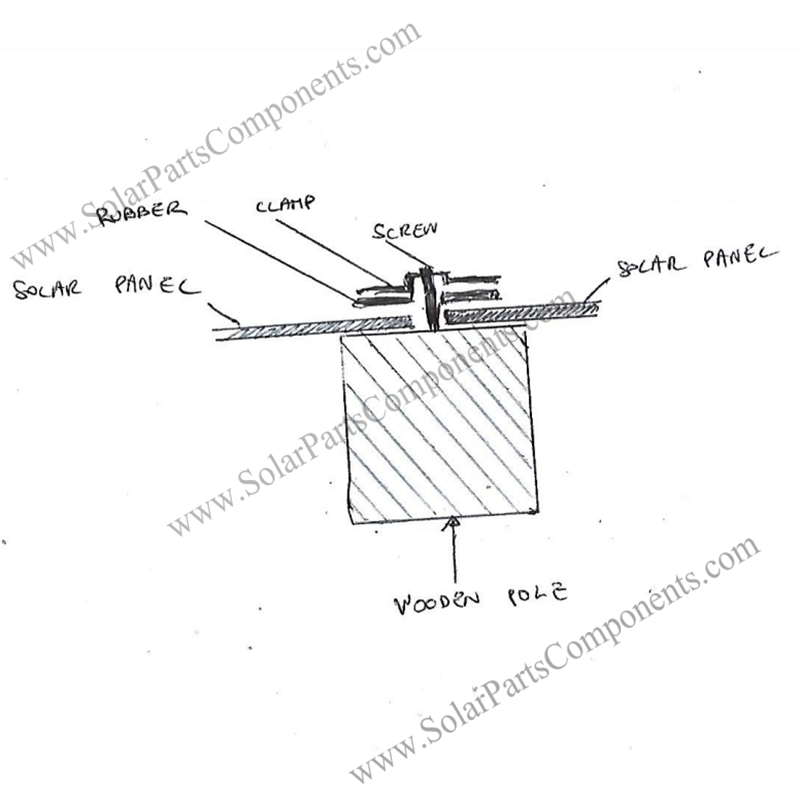

I made a little drawing of what I need (I am not very good in drawings J )

By the way, out of the 440 pieces I will need 24 “starters” (which are only 1 side).

Can you send me technical details of what you can offer?

Thank you for your answer

A:

According to your description, I recommend this film clamp for you.

Maybe it can meet your needs. Please check the attached drawings and let me know if it is suitable!

Flexible PV Module Clamps

Flexible Solar Module Clamp play a key role in the installation and testing of solar panels.

Why do Flexible Solar Module Clamp need to be used in solar panel installation?

Thin film clamp are mainly used in the manufacture and assembly of flexible solar panels.

They are significantly different from ordinary mid-end clamps in terms of structural design, function, application scenarios and material applicability.

What is the thin film clamp?

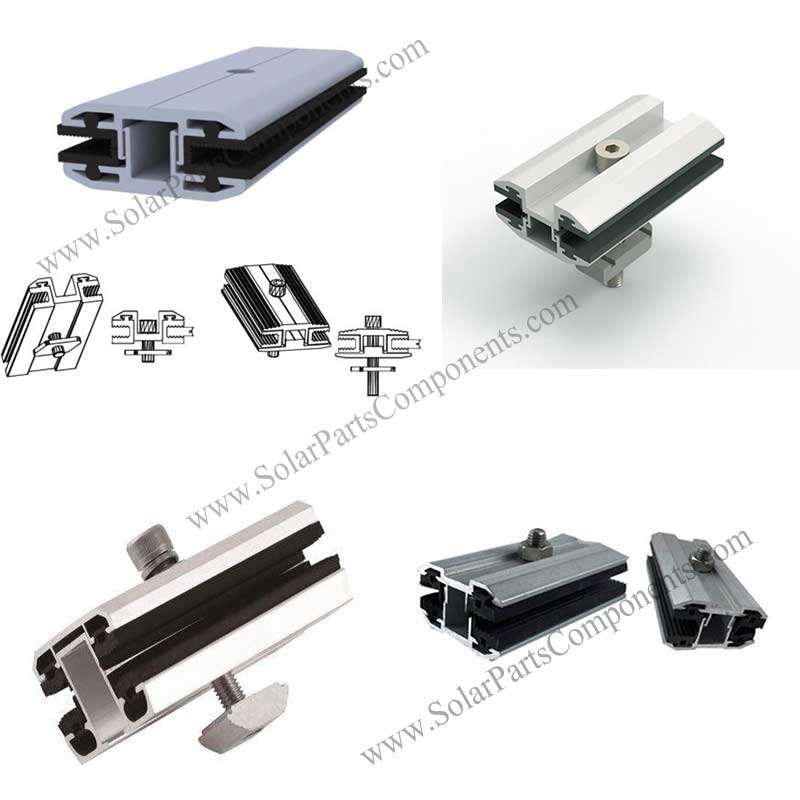

The Solar Flexible Mid Clamps center edge clamp is specially designed for flexible solar panels.

The clamp has a rubber pad design inside, which can clamp the solar panel without causing pressure on the panel.

The length can be cut and customized according to customer needs.

Q:

Good Day, I would to inquire PV Mounting Kits. PV Railing 2.1m, Solar Flexible Mid Clamps 35mm, End Clamps 35mm, Splice and L-Foot. Preferred 3000-5000pcs.

A: Thank you for your inquiry. Maybe you can share your project information?

Q: We are a commercial project, please see the attached details for details.

A: Thank you for sharing. According to your project, we recommend the following products.

Please check whether the drawings in the attachment meet your requirements.

Q: that’s good!

Solar Flexible Mid Clamps

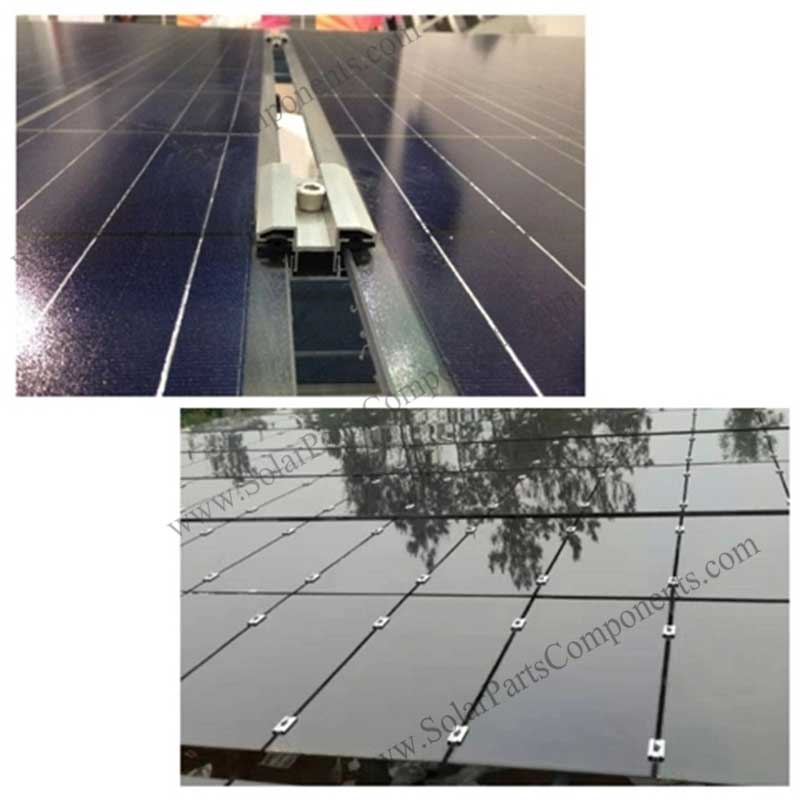

Aluminum Frameless Solar clamp are used to fix solar panel modules to rails or clamps.

This solar clamps fit perfectly to the solar modules and PV mounting structures.

Q:

Hello We are currently looking for Clamps for frameless module.

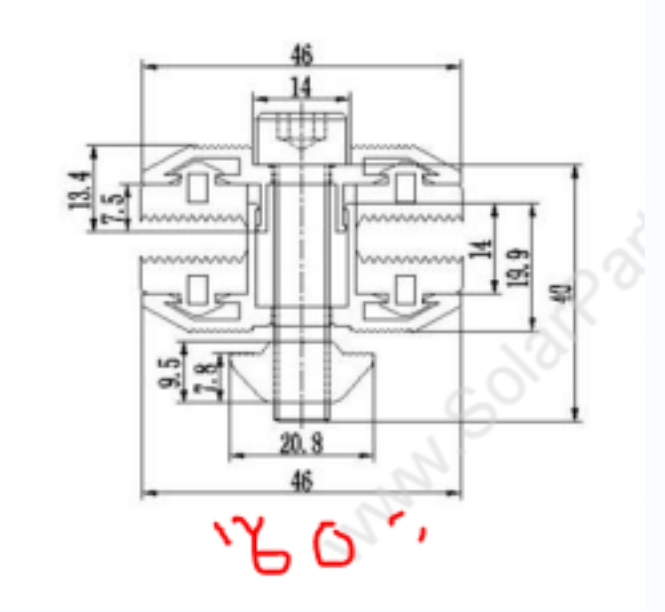

This is the design picture of our clamps

Modules interval gap is 30mm and we are using bifacial module(1972*992*5)

Do you have same dimension of clamps as above picture?

We need Mid 4860 / End 3240 urgently.

Wish we could get it by 29th of December.

And we have another 8000pcs more.

Aluminum Frameless Solar clamps

A:

Our engineer just check your drawings,

we have no exact same framless solar mid / end clamps but similiar as files attached .

They can fit for your PV module thickness 5mm .

Are they OK for you ?

Q:

Thank you for your supporting.

because of the gap of each modules, the width of clamp should reach to 60mm..

46mm is not sufficent length.

A:

I will check it and come back to you later .

Should I offer bolts and nuts ?

Do you have photos of these clamps besides drawings ?

If you can also send me CAD / PDF file that would more favorable for me .

Aluminum Frameless Solar clamp

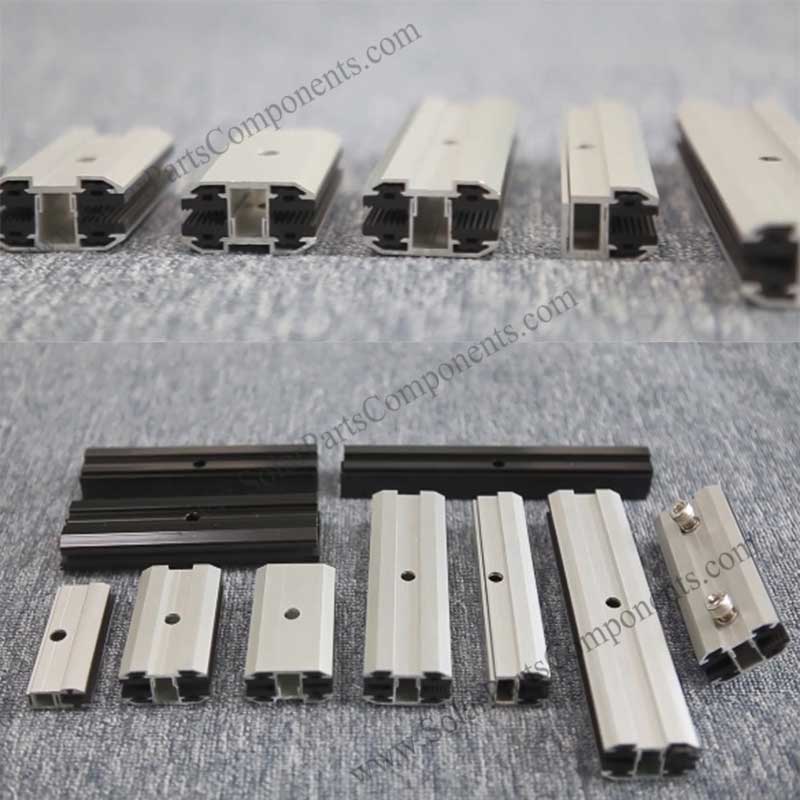

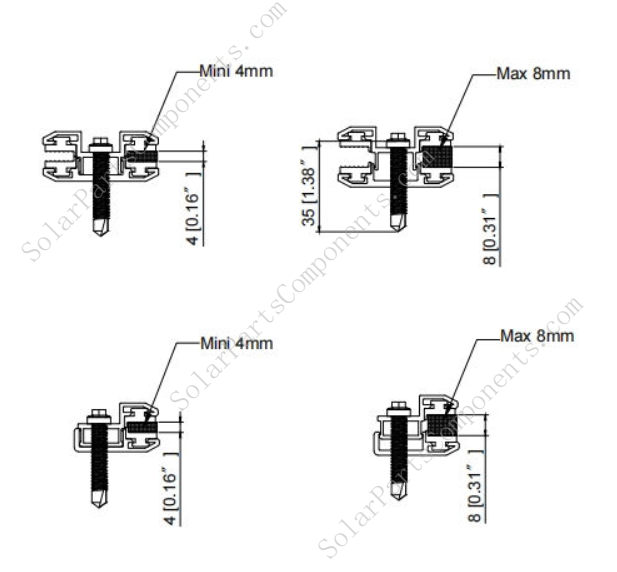

Thin Film Middle Clamps’s general suitable for 3-8mm solar panels.

Additional customization is also available.
which to connecting the solar panel and fixing them on the track, ensure that the modules are installed in the correct position and orientation

Q:

I’m looking for mid and end clamps for frameless panels need about 5000 of each can you give me a quote along with estimated delivery to indiana

A:

Nice to recieve enquiry about our mid clamp & end clamp series .

Can you let me know the thickness (size) of your frameless solar panels ?

If you would give me more details of address, I will give you freight cost in the next email .

Thank you !

Q:

I dont really know thickness I know they have no frames.

Thin Film Middle Clamp

Thin Film Middle Clamps

Flexible solar panels manufactured from ultra-thin silicon cells, one of the most important components in solar installations, typically only a few microns wide. The Flexible  PV module clamps is used in the installation process of the panel, which can prevent the damage of the panel and play a fixed role.

The following is a related inquiry for Flexible  PV module clamps.

Q:

Looking for a price on the Flexible  PV module clamps, also, the flexible PV panel clamps from your website (see attached) if you purchase each by the 100 quantity.

This is for a project I am bidding and need a quote, and we would start an account if we are low bidder on this project.

A:

Appreciated for your inquiry for our flexible thin film PV module clamps.

Please refer to our factory price as attached.

Hope you will also win the bidder.

Q:

Thanks for the quick reply, maybe there is a better option in terms of shipping?

A:

If you are not urgent, you can choose our flat mail srevice, 3 weeks’ rate, the freight see as attached.

Q:That’s great, how do I place an order?

A:

Please check the Invoice, which contains the payment method.

Flexible  PV module clamps

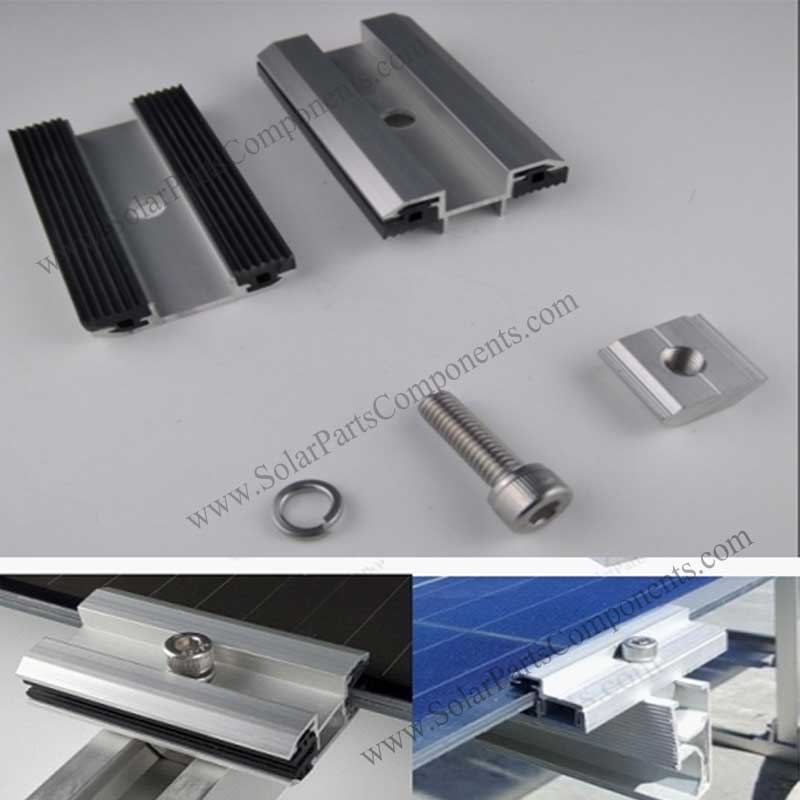

The flexible PV module clamps used for the connection between two solar panels to enhance the stability and wind resistance of the entire PV power station.

The solar mid clamp can fix the component, prevent the panel from shifting, and ensure the stable installation of the component.

The installation method is simple and easy to use.

Put the edge of the solar panel to be connected between the mid clamp fasteners, use bolts to penetrate the mid clamp, and finally tighten the bolts.

The following is a related inquiry for flexible PV module clamps.

Q：

Hello,

Looking for a price on the Frameless Solar Panel Mid Clamps Aluminum, also, the mid clamp Solar mounting components from your website (see attached) if you purchase each by the 1000 quantity.

This is for a project I am bidding and need a quote, and we would start an account if we are low bidder on this project.

Flexible PV module clamps

A：

Appreciated for your inquiry for our flexible PV panel clamps

Please refer to our facotry price as attached

Please advise.

Hope you will also win the bidder.

Waiting for your good new!

Q:

Dear friend, I am very satisfied with this price, how can I place an order?

A:

Please provide relevant delivery information so that I can better calculate the shipping cost for you.

Q:

Please send to the address:…..

A:

See the attachment for quotation details.

Q:

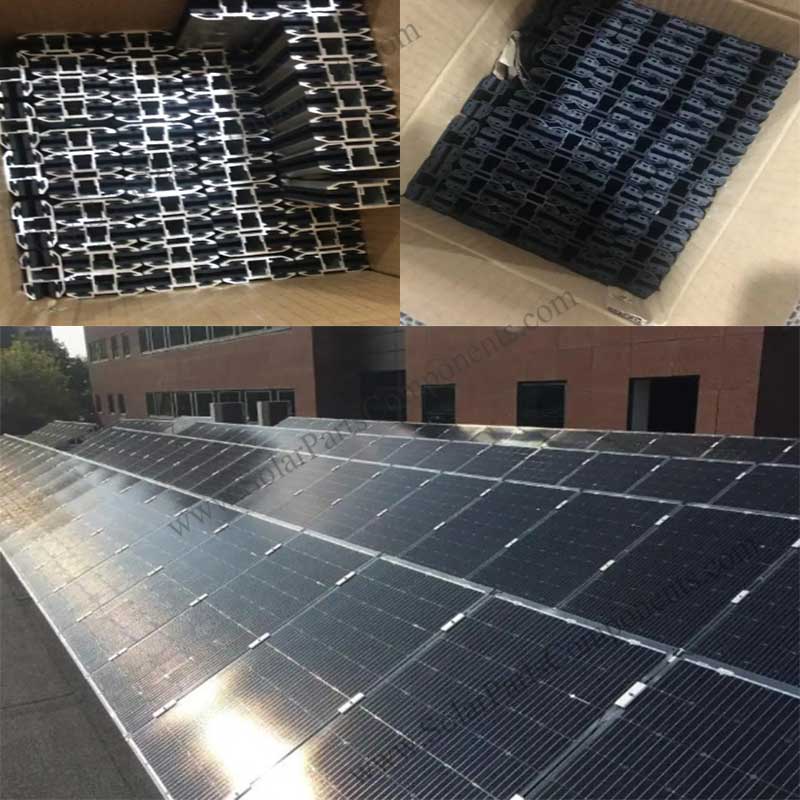

Payment has been made, please deliver as soon as possible.

A:

OK, we will ship as soon as possible, thank you for your trust.

Q:

Hi, I am interested in your flexible solar clamps. We are distributors These are only 2 mm thick. Do these clamp down that thin. We are also after a range of Solar Panel side Pole mounts.

A:

Thank you for your email and nice to know that you are interested in our flexible solar clamps.

Yes, our factory carry some sizes of the Frame-less clamps to meet the thickness range from 1mm to 15mm.

May I know how many quantity would you need?

I will come back to you quotation.

FYI. One of our model for 1mm to 4mm thickness

Q:

Thanks for replying.

Are these precut to any set length?

A：

Usually our standard length size for the frame less clamp is 80mm.

Also we can accept customized the length size.

Q:

Does the Hex socket screw protrude through the bottom plate when tightened up?

A:

Yes, he Hex socket screw protrude through the bottom plate when tightened up.

Q:

What is the recommended way of fixing these brackets down to different surfaces?

A:

We use the screw and rail nut to fix it. You also can use your own rail nut if you have.

May I know your purchase schedule and quantity.

I will proceed the quotation for you.

Thank you and have a nice day

Q:

This is excellent.

Please see the attachment for my requirements

A:

Please check our quotation for your need as file attached.

Thank you.

flexible solar clamps
