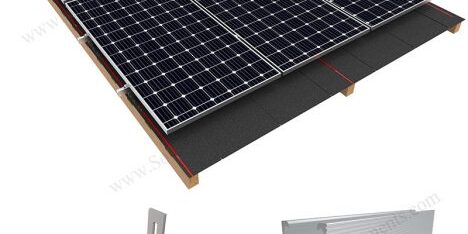

For residential solar installers and homeowners, asphalt shingle roofs represent one of the most common—yet delicate—installation environments. The primary challenge isn’t just holding the panels in place; it’s doing so without compromising the roof’s waterproofing integrity or requiring invasive structural modifications. The SPC-RF-IK14-DR asphalt shingle mounting system addresses this directly. By utilizing a side-mounted bracket design that anchors beneath the shingles, this system eliminates the need for through-roof penetrations, drastically reducing leak risks and installation time. This article details why this approach is becoming the standard for safe and profitable shingle roof projects.
1. Non-Penetrating Design: The Key to Zero-Leak Installations
The most significant advantage of the SPC-RF-IK14-DR system lies in its ability to secure the solar array without drilling holes into the roof deck. This is a game-changer for preserving the roof’s warranty and long-term integrity.
-
Load Transfer to Structure: The stainless steel hooks are designed to slide underneath the existing asphalt shingles. They are then secured directly to the roof rafters or battens, transferring the weight of the PV system to the building’s primary structure rather than relying on the shingles themselves for support.
-
Preservation of Waterproofing: Since no holes are drilled through the shingles or the underlying roof membrane, the risk of future leaks is virtually eliminated. This is critical for homeowner peace of mind and reduces costly callbacks for installers.
-
Pre-Assembled Efficiency: Key components arrive pre-configured, minimizing on-site assembly errors and allowing crews to work faster with standard tools. This “lift-and-place” methodology cuts labor time significantly.
2. Engineered for Extreme Weather: Durability Meets Compliance
A mounting system must be as resilient as the panels it holds. The SPC-RF-IK14-DR is built to withstand decades of harsh environmental exposure while meeting stringent international standards.
-
Military-Grade Materials: The core components are constructed from SUS304 stainless steel and high-strength aluminum alloy. This combination offers exceptional corrosion resistance, making it suitable for coastal areas with high salt exposure and regions with high humidity.
-
Extreme Load Ratings: The system is rigorously tested to withstand wind loads up to 60 m/s (equivalent to a severe hurricane) and snow loads of 1.4 kN/m². This ensures the array remains secure under the most adverse conditions, protecting both the asset and the roof.
-
Full Compliance: The design adheres to major international building codes, including AS/NZS 1170, DIN 1055, and IBC2009, providing a clear path for permitting and inspection approval.
3. The Installation Advantage: Speed and Simplicity
For EPCs, time on the roof directly impacts project profitability. The streamlined process of this system makes it ideal for high-volume residential deployments.
-
Positioning: Installers carefully lift the edges of the asphalt shingles at predetermined points (based on rafter layout) to expose the wood structure beneath.
-
Hook Fixing: The stainless steel hooks are positioned and firmly fixed to the rafters using structural screws. The shingles are then carefully placed back over the hook’s base, creating a seamless, waterproof seal.
-
Rail Assembly: Aluminum rails are snapped or bolted onto the hooks. The pre-assembled nature of the components means rails can be leveled and connected quickly.
-
Panel Mounting: Solar panels are secured using standard mid and end clamps, completing a robust and reliable array.
4. Why This System is a Game-Changer for Residential Solar
Beyond the technical specs, the SPC-RF-IK14-DR delivers tangible business and homeowner benefits.
-
Reduced Liability: By removing the risk of roof damage and leaks, installers can offer stronger warranties and reduce costly post-installation service calls.
-
Faster ROI: The combination of pre-assembly and a simple installation process means projects are completed faster, improving crew utilization and profitability.
-
Long-Term Reliability: With a typical 10-year product warranty and a design life that matches the PV modules (25+ years), this system is a “set-and-forget” solution that protects the client’s roof and energy investment.
For professional installers seeking a reliable, efficient, and safe way to tackle asphalt shingle roofs, the SPC-RF-IK14-DR represents the current industry standard. It transforms a traditionally high-risk installation into a predictable, high-quality deliverable.
