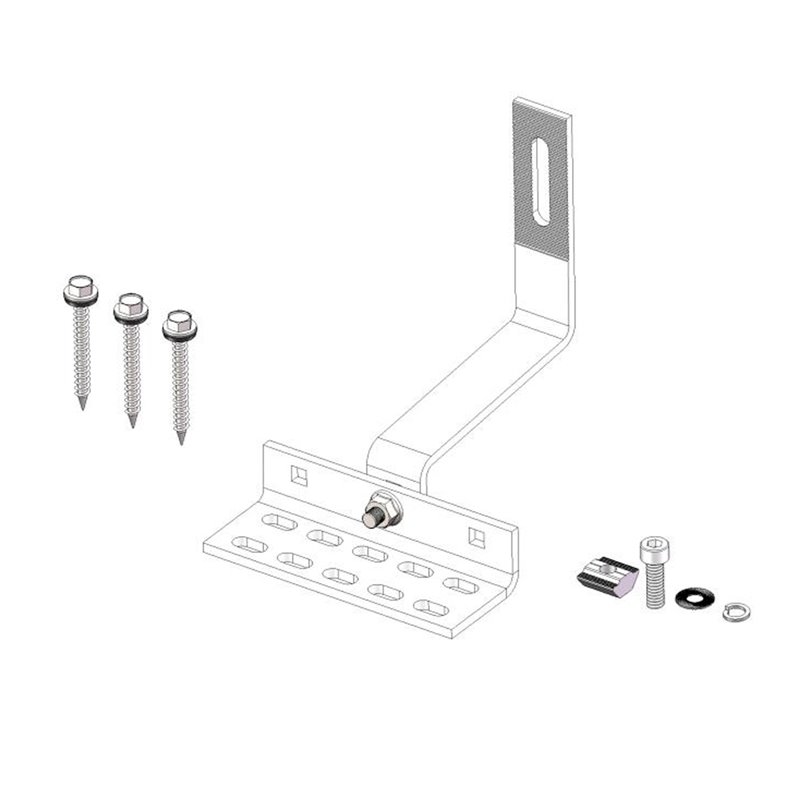

Solar panel curved and flat tile hooks SPC-Tile-Hooks-AC040-001, super sturdy to support tile roofing structure .
90° Tile Roof Hook Arm – 168.5 mm ～178.5 mm ( 6 5/8″ ～7″ mm ) Height, adjustable range 10 mm , with screws, nuts and slots for flat or curved /
Spanish / Roman / Clay tile roofing .
Model : SPC-Tile-Hooks-AC040-001
Item : Solar Panel Tile Roof mounting Hooks ;
Finishing : Sandblasting;
Material : SUS 304 Stainless Steel ;
Total Size : 140 mm ( Long) × 179 mm ( Deepth) × 168.5 mm ～178.5 mm (Height) /
5 1/2″ (L) × 8 1/16″ (D) × 6 5/8″ ～ 7″(H) ;
Bottom End to Top End : 168.5 mm ～178.5 mm (Height) / 6 5/8″ ～ 7″;
Thickness : 5 mm ;
Rail Slot Size : 10 mm × 47 mm ( 3/8″ ×1 7/8″ );
Matched Bolts & Nuts Sizes:
1) SUS 304 Hexagon Head Allen Bolt M8 mm X 25 mm x 1 unit;
2) M8×13 Ribbed Lock washers (SUS304) x 1 ;
3 ) D8 Spring washers ( SUS 304 ) x 1;
4) M8 T sliding nut ;
Base Plate Sizes : 140 mm X 54 mm X 33 mm ( 5 1/2″ × 2 1/8″ × 1 5/16″ ) ;
Matched Bolts & Nuts for plate and lower arm joint ( 3 holes size : 8.5mm × 8.5mm):
(1) SUS 304 stainless steel Carriage bolt M 8 mm X 25 mm x 1 unit ;
(2) SUS304 stainless steel hex flange nut x 1 unit ;
Mounting Screw Slots Size : 9 mm X 18 mm ( 10 holes per plate, 2 R X 5 C matrix) Arrangement ;
Matched Screw Size: Hex Washer Head timber screws 6.3 mm (1/4″) x 80 mm ( 3 1/8” ) x 3 units;
Weight : 852 (g) / 1.88 (lb) ;
Packing : 50 pieces / carton ;
Packing Size : 540 mm ×220 mm × 200 mm /
21 1/4″ × 8 11/16″ × 7 7/8″
This Solar Tile Hook Model SPC-Tile-Hooks-AC040-001 is a stainless steel bracket for fixing Curved / Spanish / Roman / Clay / Flat roofing support .
Our Solar Parts & Components QC Team
stictly test following parameters of this tile hooks SPC-Tile-Hooks-AC040-001 item before delivery:
Waterproof IP class , downward load test , uplifting test, snow and wind loading…

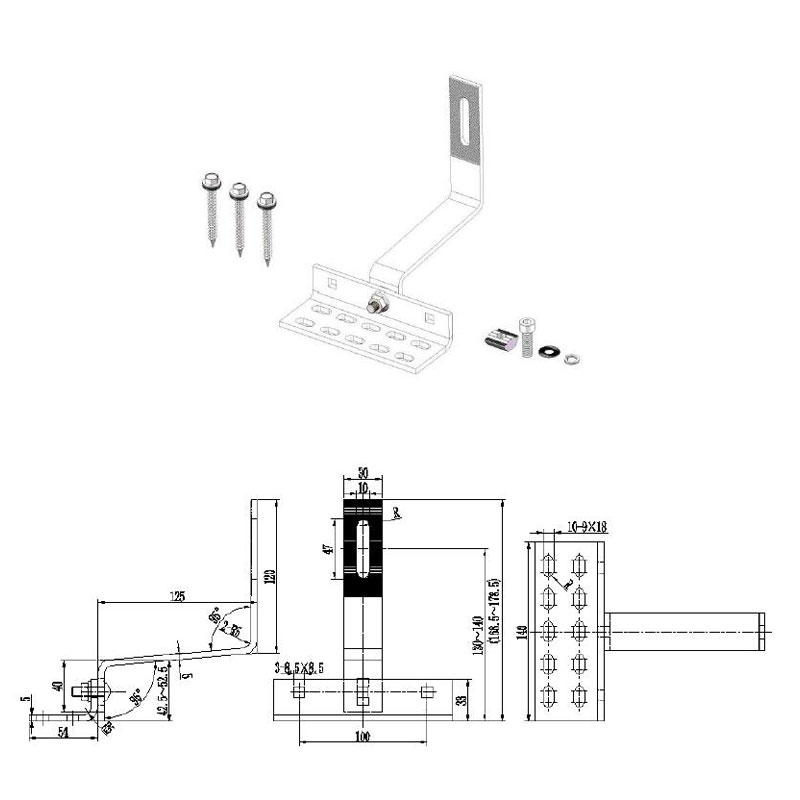

SUS 304 Solar side mounting tile roofing hooks drawing, sizes, profile for tile roofing, adjustable .
