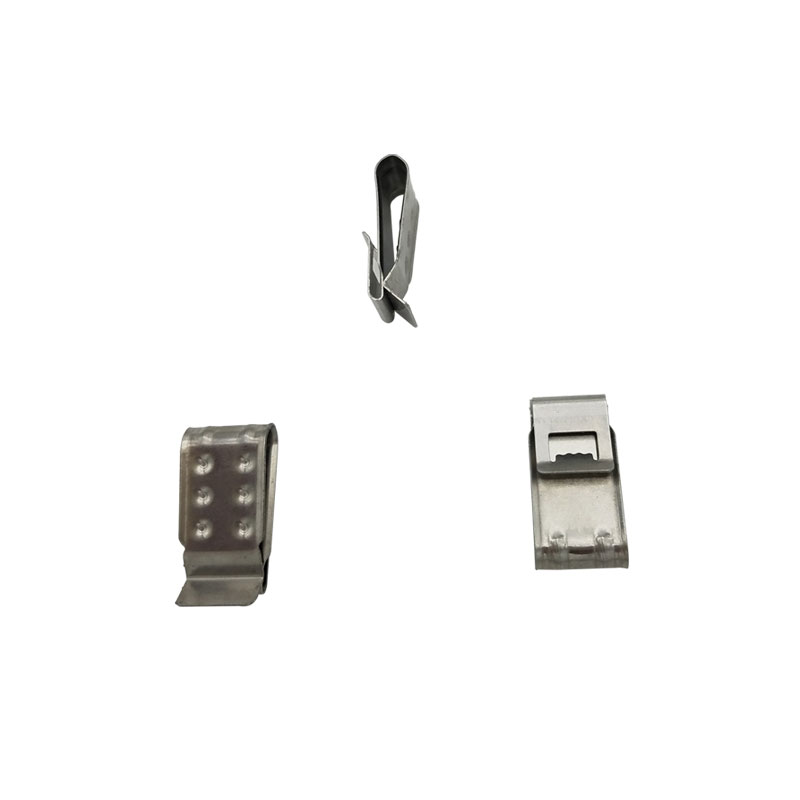

Solar Mounting Component – Solar Cable Clip
- Product Type: Solar Cable Clip Four Lines
- Product Model:SPC-PV-CC01
- Material: SUS 304 Stainless Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: PV module Mounting Parts
Product Description
Item Number : Solar-Cable-Clips-4-Lines
This 4 lines solar cable clips are designed for wire arrays .
It’s suitable for one to four wires go through with clean and tidy appearance and prevent wires from damage .
Reliable solution for solar panels mounting , this 4 lines pv modules clips can be used for all environments : ground, sea shore,
mounting hill, desert …
Solar cable clips ( 4 lines ) is a good kit choice for solar PV wire managements , prevent cables laying on roofs or floors .
The stainless steel spring shrapnel on the back , can fix solar cable clips on aluminum rails well .
This four lines clips can be also used for inverter cables , power cables …
Advantages:
(1) Can fix 1 – 4 cables going through ;
(2) Stainless Steel material, anti-corrosion ;
(3) Fits for all mounting projects : roofing / ground / carport / power station / mobile …
(4) Wire diameter can be from 4.0 mm – 8.0 mm .
As a professional solar module mounting factory, we provide a variety of types of solar cable clips, provide one-stop solar installation solution. Factory direct sales, quality service! For more information, please visit our website: www.solarpartscomponents.com
| Brief Descriptions : | |
| 4 lines Solar Cable Clips for solar panels installation | |
| Item type: | Solar Mounting Components |
| Technical Parameters : | |
| Installation Site : | Ground / Roof / Carport solar panel mounting |
| Profile Material : | SUS 304 Stainless Steel |
| Color : | Polish |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN/M2 |
| PV Modules : | Framed |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Life Span | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
Drawing & Size for Solar cable clips 4 lines, SPC-PV-CC01
Solar cable clips 4 lines size and drawing , SPC-PV-CC01
Inquiry of Solar cable clips 4 lines
Q:
Pls.quote your best lowest price for following
4way solar cable clip
Quantity :50000nos
A:
Appreciated for inquiry of 4way cable clip.
Recommend our best selling 4 way cable clip–SPC-PV-CC01.
Q:
Can you please quote for it.
Quantity -50000nos
Pls send price in RMB
Need price FOB Guangzou
A:
how will you export to India?

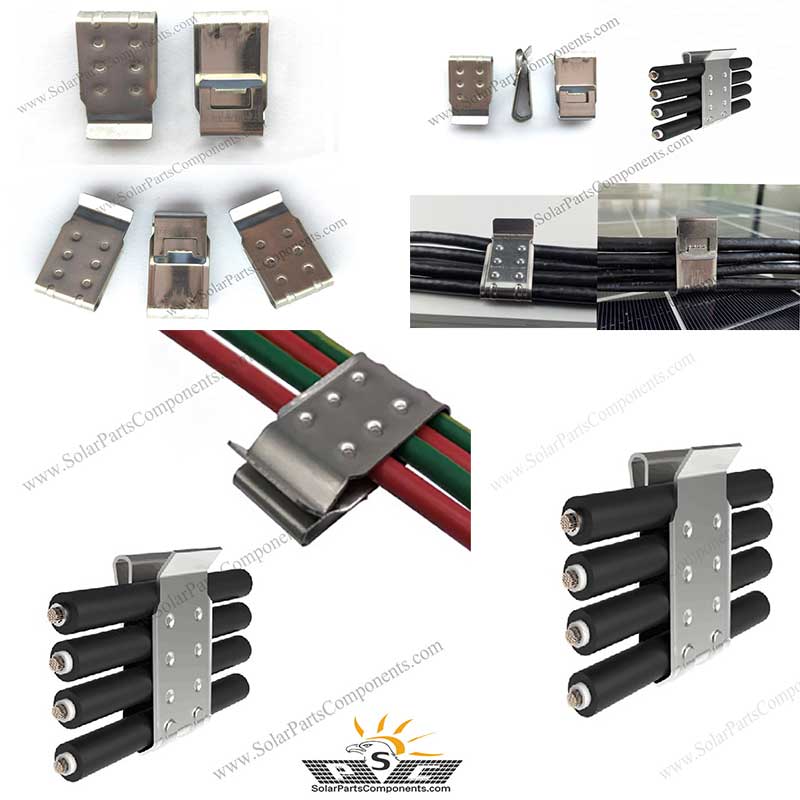

Solar cable clips
Solar cable clips 4 lines
Solar cable clip 4 lines
This model SPC-PV-01 is designed for arrange 1 to 4 PV #10-14AWG cables.seated securely and firmly.
Use our high quality stainless steel 4 lines Solar Cable Clip to keep the solar panel interconnect wires neatly connected to solar panel frames to prevent them drop below array.The solar cable clip are curved alone the edges to eliminate wire chafing.
4 lines Solar Cable Clip factory
Application: Solar Mounting Installation
Suitable Cable Size: 2x4mm, 2x6mm, 4x4mm, 4x6mm
Number of cable: 1 to 4ways
Material: 304 stainless steel
Thickness: 0.5mm
Easy and fast Installation without any tools.
Many sizes available to suit all cable configurations
Able to installed on the frame thickness between 1.5mm-3mm
Faired edges of the clip protect cables from damages.

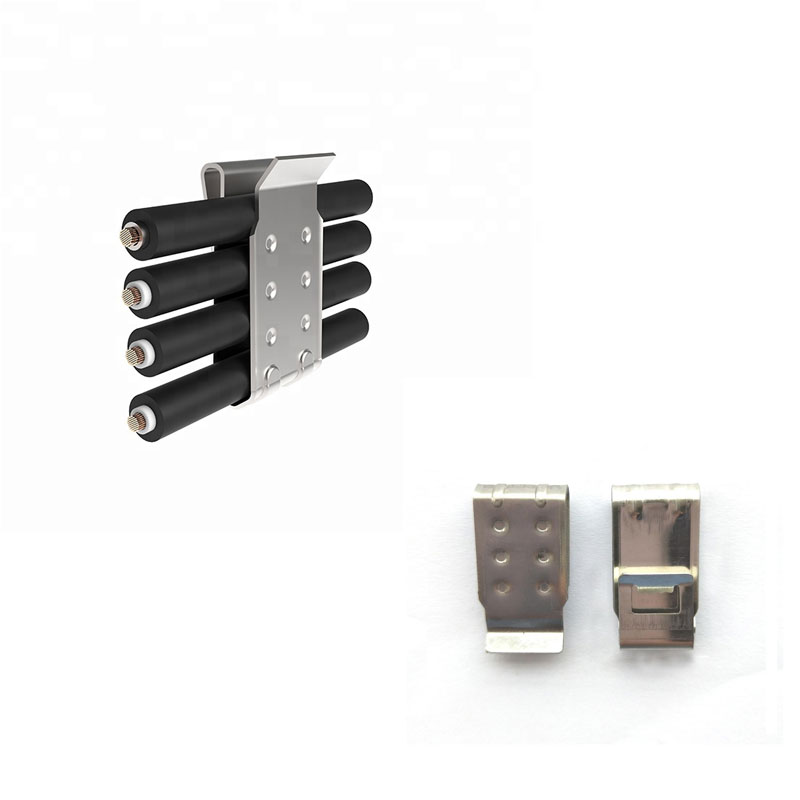

Method of using Solar cable clips 4 lines SPC-PV-CC01.
4lines cable clip for PV factory are designed for the management of 4 wires, and the acceptable wire diameter range is 4.0mm-8.0mm.
The cable clip is of the 6.4-wire style and has a barb design on the back. During installation, the cable clip is inserted into the frame of the component,
which is conducive to the cable clip being fixed on the component steadily.
Stainless steel cable clips for pv mounts
The stainless steel cable clamp used for the four PV-type wires ensures the neatness of the wires and solves the trouble and danger caused by the disorder of the wires.

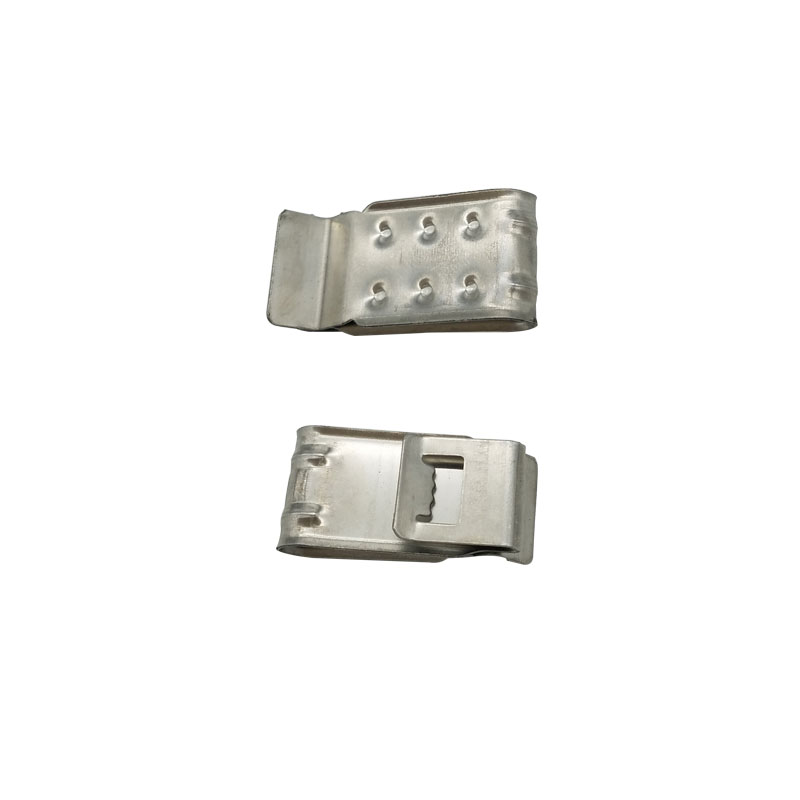

Solar cable clips supplier
Item Number : SPC-PV-CC01
It’s suitable for 1 to 4 cables to go through with a clean and tidy
appearance and prevent wires from stripping off.
Advantages : (1) Can fix 1 – 4 cables going through;
(2) Stainless Steel material, anti-corrosion;
(3) Wire diameter can be from 4.0 mm – 8.0 mm.
(4) Fits for all mounting projects: roofing / ground / carport / power station / mobile …
Drawing Size:
Solar cable clips supplier

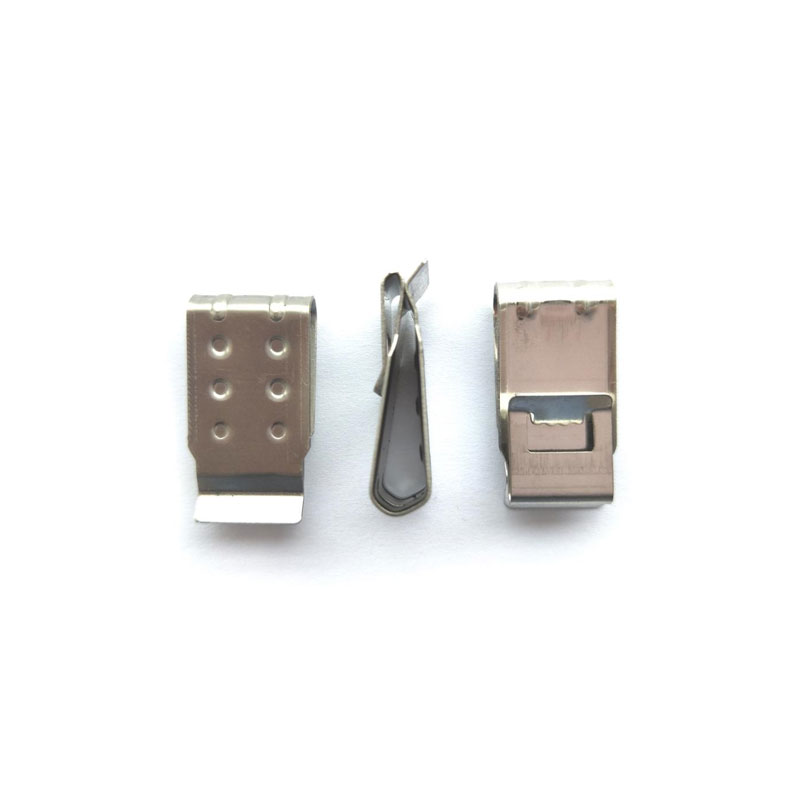

Solar Cable Clips Supplier
What is solar panel wire clips?
Solar wire clips is a good solution for wire management when installing panels. This post is showing its features to make the functions clearly.
How to using this 4 lines solar cable clips ?

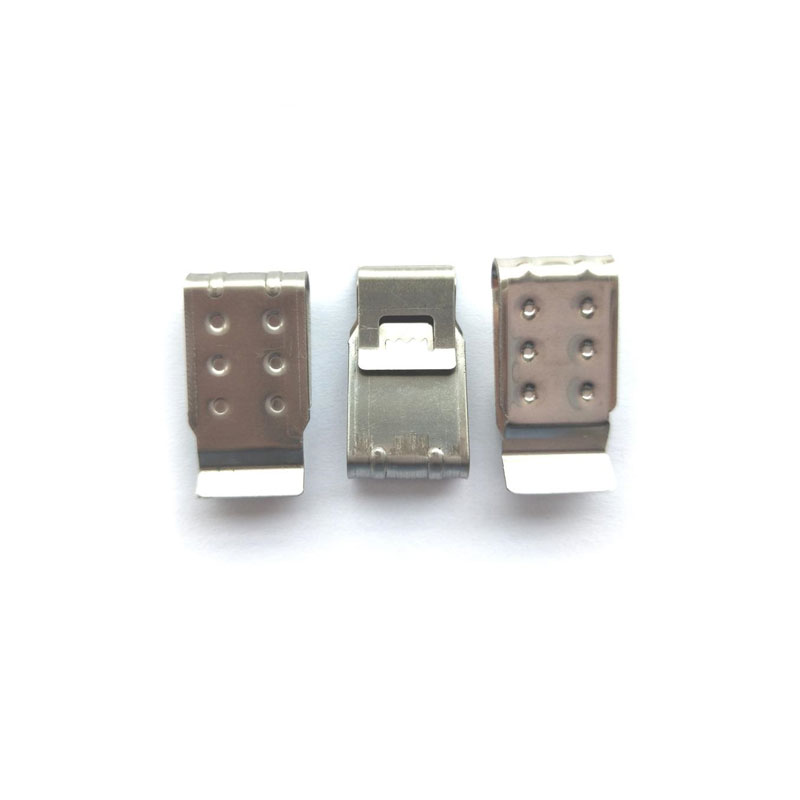

solar cable clips for 4 lines side details ,
