3 / 4 lines Solar Cable Clips
- Product Type: Solar Cable Clip
- Product Model:SPC-PV-CC04
- Material: Steel
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Solar Panel Mounting Parts
Product Description
3 / 4 lines Solar Cable Clips is used to position wires on solar arrays.
We use good quality high strength SUS 304 steel for our PV wire cable clips .
This pv cable clip can accommodate two wires well . It’s a reliable clip of fixing solar interconnect wires to panel frames .
Solar clips can manage PV solar wires between solar panels to inverter . Unique curved & flared edge design can prevent wire chafing during installation.
One PV Solar wire clip per three – four feet of solar rail distance is recommended .
This 3 / 4 line SUS 304 cable clips is durable and reliable performance for fixing cables .
By use this PV module wire clips , three cables can go through tightly and neatly by three lines .
Our three lines cable clip is specially designed for solar mounting systems, easy installation .
Advantages :
- Easy and quick sliding onto modul frame , no tools required ;
- Anti-corrosion 304 stainless steel in materials ;
- The Smooth edges for cable clips which prevent damage to insulation ;
- Keep solar cables neatly .
- firmly and securely seated after installed.
Material List for Solar Cable Clip Components : Corrosion resistant sus304 stainless steel.
If you’re interested in solar mounting system, we’d love to discuss with you about more and answer any questions you might have. As a professional manufacturer of PV mounting system, SPC is a great option for you.
Click here for more details and information:
www.SolarPartsComponents.com
| Brief Descriptions : | |
| Solar Cable Clips for solar panels installation | |
| Item type: | Solar Mounting Components |
| Technical Parameters : | |
| Installation Site : | Ground or Roof solar panel mounting |
| Profile Material : | SUS 304 Stainless Steel |
| Fasten Parts : | SUS 304 Stainless Steel |
| Color : | zinc coating |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN/M2 |
| PV Modules : | Framed |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed LifeSpan | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
Drawing & size for 3 / 4 lines Solar Cable Clips, SPC-PV-CC04
3-4-Solar-Cable-Clips-SPC-PV-CC04-EN drawing and size

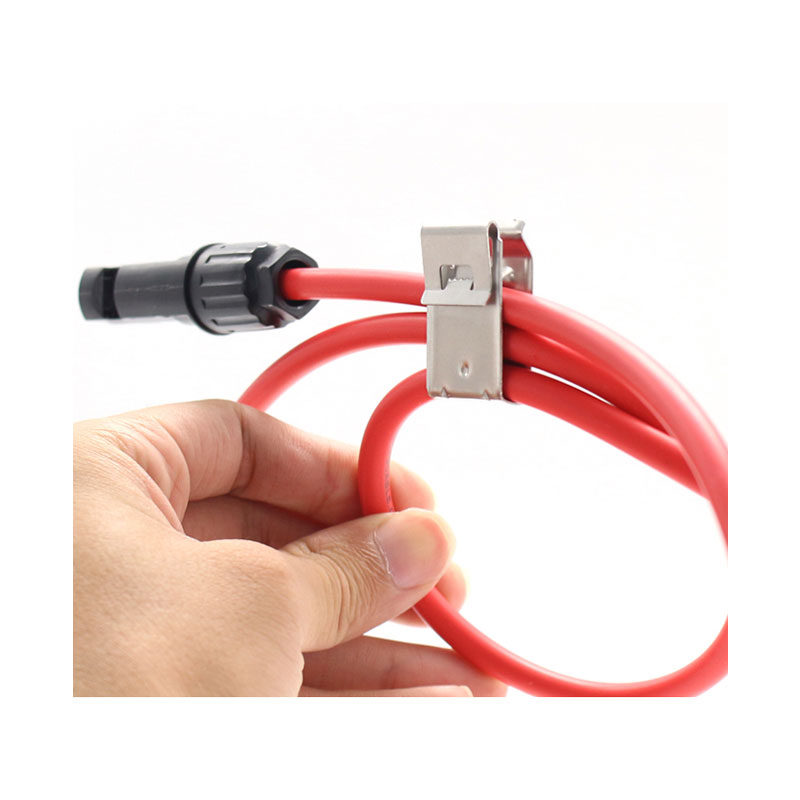

How to use this 3 / 4 lines solar cable clips ?
Drawing Size detail for this 3 / 4 lines cable clips as following :

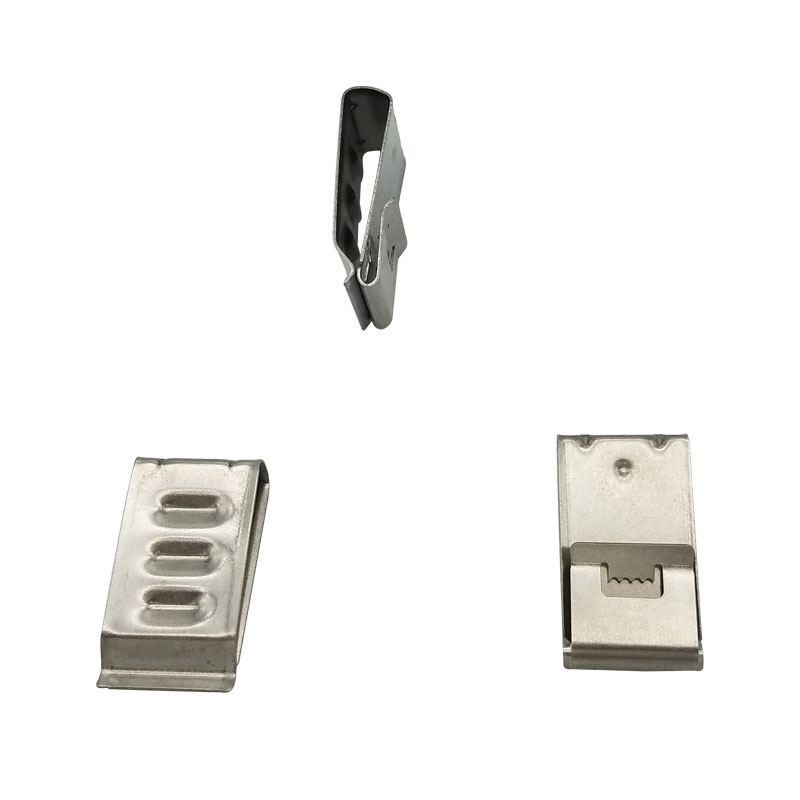

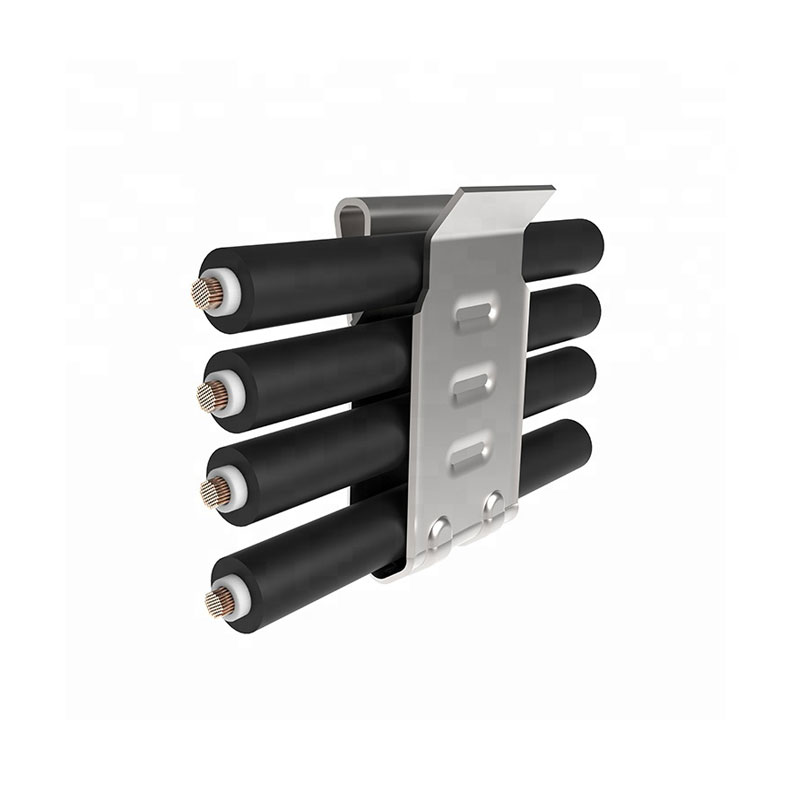

solar cable clips for 3 / 4 wire lines
Drawing for 3 / 4 lines solar cable clips ?

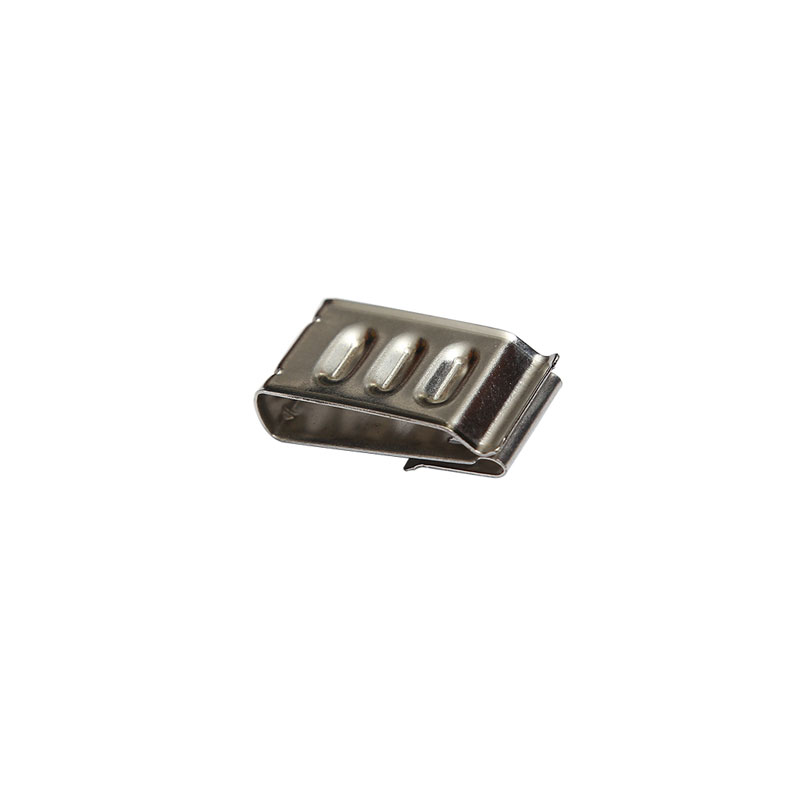

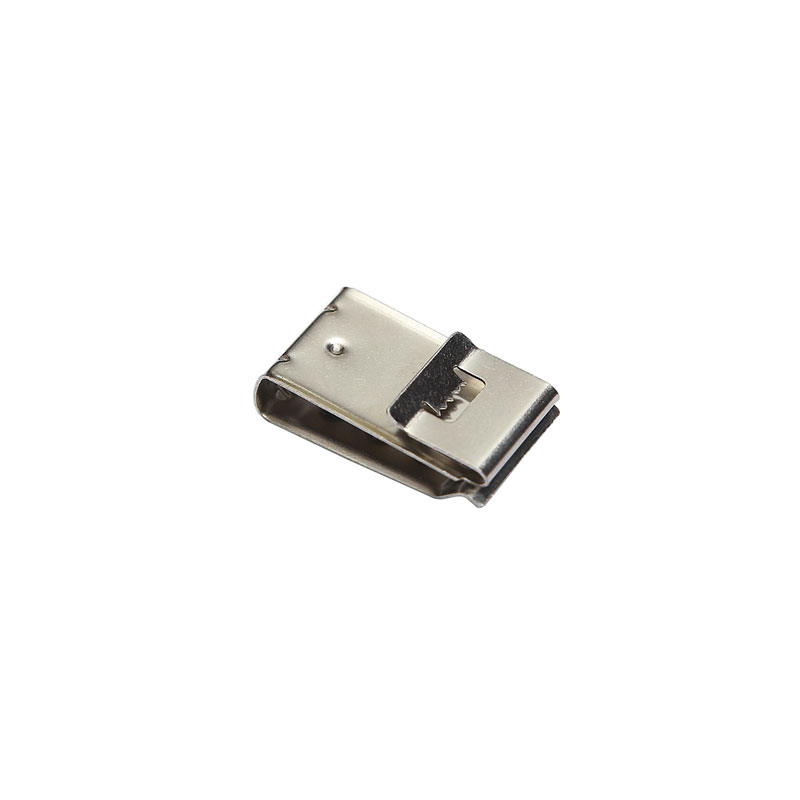

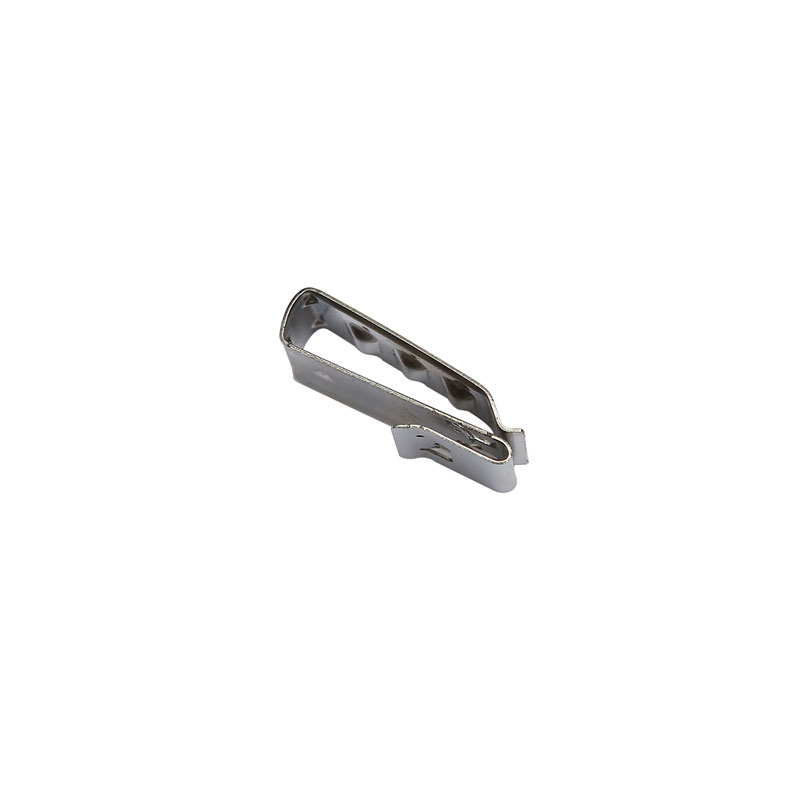

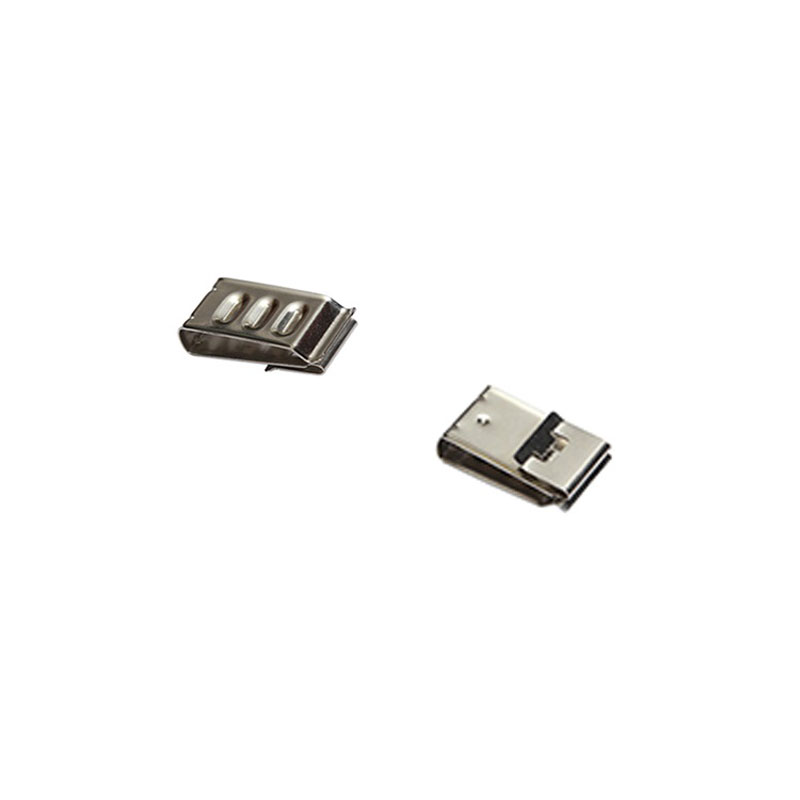

stainless steel solar PV cable clips
Solar cable clips simplify cable management. They are widely used in the positioning of solar panel array cables to prevent cable damage.
