HDG Rail Connector
- Product Type:Solar Mounting Components
- Product Model:HDG rail splice
- Material: HDG stell
- Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Solar Module Orientation: Landscape / Horizontal
- Application: solar rails mounting
Product Description:

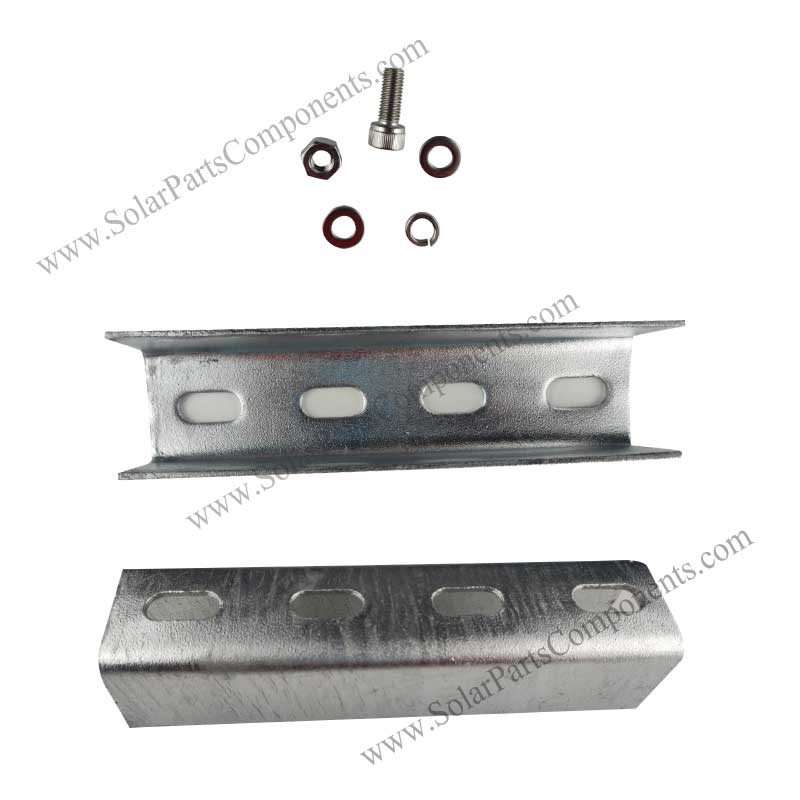

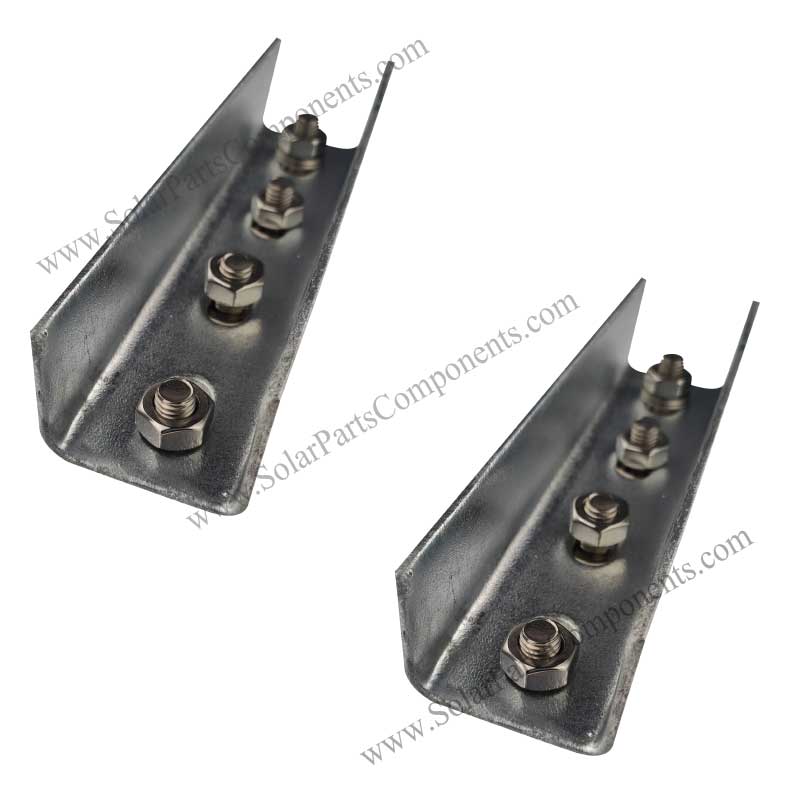

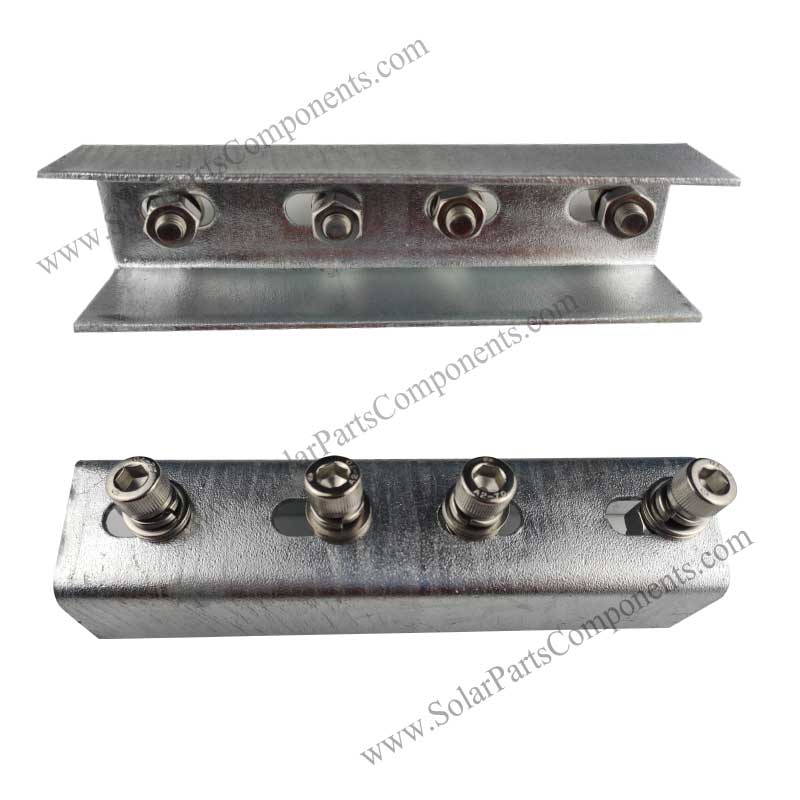

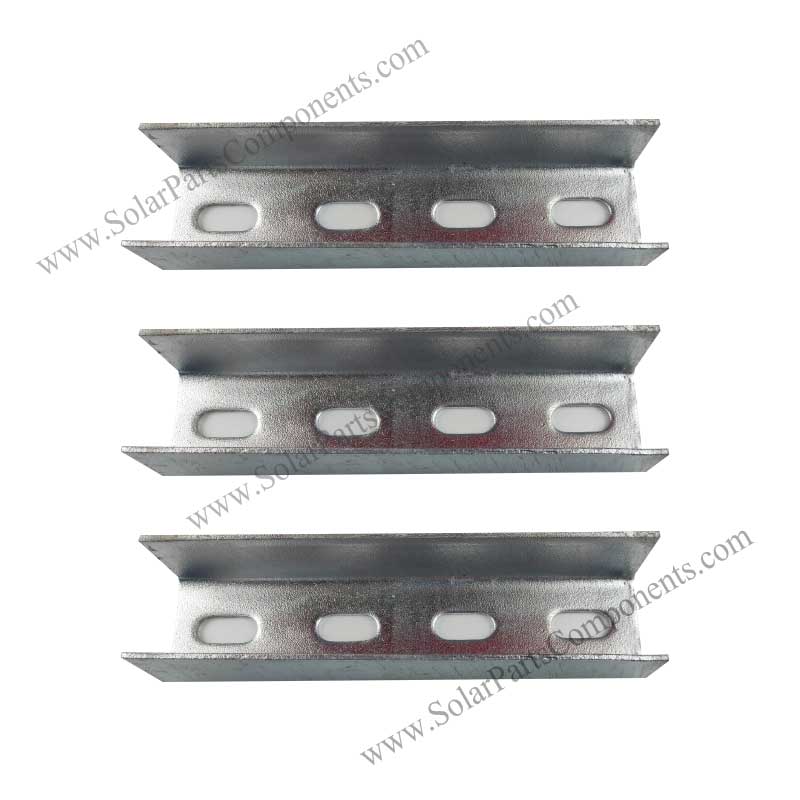

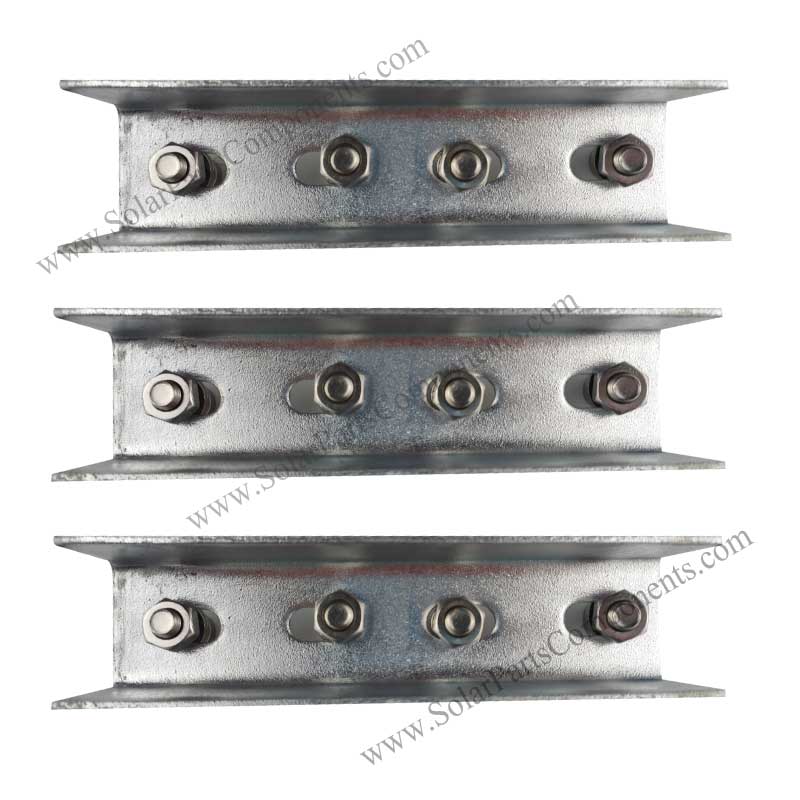

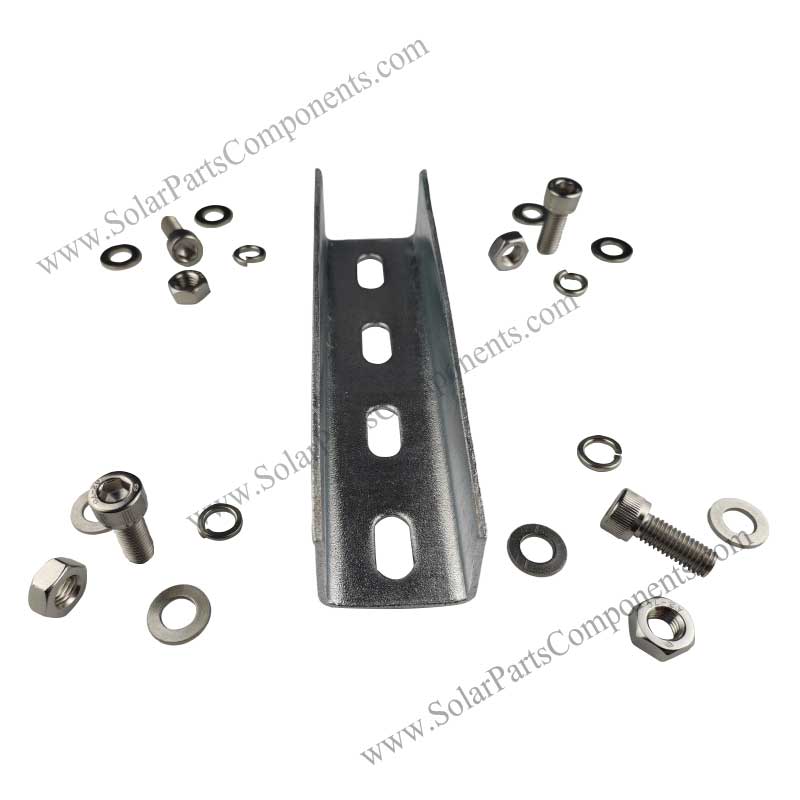

Galvanized steel rail connector is designed for HDG steel rail solar mounting.It is used for long rails span, connect two steel c rails. Making them seamlessly stronger when joined together,complete with bolts and nuts.
Four pre-drilled holes design,very easy to joint two rails,often be thought to be one single rail. It provides fast and easy installation for solar mounting..
This HDG rail connector is made of Q235 steel with hot dig galvanized surface,high corrosion resistance. It is suitable for joint hot dip galvanized rail(U/C channel).The hot dip galvanized steel rail connector makes the solar PV mounting system features no re-welding and drilling, adjustable and reusable.Strictly quality control ensure the performance and life of the product.
Feature of galvanized steel rail connector:
- Fast& simple installation;
- Anti-corrosion and rust-resistance;
- Stand up to extreme weather;
- HDG steel,strong and durable;
- Reduce costs and reduce installation time;
As a solar mounting components manufacturer with more than 10 year experience, except the galvanized steel rail splice, we also produce aluminum rail splice and stainless steel rail connector. Please tell us which type of the rail connector you need before you purchase.If you have any needs, please feel free to contact us: www.SolarPartsComponents.com
| Brief Descriptions: | |
| Solar Mounting Components- Solar Mounting Rail Connector | |
| Item type: | Galvanized steel rail connector |
| Type: | HDG rail splice |
| Installation Site: | HDG rail mounting |
| Profile Material: | Q235 steel |
| Fasten Parts: | SUS304 Screws |
| Wind Load: | 60 m / s |
| Snow Load: | 1.4 KN / M2 |
| PV Modules: | Framed, Frameless |
| Module Orientation: | Portrait and Landscape |
| Standards: | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955: 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed Lifespan | 25 years |
| Packing Details: | |
| Inner: | Bubble bag+inner box+Carton |
| Outer: | Wooden Box, Steel Pallet, MDF, etc |
- Overview
-
Product Description:
Galvanized steel rail connector is designed for HDG steel rail solar mounting.It is used for long rails span, connect two steel c rails. Making them seamlessly stronger when joined together,complete with bolts and nuts.
Four pre-drilled holes design,very easy to joint two rails,often be thought to be one single rail. It provides fast and easy installation for solar mounting..
This HDG rail connector is made of Q235 steel with hot dig galvanized surface,high corrosion resistance. It is suitable for joint hot dip galvanized rail(U/C channel).The hot dip galvanized steel rail connector makes the solar PV mounting system features no re-welding and drilling, adjustable and reusable.Strictly quality control ensure the performance and life of the product.
Feature of galvanized steel rail connector:
- Fast& simple installation;
- Anti-corrosion and rust-resistance;
- Stand up to extreme weather;
- HDG steel,strong and durable;
- Reduce costs and reduce installation time;
As a solar mounting components manufacturer with more than 10 year experience, except the galvanized steel rail splice, we also produce aluminum rail splice and stainless steel rail connector. Please tell us which type of the rail connector you need before you purchase.If you have any needs, please feel free to contact us: www.SolarPartsComponents.com
- Specification
-
Brief Descriptions: Solar Mounting Components- Solar Mounting Rail Connector Item type: Galvanized steel rail connector Type: HDG rail splice Installation Site: HDG rail mounting Profile Material: Q235 steel Fasten Parts: SUS304 Screws Wind Load: 60 m / s Snow Load: 1.4 KN / M2 PV Modules: Framed, Frameless Module Orientation: Portrait and Landscape Standards: AS/NZS 1170 DIN 1055 GB50009-2012 IBC2009 TUV JIS C 8955: 2011 International Building Code IBC 2009 California Building Code CBC 2010 Warranty 10 years Designed Lifespan 25 years Packing Details: Inner: Bubble bag+inner box+Carton Outer: Wooden Box, Steel Pallet, MDF, etc - FAQ
-
