Solar Ground Installation-SPC-JA-4H-PCW-Step-9-4

Solar Mounting Installation instruction (SPC-JA-4H-PCW)

 Installation steps for solar single pile ground mounting system, SPC-JA-4H-PCW Step 1:Install the connector Pole joints and diagonal brace joints are generally packed in cartons when shipped. After the “几” shaped galvanized pole is driven into the soil according to the construction drawings, install the joints at the joints of the purlin and the poles…

Solar Ground Installation-SPC-HA-4H-PCW-Step-10-2

PV panel pole mounting system Installation, SPC-HA-4H-PCW

 Installation steps  for PV panel pole mounting system, SPC-HA-4H-PCW Step 1:Install the connector Pole joints and diagonal brace joints are generally packed in cartons when shipped. After the I-steel pole is driven into the soil according to the construction drawings, install the joints at the joints of the purlin and the poles and the joints…

Solar Ground Installation-SPC-GA20-4H-CW-Step-10-3

Ground Mounting installation instruction for SPC-GA20-4H-CW

 Installation steps for ground mounts SPC-GA20-4H-CW Step 1: Pre-assembly and installation of purlin When shipping, the factory has pre-assembled the purlin, jackets, columns, and grounding screws with bolts. After the bracket arrives on site, only need to open the pre-assembly, rotate the square tube in the direction on the drawing, and then remove the pre-assembled…

Solar Ground Installation-SPC-GA-4H-N-Step-10-2

Installation instruction for solar ground mounts(SPC-GA-4H-N)

 Installation steps for solar panel ground mounting landscape Step 1: Pre-assembly and installation of purlin When shipping, the factory has pre-assembled the purlin, jackets, columns, and grounding screws with bolts. After the bracket arrives on site, only need to open the pre-assembly, rotate the square tube in the direction on the drawing, and then remove…

Solar Metal Roof Installation-SPC-RF-CK05-HR-1.2-1

Solar metal roof mounting system manual, SPC-RF-CK05-HR

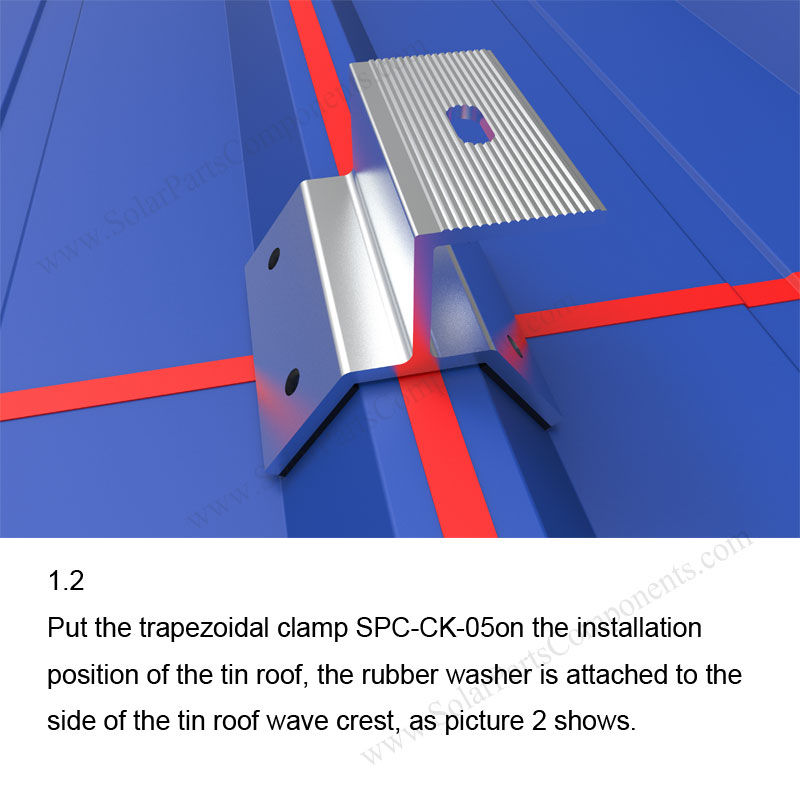

Solar metal roof mounting system,SPC-RF-CK05-HR installation steps 1.1 Clean the tin roof, and according to the site construction drawings, Draw a line at the installation position of the tin roof clamp SPC-CK-05 as picture 1 shows. 1.2 Put the trapezoidal clamp SPC-CK-05on the installation position of the tin roof, the rubber washer is attached to…

Solar Metal Roof Clamp Installation-SPC-CK-05-1.1

Installation instructions for trapezoidal roof clamp,SPC-CK-05

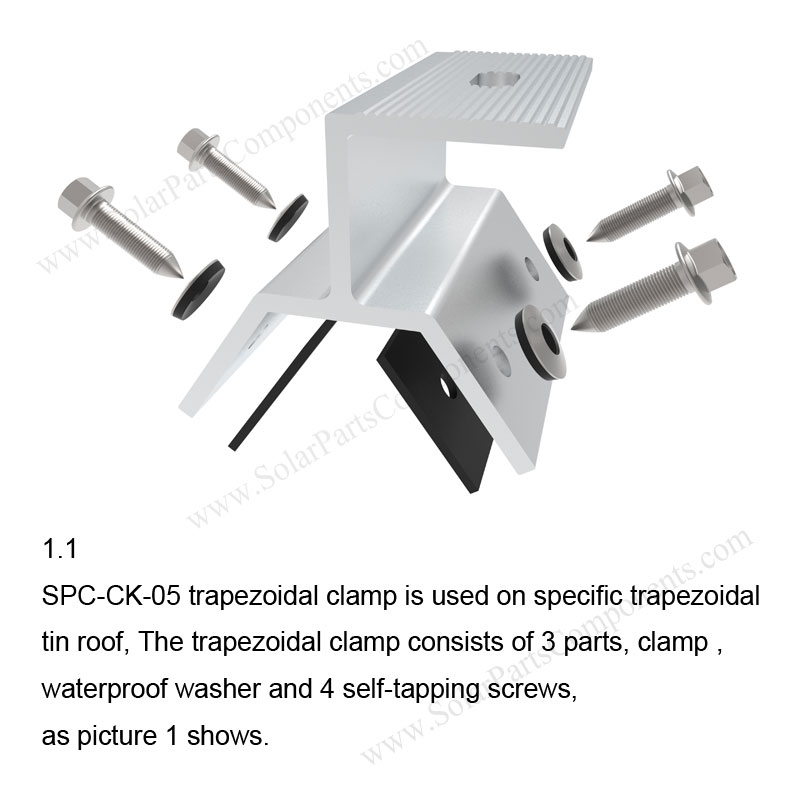

ROOF SOLUTION Installation Manual installation instructions for SPC-CK-05 trapezoid clamp 1.1 SPC-CK-05 trapezoidal clamp is used on specific trapezoidal tin roof, The trapezoidal clamp consists of 3 parts, clamp , waterproof washer and 4 self-tapping screws, as picture 1 shows. 1.2 The size of the trapezoidal tin roof corresponding to the SPC-CK-05 trapezoidal clamp has…

Solar Metal Roof Installation-SPC-RF-CK04-HR-1.5

Solar mounting system installation, SPC-RF-CK04-HR

Solar mounting system, SPC-RF-CK04-HR installation steps 1.1 Clean the tin roof, and according to the site construction drawings, Draw a line at the installation position of the tin roof SPC-CK-04 trapezoidal clamp as picture 1 shows. 1.2 Put the SPC-CK-04 trapezoidal clamp on the installation position of the tin roof, the rubber washer is attached…

Solar Metal Roof Clamp Installation-SPC-CK-04-1.1

Installation instructions for SPC-CK-04 trapezoid clamp

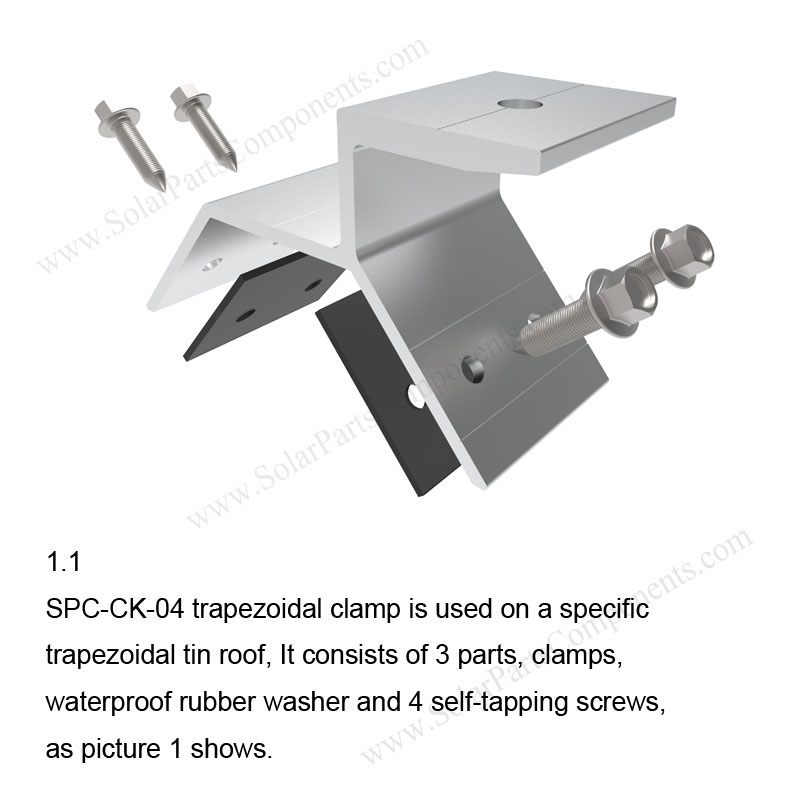

ROOF SOLUTION Installation Manual Installation instructions for SPC-CK-04 trapezoid clamp 1.1 SPC-CK-04 trapezoidal clamp is used on a specific trapezoidal tin roof, It consists of 3 parts, clamps, waterproof rubber washer and 4 self-tapping screws, as picture 1 shows. 1.2 The size of the trapezoidal tin roof corresponding to the SPC-CK-04 trapezoidal clamp has a…
