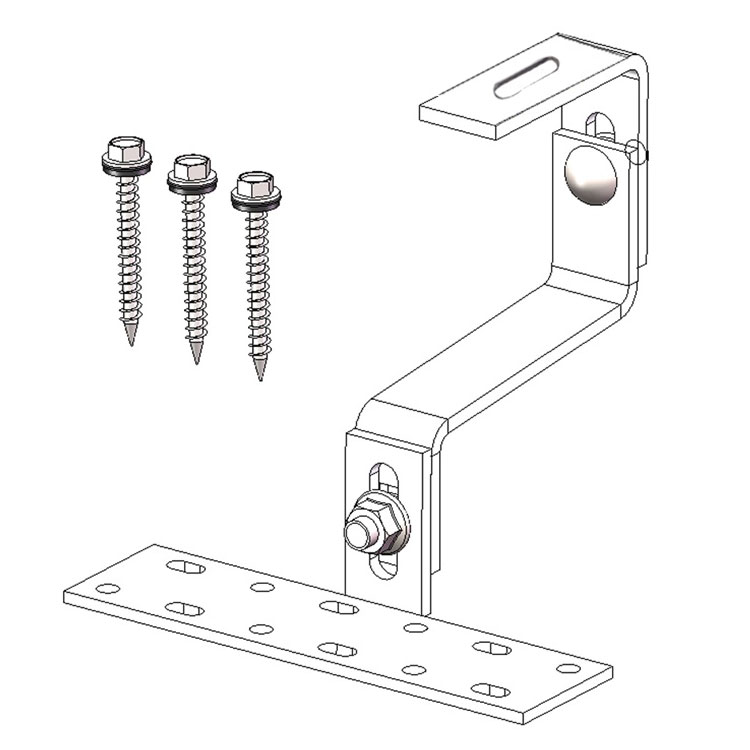

Solar panel curved tile roof hooks SPC-Tile-Hooks-AC012-B01, is super sturdy to support tile roofing mounting .
180° Roof Hooks Arm – 130 mm ～195 mm ( 3 1/8″ ～7 11/16″ ) Height, double adjustable range 65 mm ( 2 9/16″ ), with screws, nuts and slots for tile
roofing .
Model : SPC-Tile-Hooks-AC012-B01
Item : Solar Tile Roof mounting Hooks ;
Finishing : Sandblasting;
Material : SUS 304 Stainless Steel ;

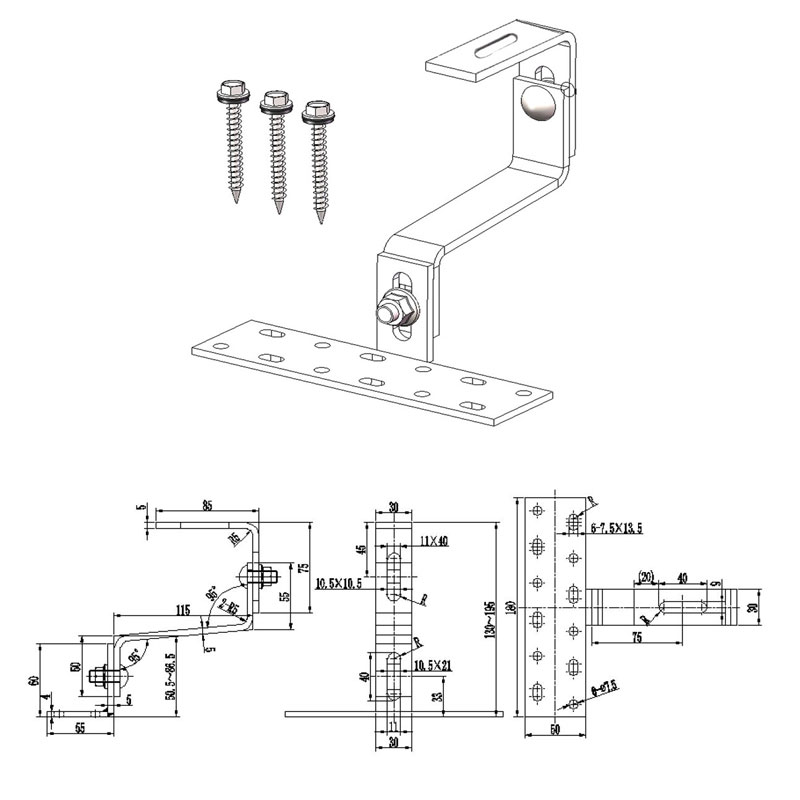

Total Size : 180 mm ( Long) × 170 mm ( Deepth) × 130 mm ～195 mm (Height) /
7 1/8″ (L) × 6 11/16″ (D) × 5 1/8″ ～ 7 11/16″(H) ;
Thickness : Base Plate 4 mm / arm 5 mm ;
Rail Slot Size : 9 mm × 40 mm ( 3/8″ × 1 9/16″ );
Matched Bolts & Nuts Sizes:
1) SUS 304 Hexagon Head Allen Bolt M8 mm X 25 mm x 1 unit;
2) M8 x 13 Ribbed Lock washers ( SUS304 ) x 1 unit;
3) D8 spring SUS 304 washer x 1 units ;
4) M8 T Sliding Nut x1 unit ;
Base Plate Size : 180 mm X 50 mm X 60 mm ( 7 1/8″ × 1 15/16″ × 2 3/8″ ) ;
Matched Bolt & Nut for plate and lower arm joint ( lot Size : 11 mm × 40 mm ):
(1) SUS304 stainless steel Carriage bolt M10 mm X 30 mm x 1 unit ;
(2) SUS304 stainless steel hex flange nut x 1 unit ;
Matched Bolt & Nut for lower arm and upper arm joint ( Slot Sizes : 11 mm × 40 mm )
(1) SUS304 stainless steel Carriage bolt M10 mm X 30 mm x 1 unit ;
(2) SUS304 stainless steel hex flange nut x 1 unit ;
Mounting Screw Slots Size : 7.5mm X 13.5mm ( 6 holes ) & Φ 7.5 mm ( 6 holes ) Cross Arrangement ;
Matched Screw Size: Hex Washer Head timber screws 6.3 mm (1/4″) x 80 mm ( 3 1/8” ) x 3 units;
Weight : 965 (g) / 2.13 (lb) ;
Packing : 50 pieces / carton ;
Packing Size : 540 mm ×220 mm × 200 mm /
21 1/4″ × 8 11/16″ × 7 7/8″

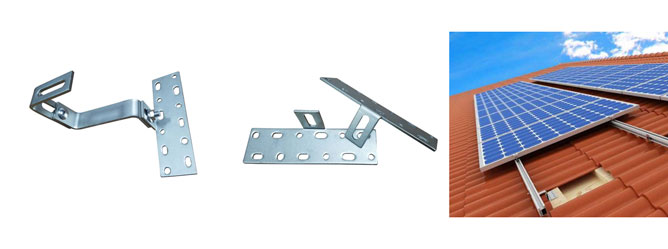

The Solar Universal Tile Hook Model SPC-Tile-Hooks-AC012-B01 is SUS 304 stainless steel bracket fixed roof support used for curved / Spanish / Roam /
Clay tile roofing .
Our Solar Parts & Components QC Team
stictly test following parameters of this tile hooks SPC-Tile-Hooks-AC012-B01 item before delivery:
Waterproof IP class , downward load test , uplifting test, snow and wind loading…
More models of our SUS 304 Solar bottom mounting tile roof hooks, weld less drawing, sizes, profile for tile roofing, adjustable are available from www.SolarPartsComponents.com
