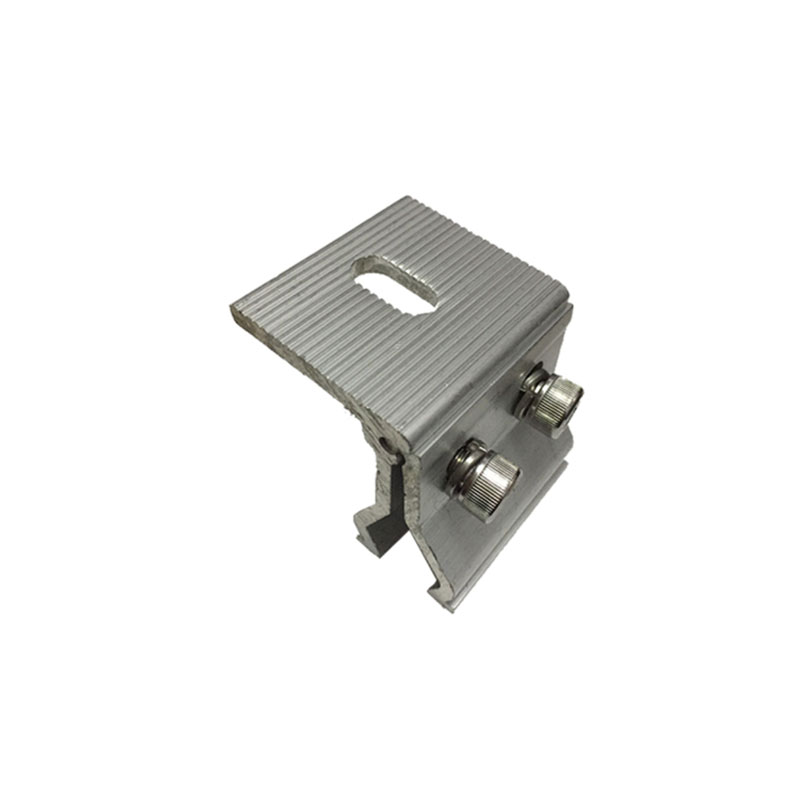

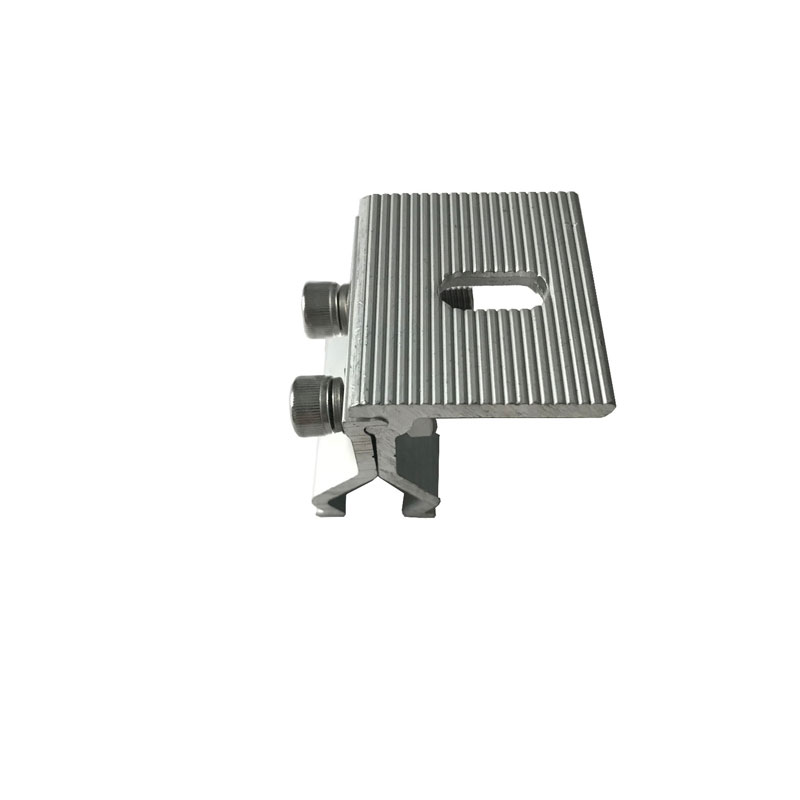

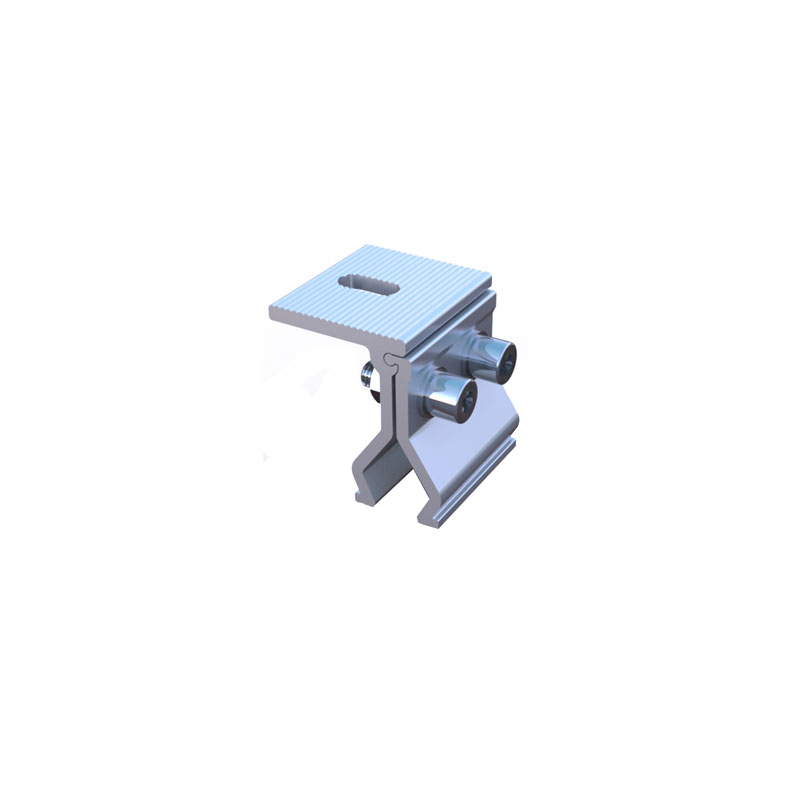

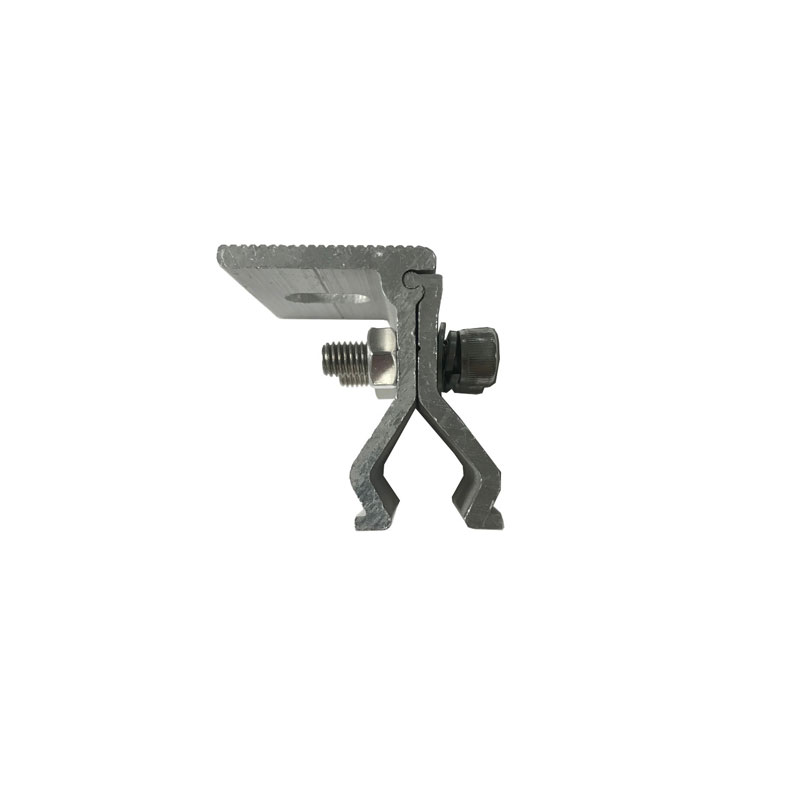

Stand Seam Metal Roofing Clamps
- Product Type: solar metal roof mounting clamps
- Product Model:SPC-CK-20
Material: Aluminium, Steel - Max Wind Load : 60 m/s
- Max Snow Load : 1.4 KN / M 2
- Application: Standing Seam Metal Roofing Solar Installation
Product Description :
Cost effective for this solar stand seam metal roof clamps SPC-SPC-CK-20 whatever for home or business solar project . No penetrating or collapsing old metal roof structure by using our SPC-SPC-CK-20 solar stand seam bracket . Strong tensile and strength 6005 alum in material for our solar stand seam metal roof brackets SPC-SPC-CK-20. Our seam clamp can work specific seam profile well. Simplify , sturdy design guarantee safety of solar mounting systems . Penetration no needed when attaching to stand seam metal roof by using our SPC-SPC-CK-20 model clamp .
Advantages :
- Cost optimized seam bracket for residential or commercial solar mounting installing ;
- No damaging current existing tin, zinc, iron roofing ;
- Simple, effective, economic design seam clamp ;
- 10 years warranty for this spc-002 solar panel stand seam metal roof bracket .
Parts and Components for Stand Seam Metal Roof clamps Model : SPC-CK-20 : (a) one set of Stand seam clamp; (b) two pieces of SUS 304 hex nuts ; (c) two pieces of washer ; (d) 2 pieces of stainless steel bolts
If you need metal roof fixtures or installation systems, we will be happy to create structural design, structural analysis, installation plans for all components, etc. for your project. If you have any needs, please feel free to contact us: www.solarpartscomponents.com
| Brief Descriptions : | |
| Solar Mounting Clamps and Brackets Model SPC-002 for Stand Seam Metal Roof | |
| Item type: | Solar Metal Roof Bracket |
| Type : | Solar Roofing Mounts Clamps |
| Installation Site : | Stand Seam Metal Roofing |
| Profile Material : | Aluminium 6005- T5+ SUS 304 |
| Fasten Parts : | Stainless Steel |
| Color : | Silvery or according to customer requirements |
| Wind Load : | 60 m / s |
| Snow Load : | 1.4 KN / M2 |
| PV Modules : | Framed, Frameless |
| Module Orientation : | Portait and Landscape |
| Standards : | AS/NZS 1170 |
| DIN 1055 | |
| GB50009-2012 | |
| IBC2009 | |
| TUV | |
| JIS C 8955 : 2011 | |
| International Building Code IBC 2009 | |
| California Building Code CBC 2010 | |
| Warranty | 10 years |
| Designed LifeSpan | 25 years |
| Packing Details : | |
| Inner : | Bubble bag+inner box+Carton |
| Outer : | Wooden Box, Steel Pallet, MDF, etc |
Metal Roof Mounting With Clamps

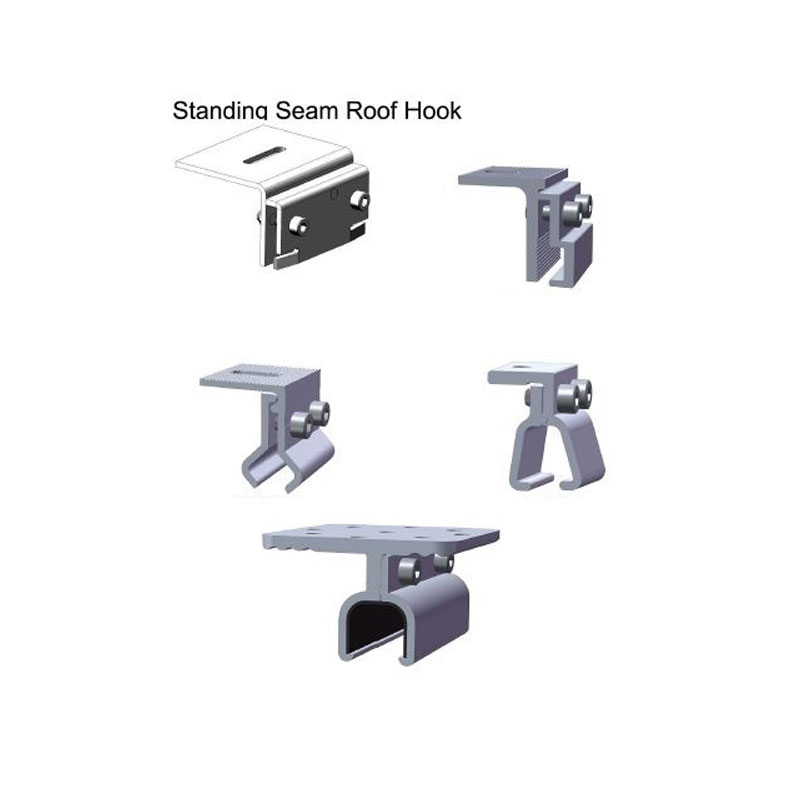

Solar Parts & Components carry one series of clamps for metal roof PV modules installation . Different roofing need customized clamps bond to metal roof surfaces . With 10 years manufacturing experience, we have a wide range of racking clamps, brackets, screws and whole kits for fixing on roof-tops . Feature of our metal roof brackets : – Suitable for large PV project array ; – Zero penetration, full-assembled packing ; – Cost effective, security, simply for operation ; – Extraordinarily versatile for corrugated / standing seam / klip-rib / nail strip / snap-lok metal roofing; – Application : PV module fixing, mounting conduit, signage installation, snow guard … Welcome to choose solar panel mounting structure from www.SolarPartsComponents.com , Make your every job successfully .
Metal Roof Mounting With Clamps
Size & Profile details for this Solar Metal Roof Clamps SPC-002 ?

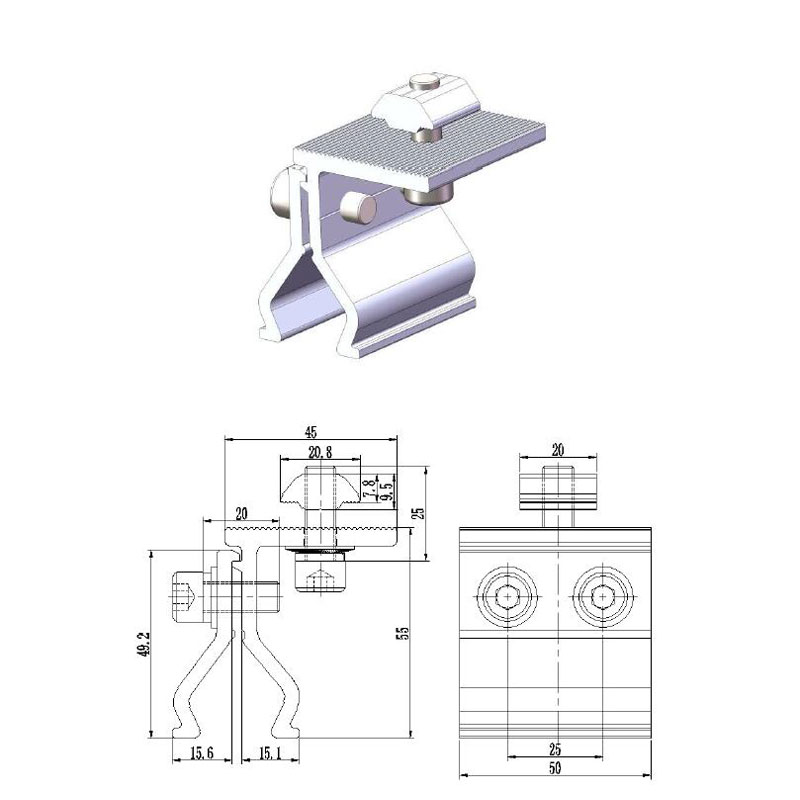

Drawing for this metal roof bracket SPC-002 , More details kindly check >>>
Do you need a solar stand seam metal roofing clamps SPC-CK-20 at a good price?
SPC is a professional manufacturer of aluminum alloy solar standing seam roof clamp factory, can provide a variety of standing seam solar clamp selection, you can choose according to the need.
More details kindly check >>>
