Solar panel mounting with ground screws
This solar mounting project locates in Toyoura, Hokkaido, Japan .
Ground power station is 10450.44 KWatts .
1. Solar Panel Details :
(1) Size (L*W*T) : 1675 mm × 997 mm × 38 mm / 77″ × 39 1/4″ × 1 1/2″ ;
(2) Power : 290 W per unit;
(3) Quantity : 36,036 units
(4) Type : Monocrystalline silicon solar panel ;
2. Mounting method :
(1) Material :Aluminum Ground Mounting System with ground screws ;
(2) Tilt Angle : 30° ;
3. PV modules array :
(1) 4 (rows) × 11 ( Columns) , 819 Tables.
(2) Installation Direction : Landscape ;
4. Wind Loading : 34 m / s ;
5. Snow Loading : 130 cm ;
6. Heigh distance from ground to PV modules : 130 mm .

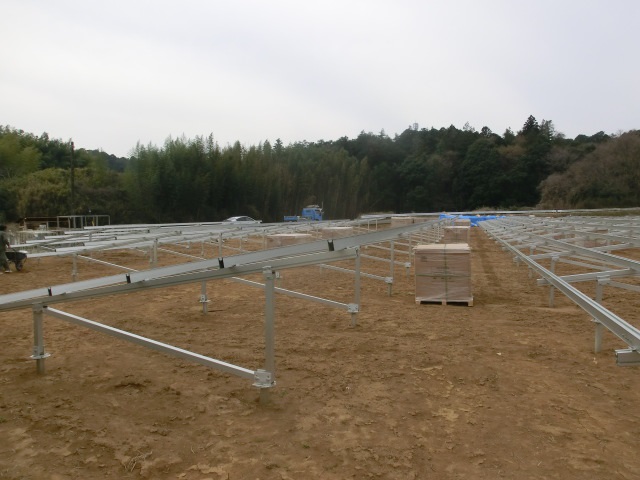

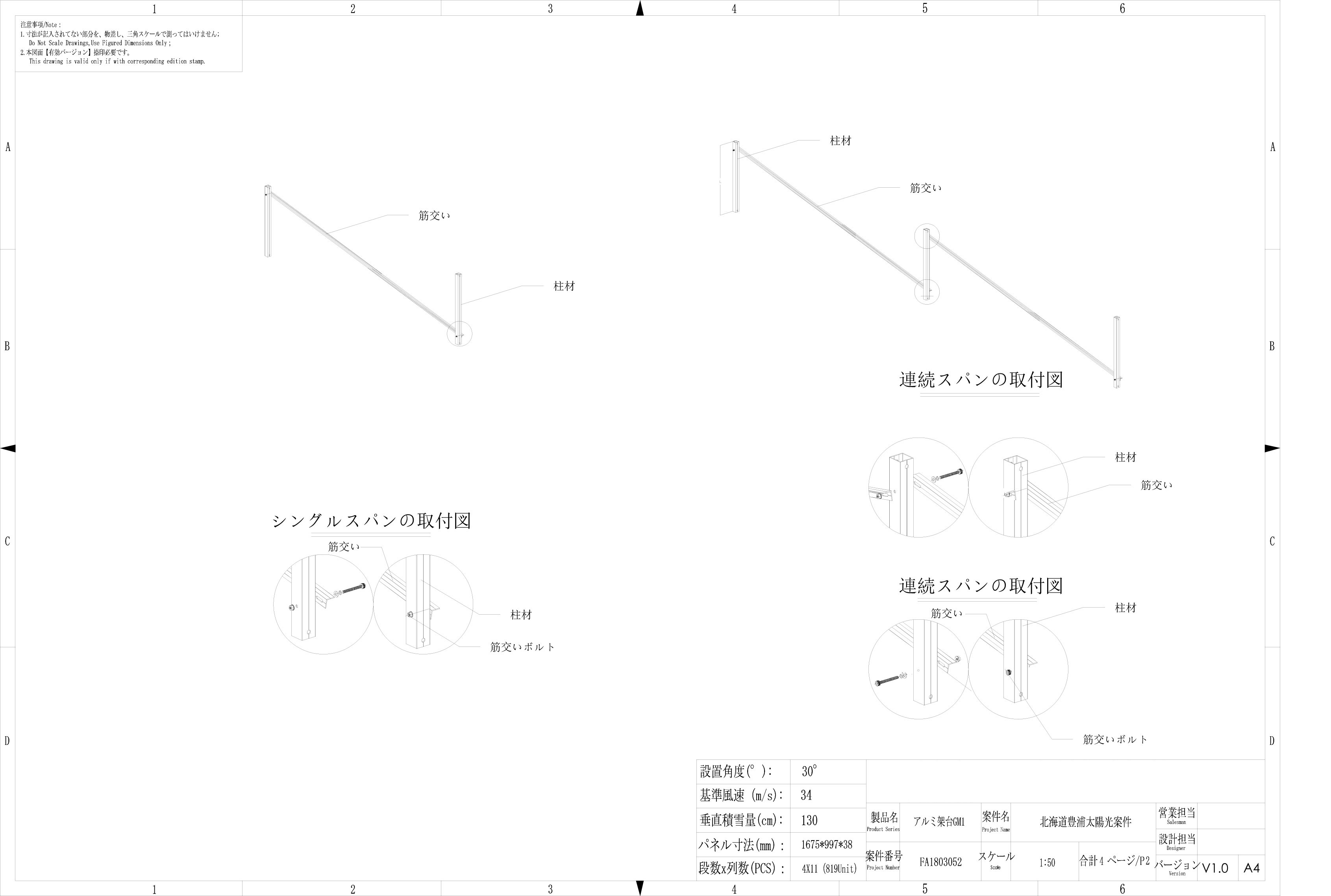

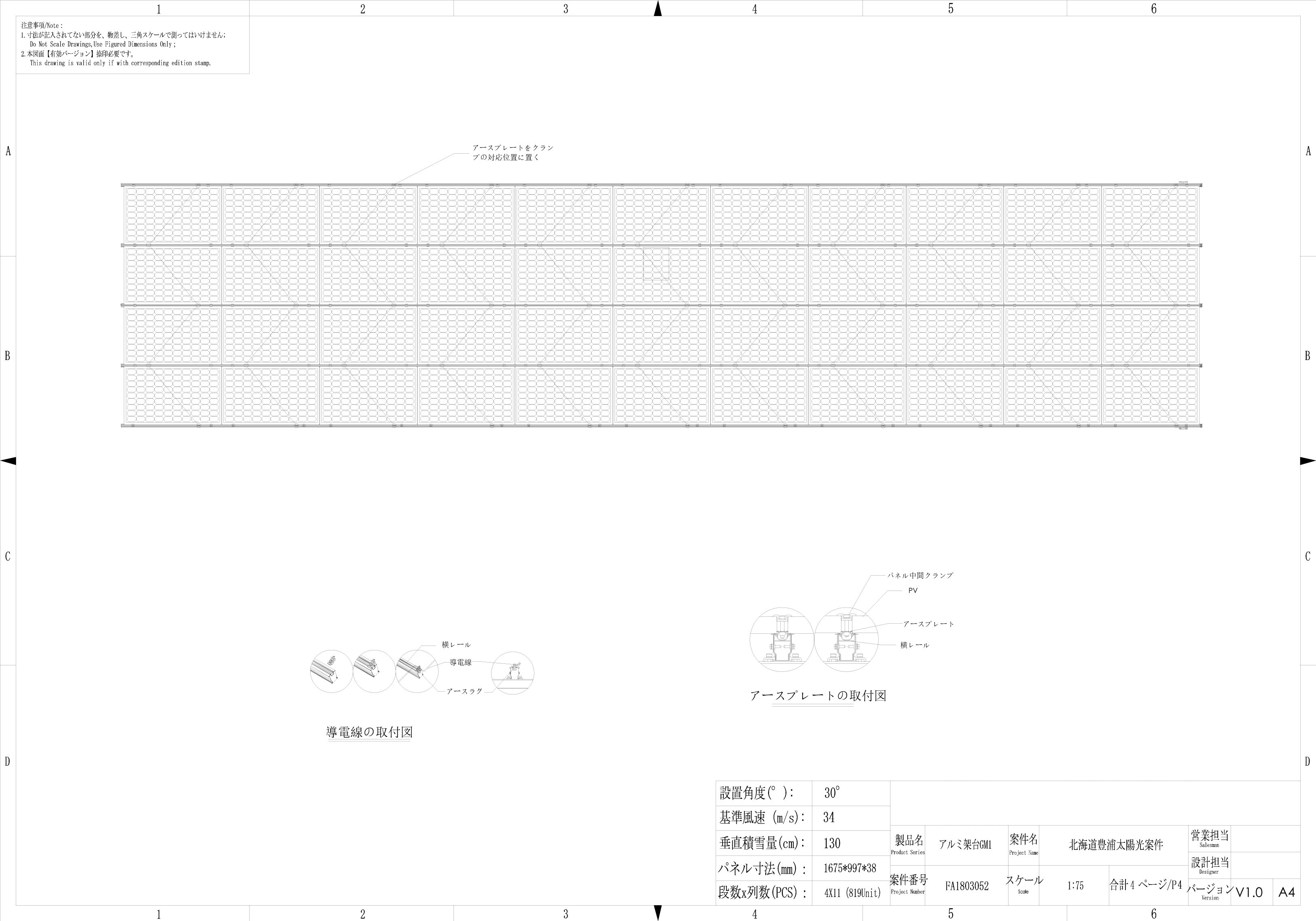

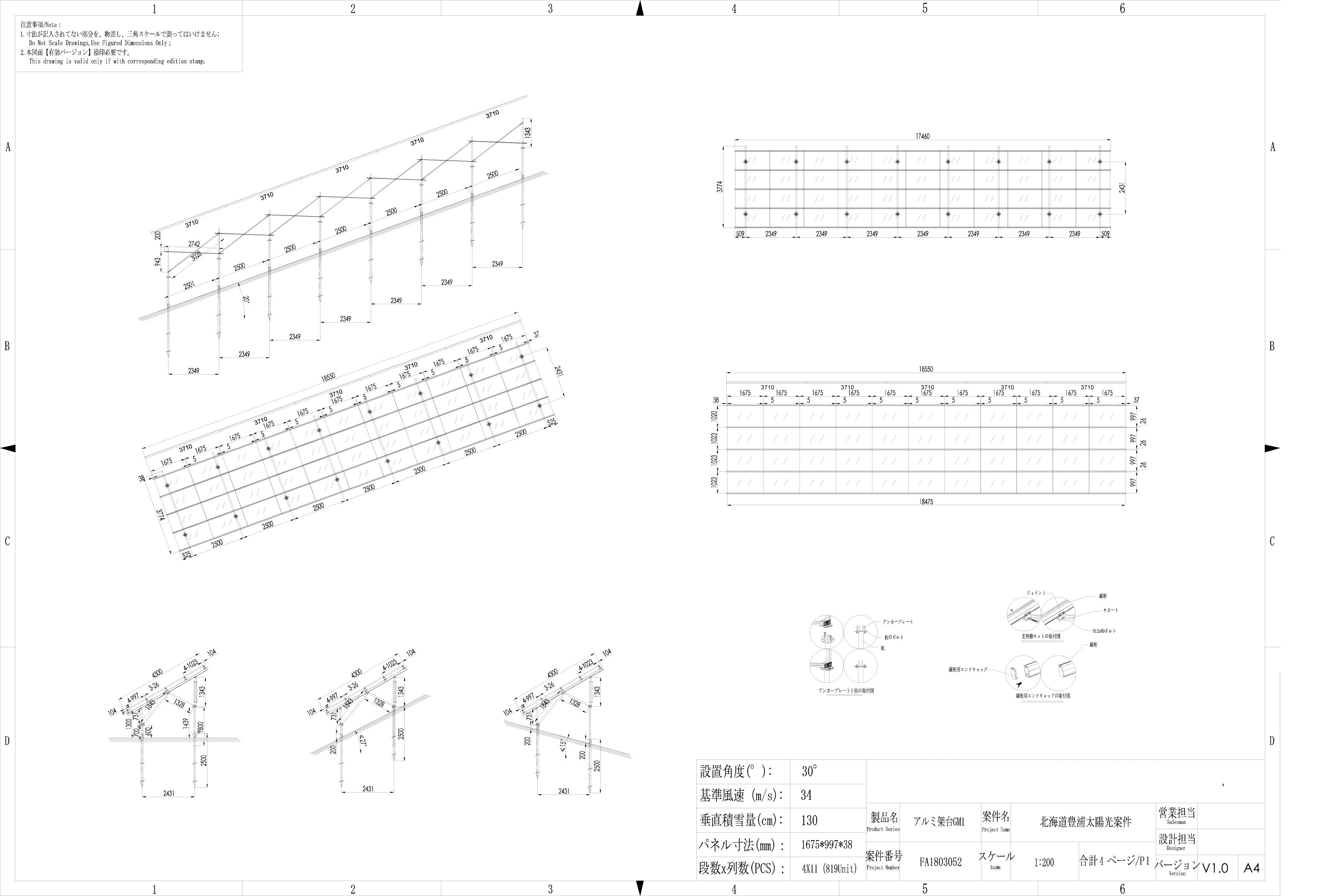

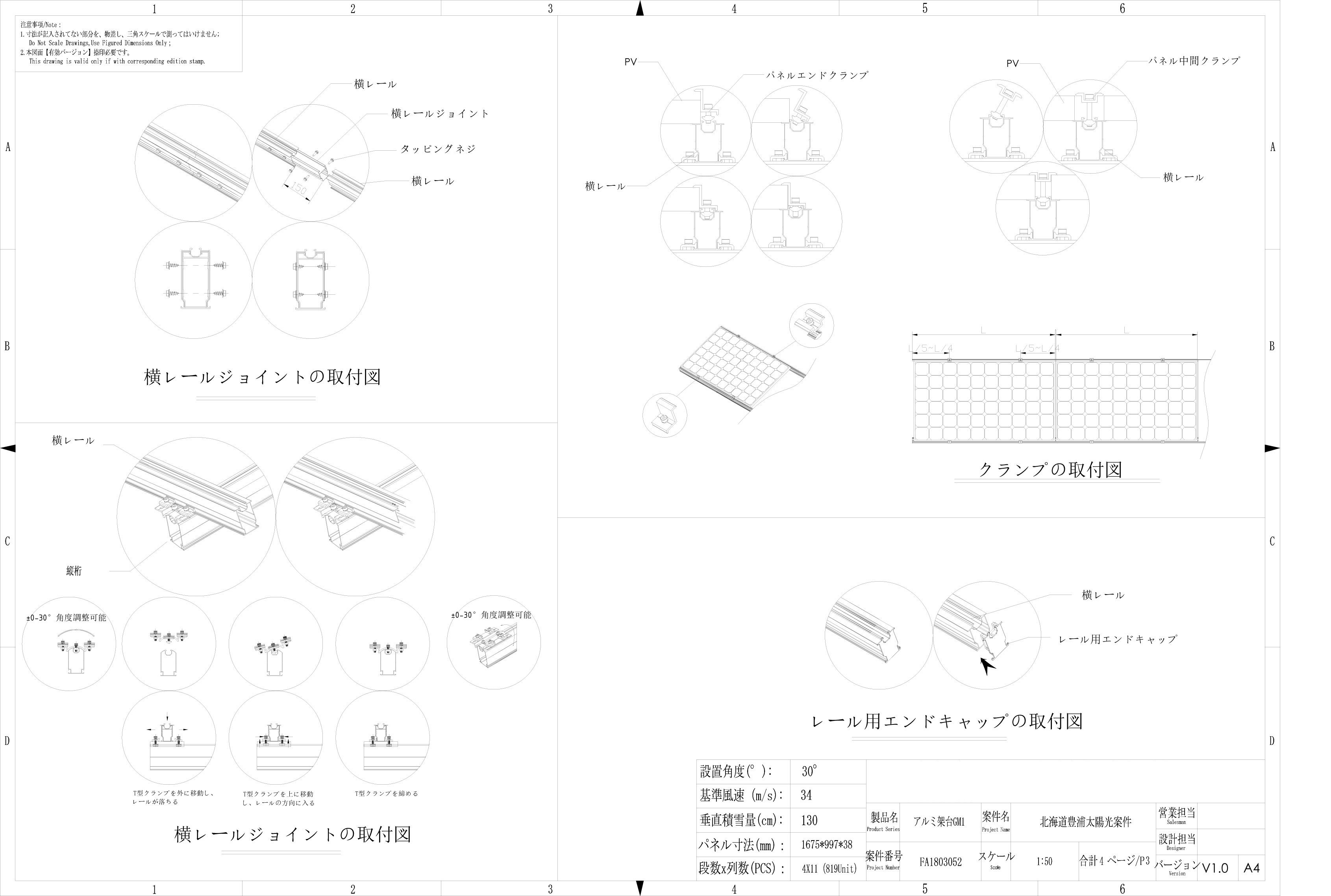

Our mounting design for this solar ground mounting project as following :
(1)
(2)
(3)
(4)
The Main Solar mounting parts , components and accessories as below :
(1) solar ground mounting racks for Hokkaido project
(2) solar panel mounting beam connector
(3) ground mounting Rails
(4) solar mounting Rail splice
(5) solar end clamps
(6) solar mid clamps
(7) – (8)
Flange adjustable ground screws for Hokkaido project
(9) – (10)
solar panel ground mounting brace
(11)
solar panel ground mounting hexagon bolts and nuts ( M10 x 90 )
(12) Aluminum Rail caps
Welcome get more details from www.SolarPartsComponents.com for this ground solar mounting system .
