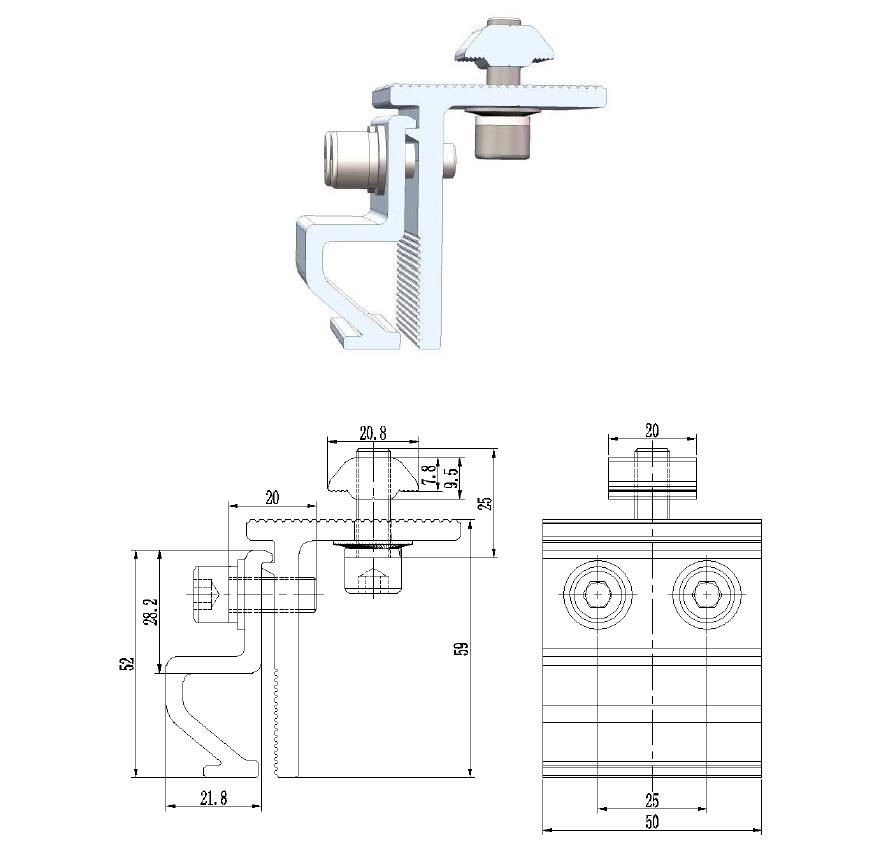

Drawing details for Solar Mounting Components – Standing Seam Metal Roof Clamps Drawing SPC-000

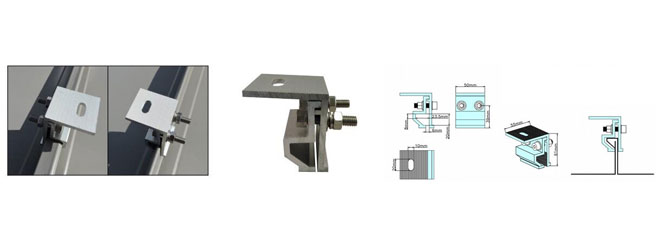

Solar alum clamps, super sturdy to support sandwich / tin / zinc / metal roofing , for corrugated or standing seam structure .
Item : Solar Metal Roof mounting Clamps ;
Finishing : Anodized;
Material : AL 6005-T5 ;
Total Size : 50 mm ( Length) × 72.6 mm ( Deepth) × 59 (Height) /
2″ (L) × 2 7/8″ (W) × 2 5/16″ (H) ;
Matched Bolts, Screws, Nuts, Accessories for this standing seam metal roof clamp SPC-000:
1) Inner Hex Head Allen Bolt M8 mm X 25 mm x 1 units ;
2) Inner Hex Head Allen Bolt M8 mm X 20 mm x 2 units ;
3) D8 plain washers ( SUS 304 ) x 2 units ;
4) D8 spring washer ( SUS 304 ) x 3 units ;
5) M8 Hexagon Nuts ( SUS 304 ) x 2 units ;
6) M8×13 Ribbed Lock washers (SUS304) x 1 unit .
7) Alum T sliding nut x 1 unit
Weight : 181 (g) / 0.40 (lb) ;
Packing : 170 pieces / carton ;
Packing Size : 540 mm ×220 mm × 200 mm /
2 1/4″ × 8 11/16″ × 7 7/8″
Our Solar Parts & Components QC Team
stictly test following parameters of this standing seam metal roof mounts for solar panels SPC-000 item before delivery:
Waterproof IP class , downward load test , uplifting test, snow and wind loading…
