Lower adjustable, Bottom Mounted Solar Panel Hooks for Curved / Roman / clay / Spanish tile roofing
Lower adjustable, Bottom Mounted Solar Panel Hooks for Curved / Roman / clay / Spanish tile roofing
180° Curved Tile Roof Hooks Arm – 130.5 mm ～ 166.5 mm Height, lower adjustable range (36 mm), with SUS 304 screws, nuts
and slots for Curved / Roman / Clay / Spanish tile roofing .
Model : SPC-Tile-Hooks-AC004-B01
Item : Solar Panel Roof mounting Hooks ;
Finishing : Sandblasting;
Material : SUS304 Stainless Steel;
Total Size : 150 mm ( Width) × 170 mm ( Deepth ) × 130.5 mm ～ 166.5 mm (Height) /
5 7/8″ (W) × 6 11/16″ (D) × 5 1/8″ ～ 6 9/16″ (H) ;
Bottom End to Top End : 130.5 mm ～ 166.5 mm (Height) / 5 1/8″ ～ 6 9/16″ ;
Thickness : 5 mm / 1/5″ ;
Rail Slot Size : 9 mm × 47 mm / 3/8″ ×1 7/8″ ;

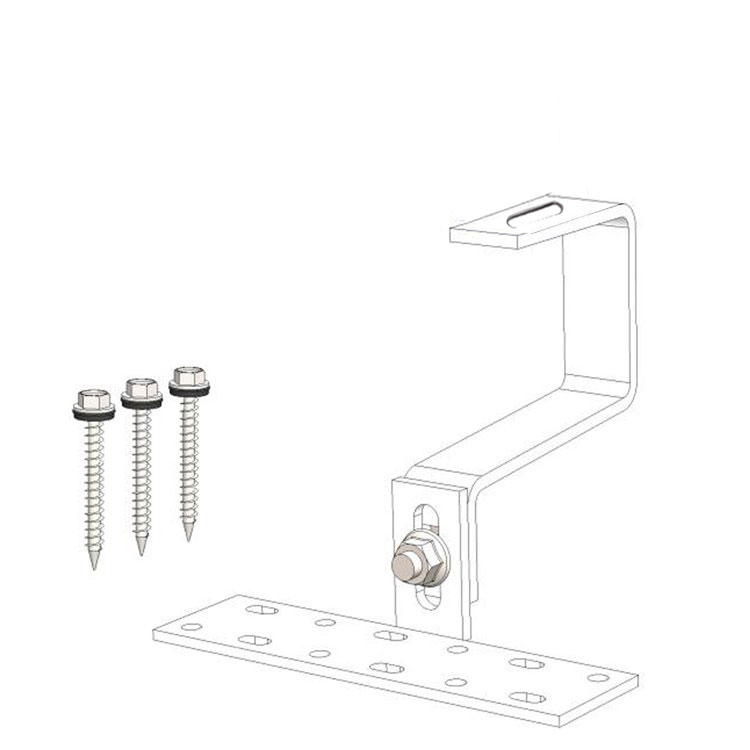

Matched Bolts & Nuts Sizes:
1) SUS 304 Hex Bolt M8 mm × 25 mm x 1 unit;
2) M8 x 13 Ribbed Lock washers ( SUS304 ) x 1 unit;
3) D8 spring SUS 304 washer x 1 units ;
4) Aluminum M8 T Sliding Nut x1 unit;
Base Plate Size : 180 mm X 50 mm X 60 mm ( 7 1/16″ × 1 15/16″ × 2 3/8″ ) ;
Matched Bolt & Nut for plate and lower arm joint:
(1) SUS304 stainless steel Carriage bolt M10 mm X 25 mm x 1 unit ;
(2) SUS304 stainless steel hex flange nut x 1 unit ;
Mounting Screw Slots Size : 7.5mm X 13.5mm ( 6 holes ) & Φ 7.5 mm ( 6 holes ) Cross Arrangement ;
Matched Screw Size: Hex Washer Head solar mounting screws 6.3 mm (1/4″) x 80 mm ( 3 1/4” ) x 3 units ;
Weight : 851 (g) / 1.88 (lb) ;
Packing : 50 pieces / carton ;
Packing Size : 540 mm ×220 mm × 200 mm /
21 1/4″ × 8 11/16″ × 7 7/8″

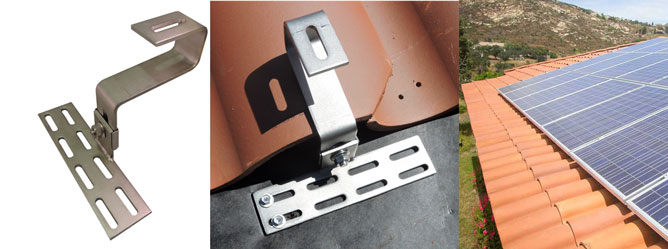

This fixed Hook SPC-Tile-Hooks-AC004-B01 is perfect for installing on Curved /Clay / Roman / Spanish tile roofing surfaces .
Our Solar Parts & Components QC Team
stictly test following parameters of this tile roof mounting hooks for solar panels SPC-Tile-Hooks-AC004-B01 item before delivery:
Waterproof IP class , downward load test , uplifting test, snow and wind loading…
More models of our solar panel roof hooks, clamps & brackets are available in www.SolarPartsComponents.com
