Size & Profile for one side mount trapezoid metal roof clamp

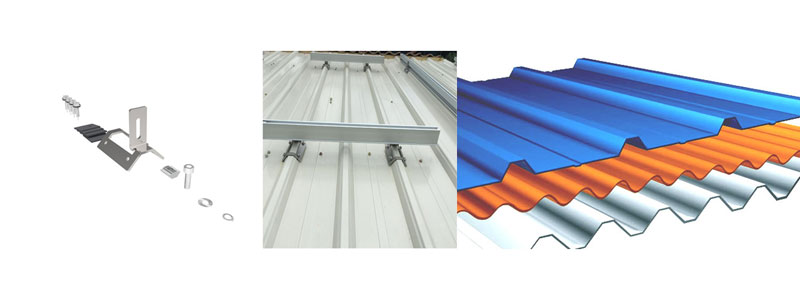

This solar mounting clamp is specially designed for trapezoidal and corrugated metal roofs .
Since there are many types, dimensions, variations for metal roofs.
We choose the most typical model for your solar project , do examine our drawing size details .
Make sure that your tin roof ridges, grooves or pattern are perfectly matched .
Samples testing is a very good method to prevent unmatched incident occurring .
We strongly recommend buying samples before large purchase .
It’s fixed to roofing panels directly .
Using rubber pads and sealant for waterproofing .
EPDM gasket is a must for sandwich roof mounting, plus compatible adhesive and then attach to metal roof .
Anti-corrosive and water-resistant should be guaranteed for trapezoid rooofing mounts .
Four pieces of SUS 304 screws penetrate into trapezoid / currugated roof panels , so that clamps can support whole solar mounting system .

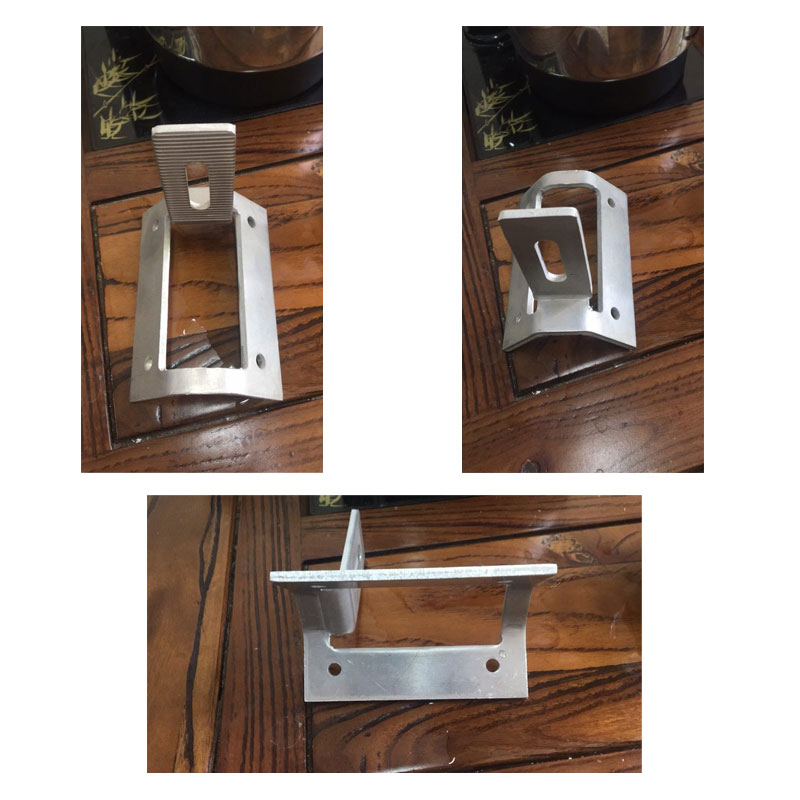

Our design for this mounting clamp is side mounted .
We strictly abey sizes and thickness in our drawing during producing , our design system is based on local wind and snow national standard
.
We deny to use lighter gauge metal materials, because they are not strong enough .
Falling protecting anchors should be used during install solar systems on pitched trapezoid zinc metal roofing .
Be more attention and patience , we bless each side mounting trapezoid metal roof projects successfully !
