This is one of our project detail for our ” N ” type solar ground mounting system .
The PV modules panel can be adjusted tilt from 5 degree to 45 degree .

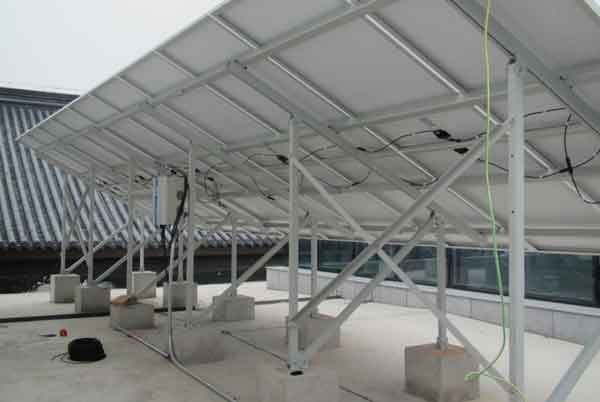

This case sample for ground mount structure ” N ” construction with solar panels in portrait array :
1. The size of the solar panels will be approximately 1640 mm X 992 mm X 40 mm ;
2. Total of eight monocrystal solar panels, sixty cells ;
3. Each panel is 280 Watts ;
4. Panels to be placed two up / vertical and ten accross / horizontal
5. There is no snow issue with strong winds in our installation site. Only during storms we have strong winds. So maybe use 40 – 50 for wind load in design is
acceptable .
6. Concrete base option ;
7. Lowest height from the ground to be approximately 24 inches ;
8. Goes with twenty-five degree angle;
9. The location is close to the ocean, salt spray testing should be considered .

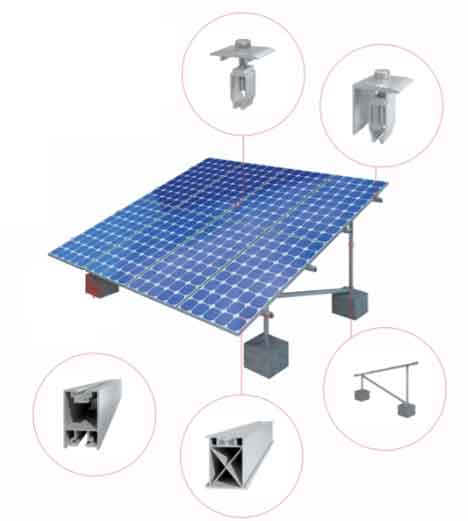

More advantanges of our “N” type solar ground mounting system :
(1) Stable & safety in structrual mechanics ;
(2) Fits for flat ground places such as backyards, patio , grassland , open field or flat roof top …

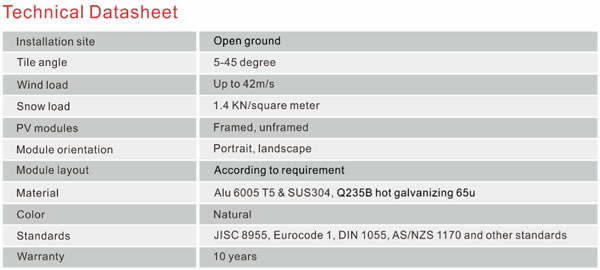

(3) Pure ALU 6005 T5 & 304 stainless steel material guarantee , anti-corrosive / long time / reliable .
(4) Bearing :1.4 KN / Square Meter for Snow loading / up to 42 Meter / Second for Wind Loading design ;
The case in this N type solar ground mounting systems , it’s convenient and quick to install , zero cost for maintenance .
