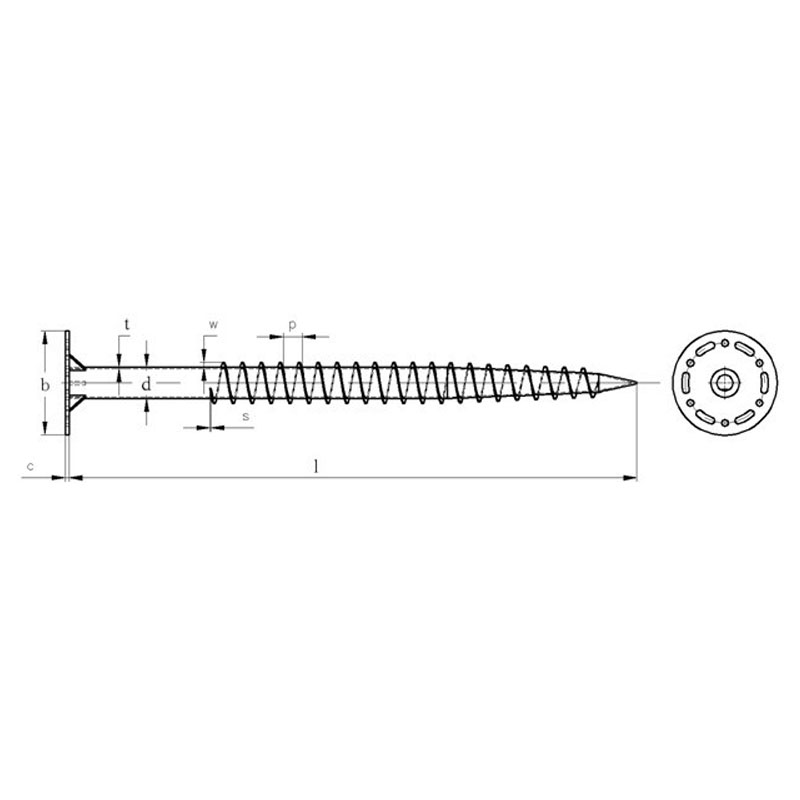

Solar helical piles drawing, sizes, profile for ground solar panel mounting . (SPC-solar-screws-A10)

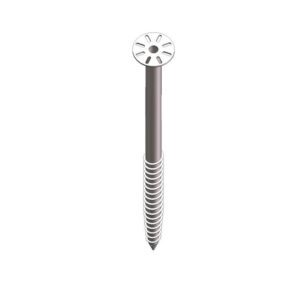

Solar panel ground screws SPC-solar-screws-A10 with Q235 flange
Model : SPC-solar-screws-A10
Item : fixed flange solar ground anchors;
Finishing : Galvanized ;
Material : Q235 carbon steel ;
Packing : 150 pieces / crate ;
Sizes and Weight depends on “L” length option:
No. | Part. No. | L Size ( Height ) | Weight (KGS / Piece) |
1 | A10-1200 | 1200 mm | 11.85 kgs |
2 | A10-1400 | 1400 mm | 12.45 kgs |
3 | A10-1600 | 1600 mm | 13.75 kgs |
4 | A10-1800 | 1800 mm | 14.85 kgs |
5 | A10-2000 | 2000 mm | 15.78 kgs |
6 | A10-2200 | 2500 mm | 16.95 kgs |
7 | A10-2500 | 2500 mm | 18.87 kgs |
8 | A10-2800 | 2800 mm | 20.35 kgs |
This Solar panel helical screw with fixed flange Model SPC-solar-screws-A10 can offer strong and stable base for ground mounting
installation .
Our Solar Parts & Components QC Team stictly test quality of this SPC-solar-screws-A10 item before delivery.
More models of our solar mounting screws / pilers / anchors are available in www.SolarPartsComponents.com
